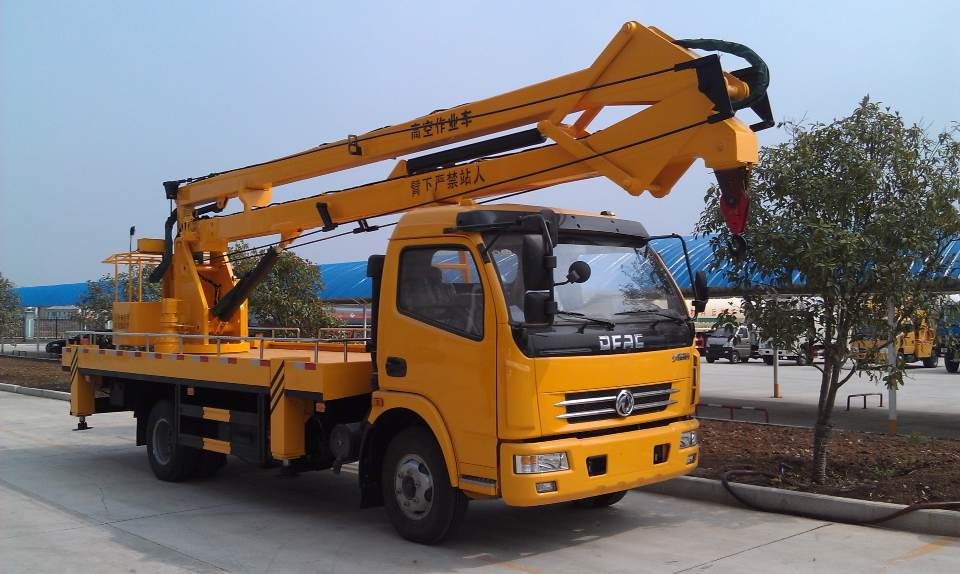

DFAC Aerial Operation Truck 18m

Basic information◆

Vehicle name:

Aerial operation truck

Chassis model:

EQ1080SJ3CDF

Overall dimension:

8020×2200×3100mm

Cabin:

Single row,width 2030mm,

A/C,central lock,electric window,with radio,safety belt,3 passengers allowable

Drive type:

4X2

Curb weight:

6560Kg

Load capacity of F/R axles:

2700/5500Kg

Max. vehicle speed:

105kw/h

Engine ◆

Model:

ISF3.8s5154 (Cummins)

Description:

In-line,4 cylinders,4 strokes,

water cooled,turbo charged,

high pressure common rail

Fuel type:

Diesel

Horsepower:

115kw/156HP

Displacement:

3760mL

Emission level:

Euro 5

Parameter of chassis ◆

Wheel base:

3800mm

Number of leaf spring:

6/6+5

Number of tyre:

6+1pcs

Specification of tyre:

215/75R17.5 16PR

Front/rear track:

1569/1462mm

Steering type:

LHD,power steering

Brake system:

Pneumatic brake with ABS

Gearbox:

Manual,6 forward ＆ 1 reverse gears

Arm specification ◆

Material thickness:

3-5mm

Boom quantity:

3pcs

Turn angle:

±360°continuous

Outrigger type:

H

Hanging basket ◆

Rated load:

200Kg

Hydro-static leveling:

Provided

L X W X H:

1080X620X1100mm

Safety belt:

Provided

Hydraulic System ◆

Cylinder

hydraulic valves:

With cylinder lock function

Electronic hydraulic proportional valve:

Provided

Emergency power source:

Provided

Speed control:

Provided

Anti-skid pattern steel plate:

Provided

Outrigger:

Individually controlled

Interlock:

Provided

Dangerous conditions alarm:

Provided

Max.hoisting weight:

1000KG

Max.working radius:

7.5m

Max.hoisting height:

8.3m

Max. working height:

18m

Remark:

Insulated fiberglass basket (Working voltage level 400V) provided
