EQ1185LJ9CDE
DFAC
8705909990

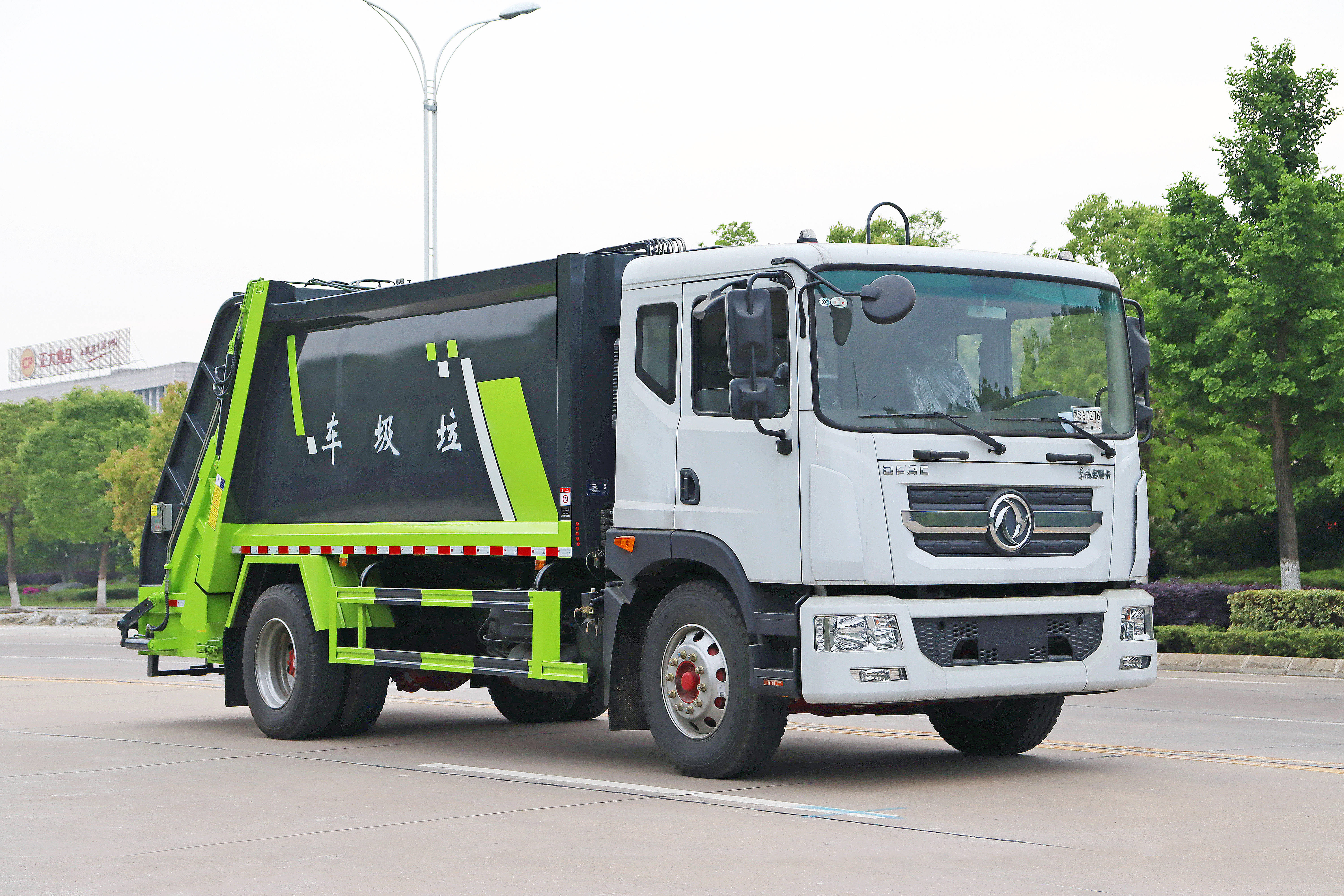

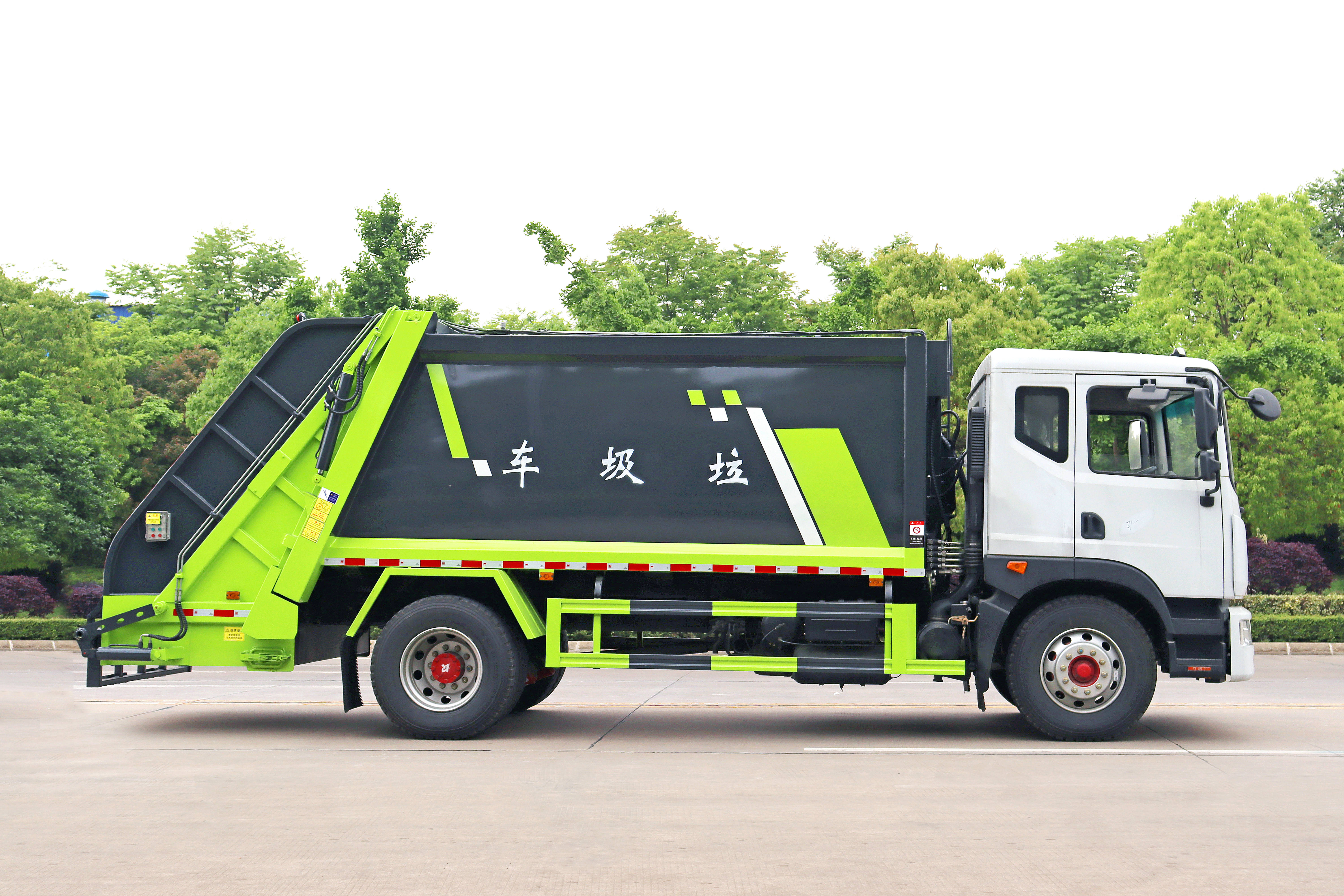

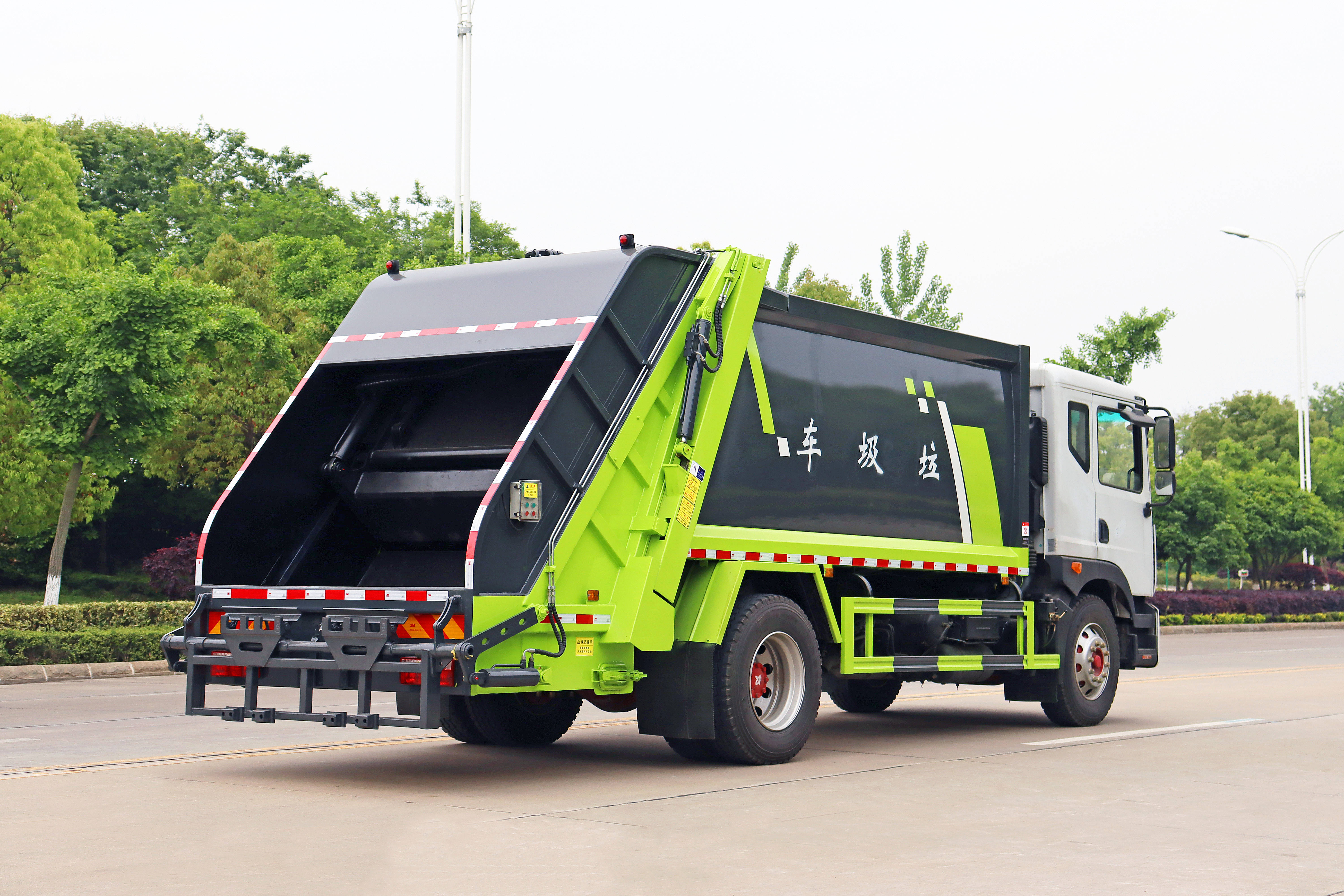

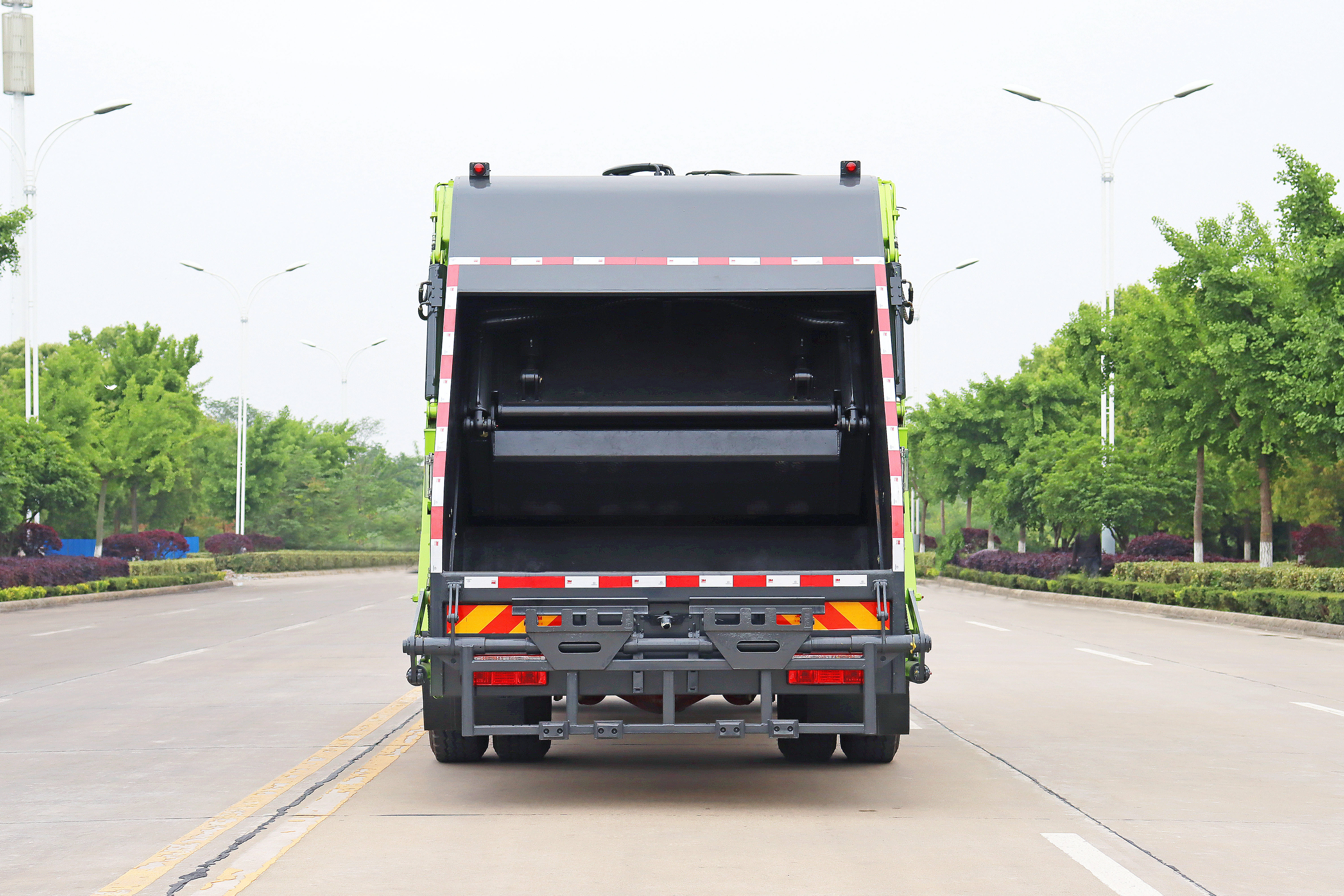

Vehicle name | Garbage compactor truck | Vehicle model | EQ1185LJ9CDE | ||
Weight parameter | Curb weight （kg） | 9420 | Overall dimension (mm) | 8370×2550×3250 | |
Max.total weight （kg） | 18000 | Wheel base (mm) | 3950 | ||
Engine | Model | YCS04200-68 | Description | 4 cylinders,in line, with turbo,intercooled, Common-rail,direct injection,SCR,water cooling,diesel engine | |
Displacement(ml) | 4160 | Max.torque(N·m) | 720@1200-1600rpm | ||
Max.output power （KW/HP） | 147/200 | Manufacturer | Guangxi Yuchai Machinery Group Co., Ltd. | ||
Performance | Max. vehicle speed(km/h) | 89 | Running angle(°) | Approach angle | 19 |
F/R overhang(mm) | 1260/2435 | Departure angle | 12 | ||
Emission standard | Euro 6 | Drive type | 4X2 | ||

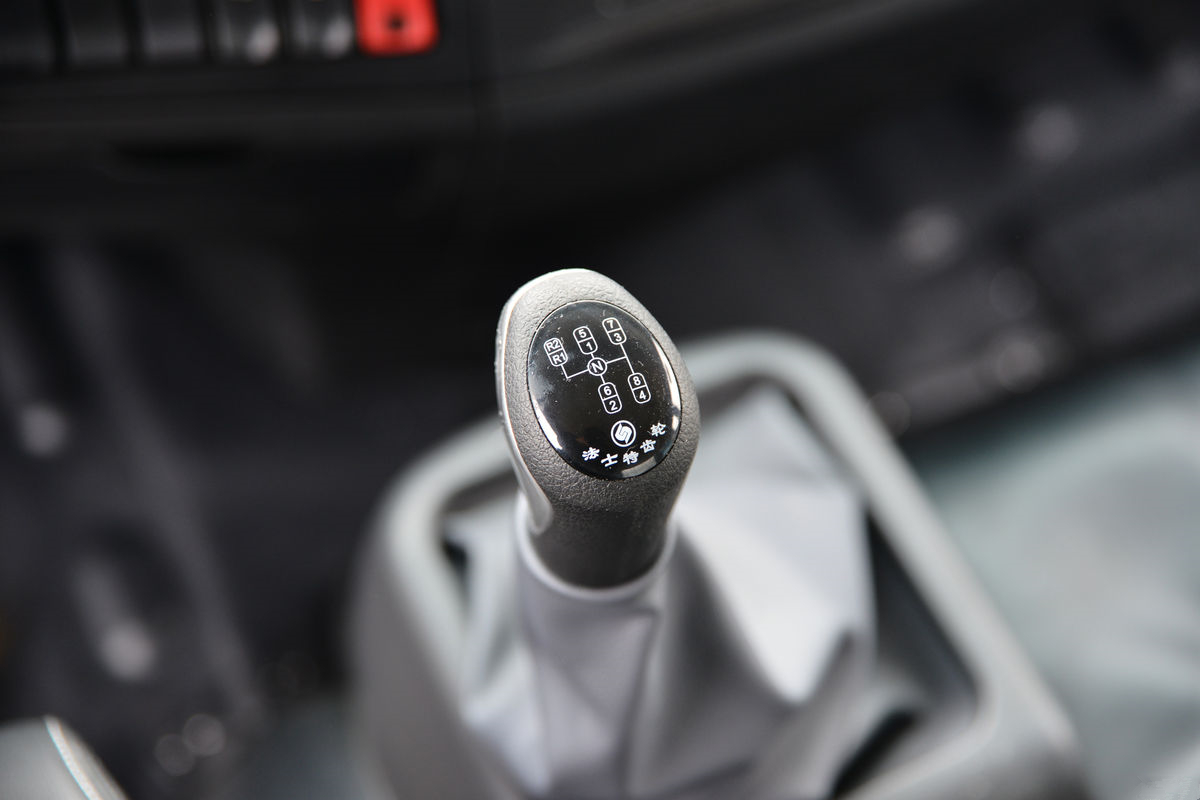

Description of gearbox | Manual,8 forward ＆ 2 reverse gears | Turnable system for cabin | Provided | ||
Clutch | Diaphragm spring clutch | Brake system | Pneumatic brake with ABS | ||
F/R track(mm) | 1862/1806 | Specification of tyre | 275/80R22.5 18PR | ||
Frame | Stamping riveted structure | Number of leaf spring | 8/10+7 | ||

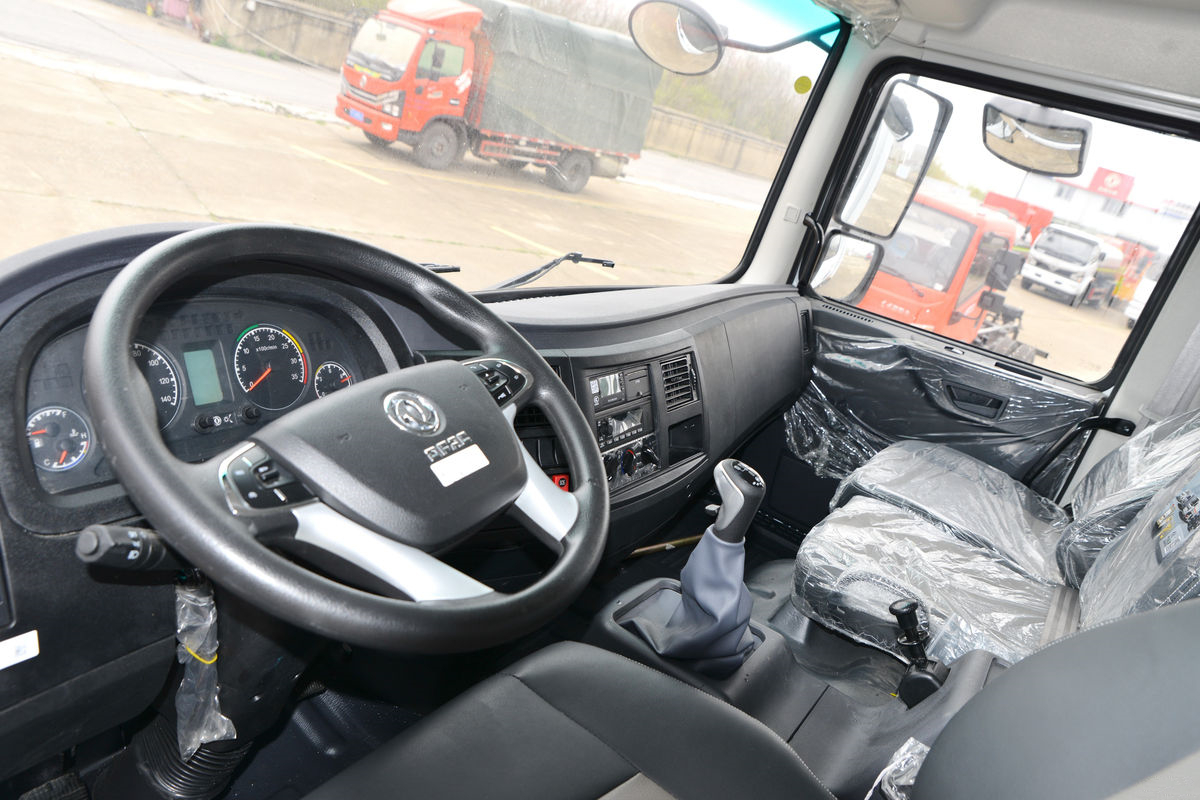

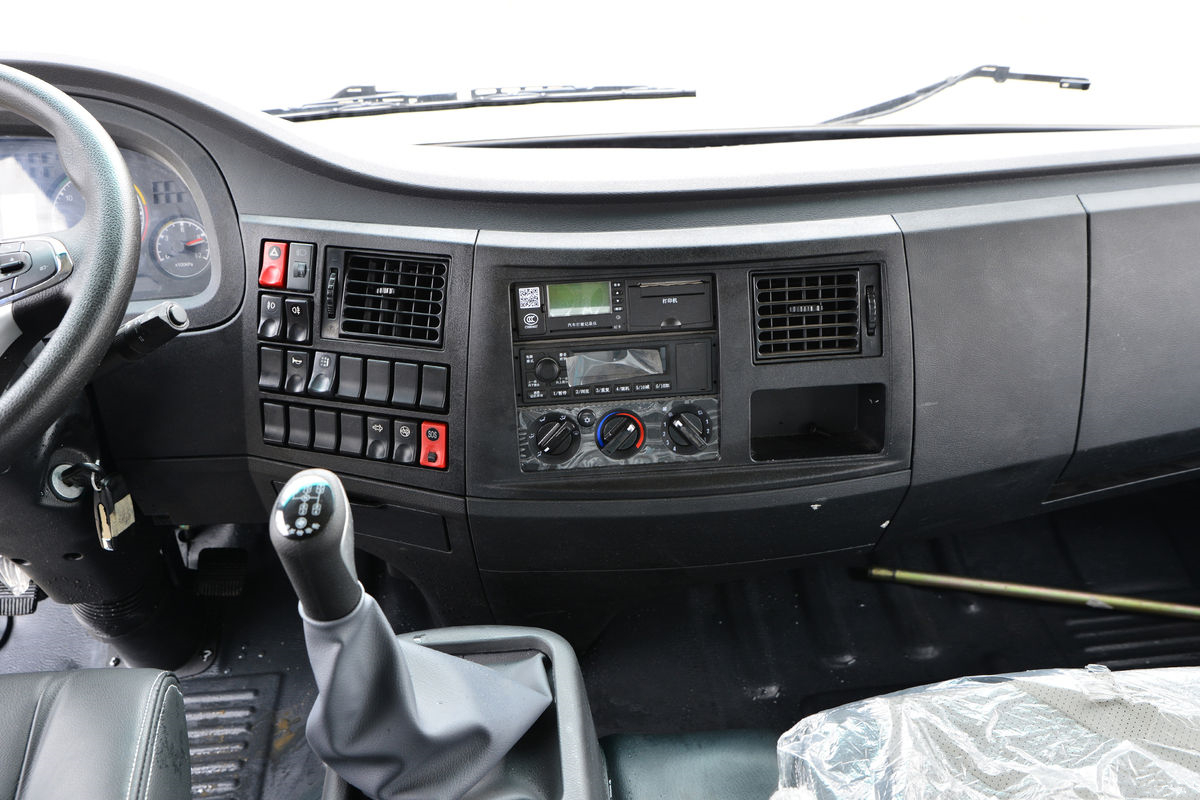

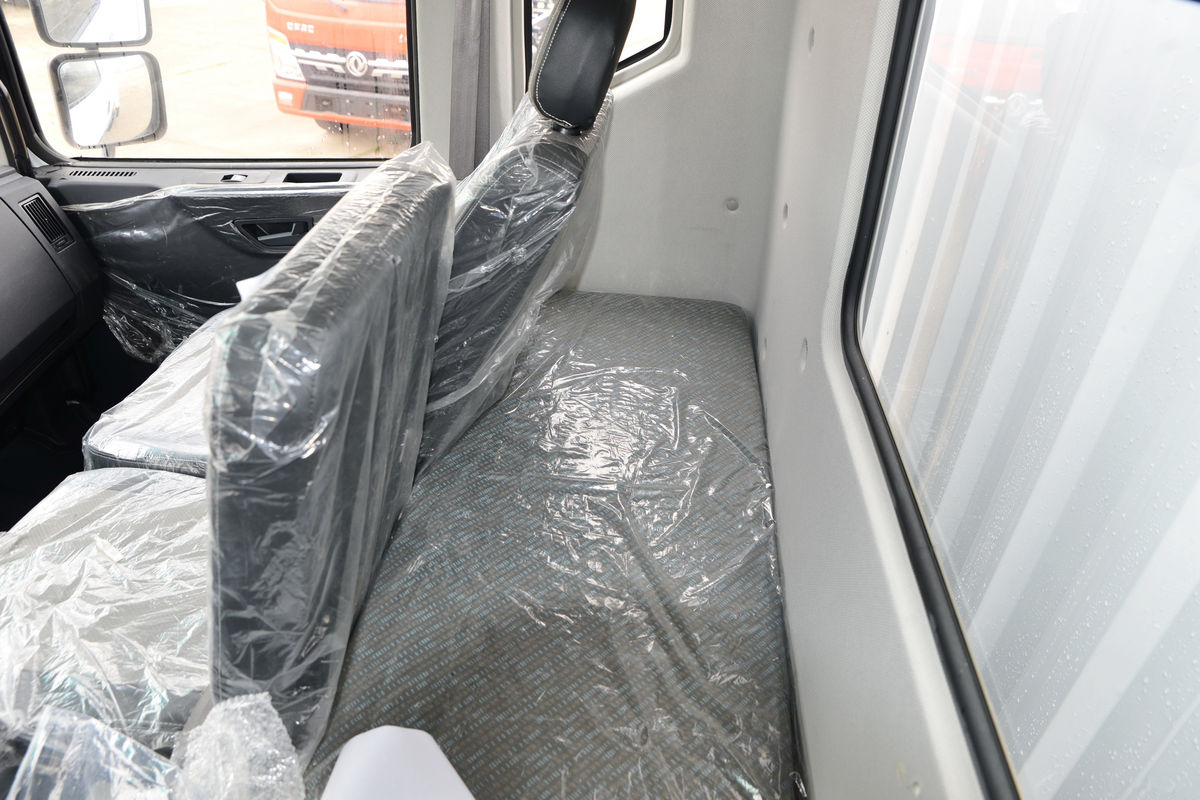

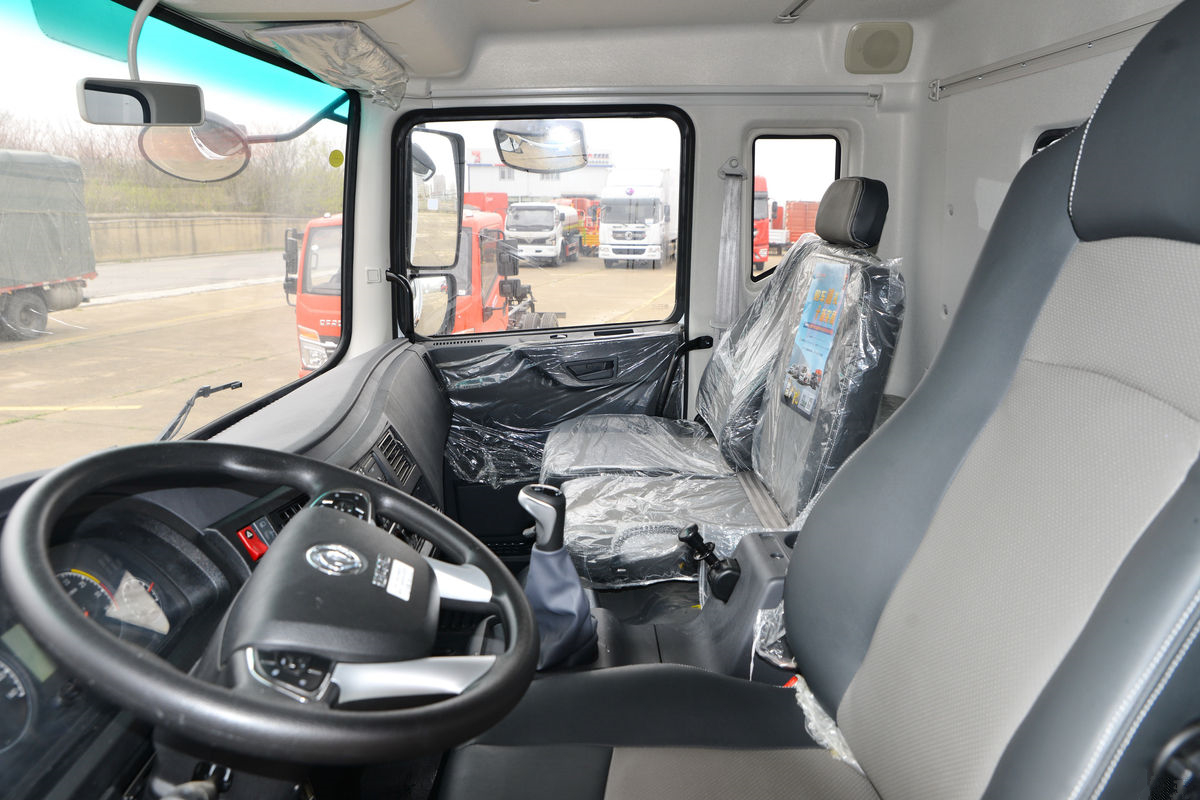

Cab | One and half rows,with single sleeper,3 passengers allowable,luxury configuration, electric window,A/C,USB interface,central lock | Electric system | 24V | ||
Power steering | Provided,LHD | Fuel tank | 300L | ||
Capacity of garbage box | 10CBM | Material of garbage box | Superior quality steel, Q355,thickness 4mm | ||
Loading cycle time | 12-30s | Refuse discharge time | ≤30s | ||
Stuffing lift angle | ≥95° | Hydraulic oil pressure | 19.6Mpa | ||
Compression ratio | 1/3~1/2 | Type of refuse box | Overturning bucket | ||
