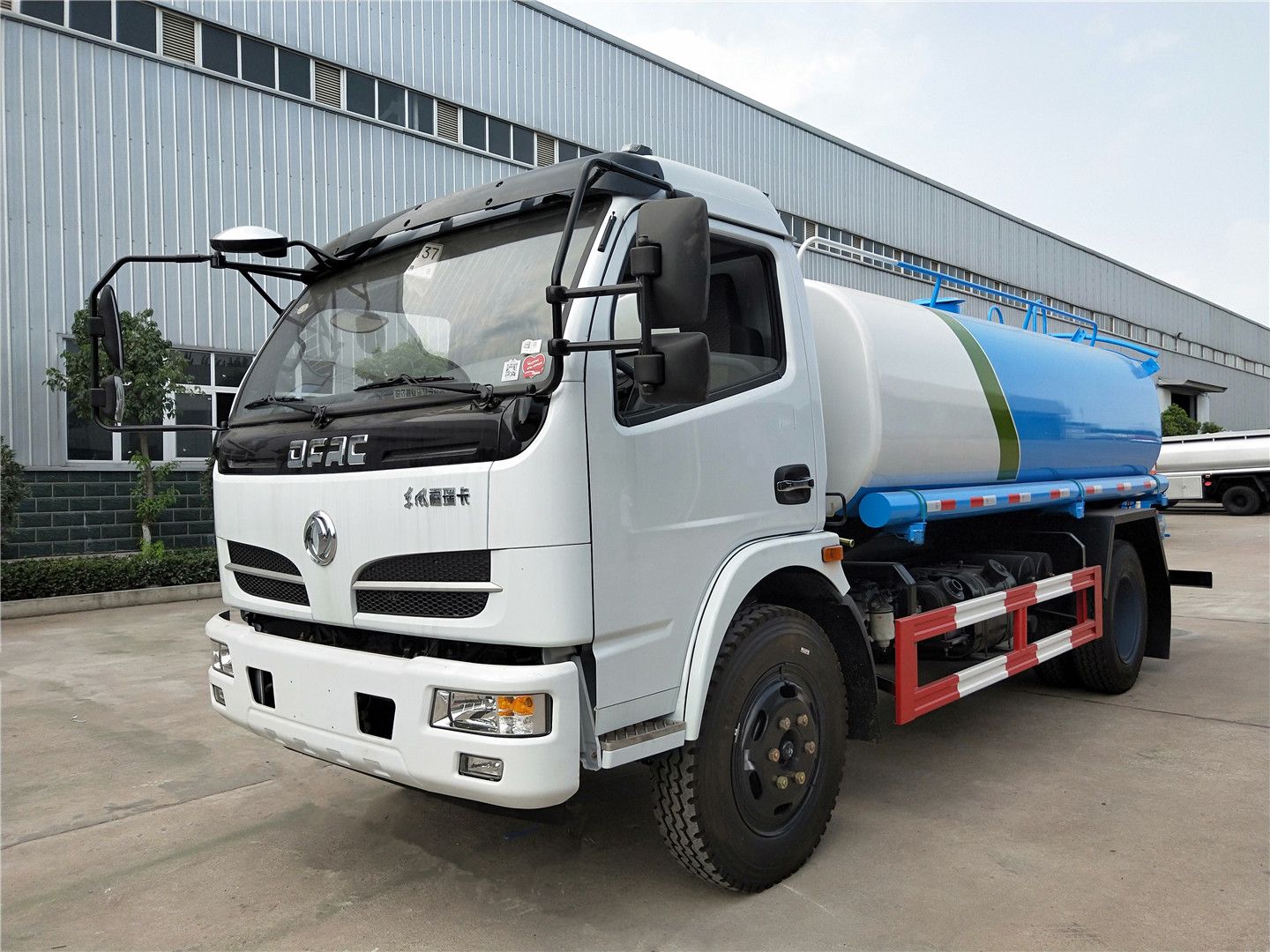

DFAC Water Tanker Truck 5000L

Vehicle name

Water tanker truck

Vehicle model

EQ1075SJ3CDF

Weight parameter

Curb weight

（kg）

3200

Overall dimension (mm)

5990×2050×2500

Max.total weight

（kg）

8200

Water tanker capacity(Liter)

5,000

Engine

Model

Q25D-162E60

Description

4 cylinders,in line,turbocharged,

water-cooled,

inter-cooled,diesel engine

Displacement(ml)

2496

Max.torque(N·m)

450@1600-2000rpm

Max.output power

（KW/HP）

116/162

Manufacturer

Anhui Quanchai Engine Co.,Ltd.

Performance

Max. vehicle speed(km/h)

110

Running

angle(°)

Approach angle

20

F/R overhang(mm)

 1115/1575

Departure angle

13

Emission standard

Euro 6

Drive type

4X2

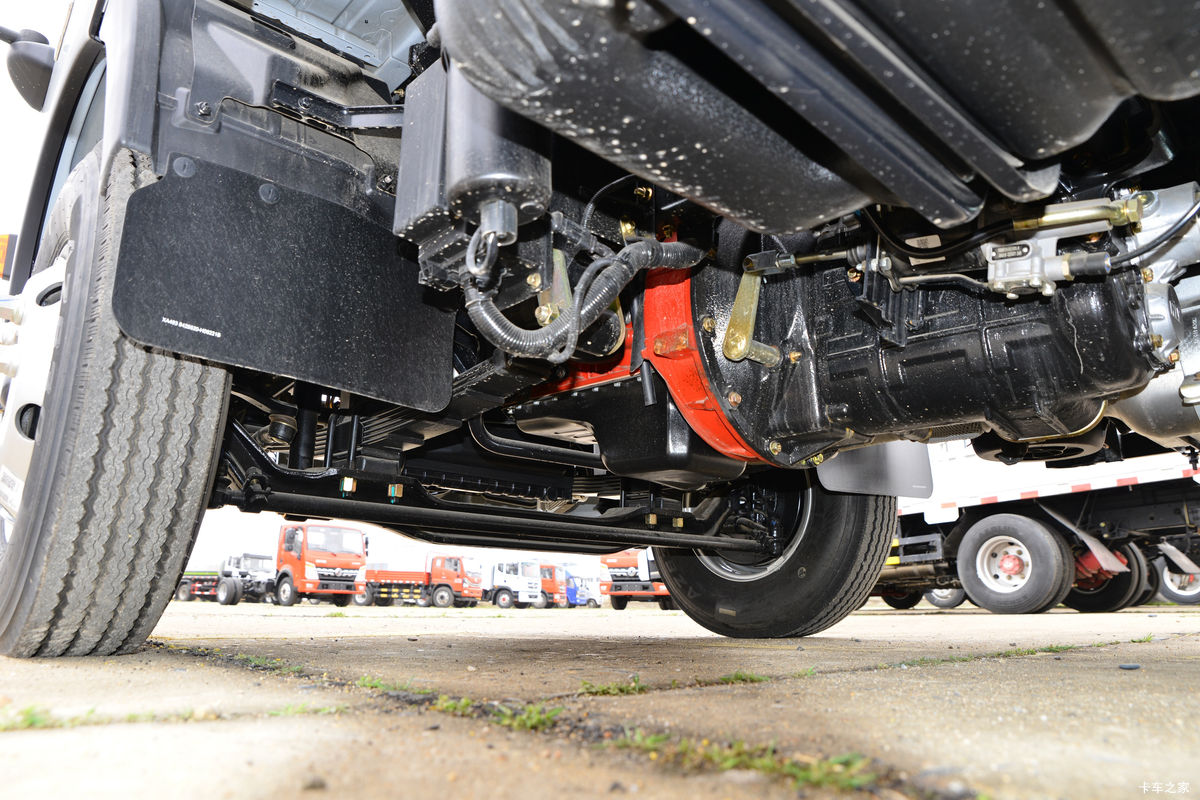

Description of gearbox

Manual,8 forward ＆ 1 reverse gears

Turnable system for cabin

Provided

Clutch

Diaphragm spring clutch

Brake system

Air brake

F/R axle load capacity(Kgs)

2200/6000

Specification of tyre

7.00R16

Frame

Stamping riveted structure

Number of leaf spring

8/10+7

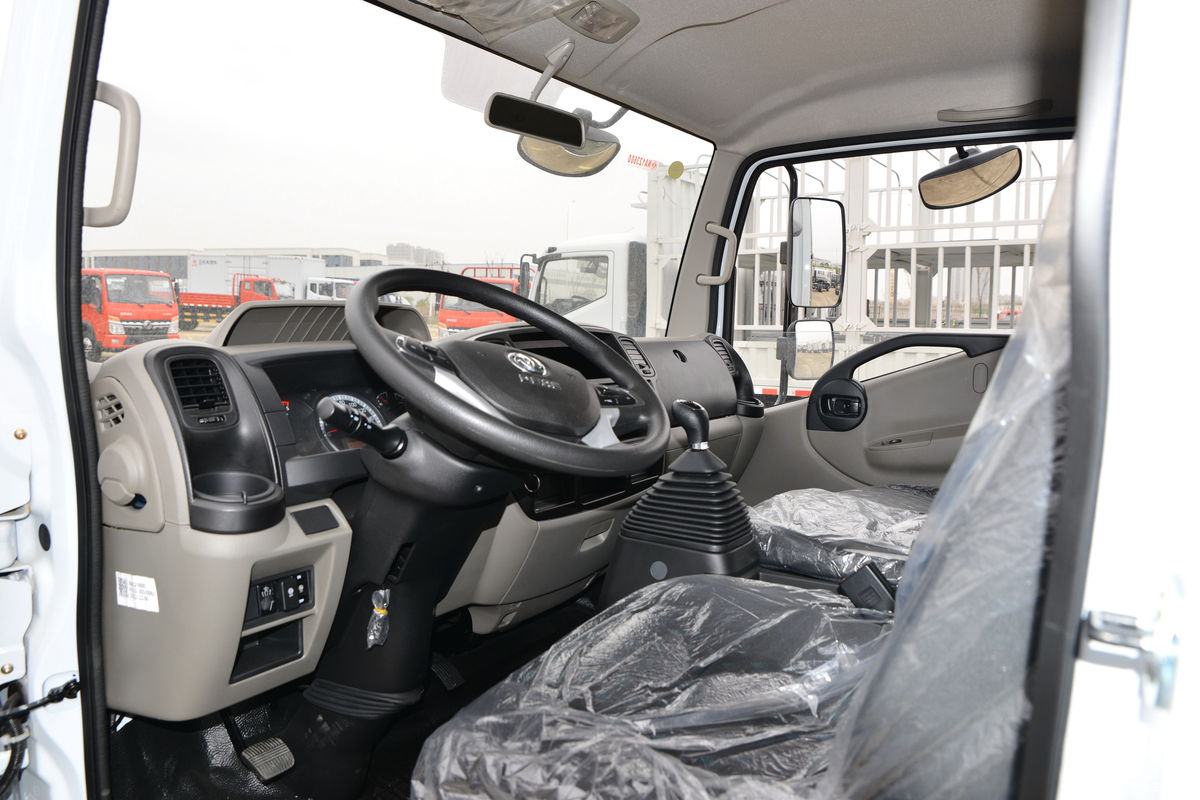

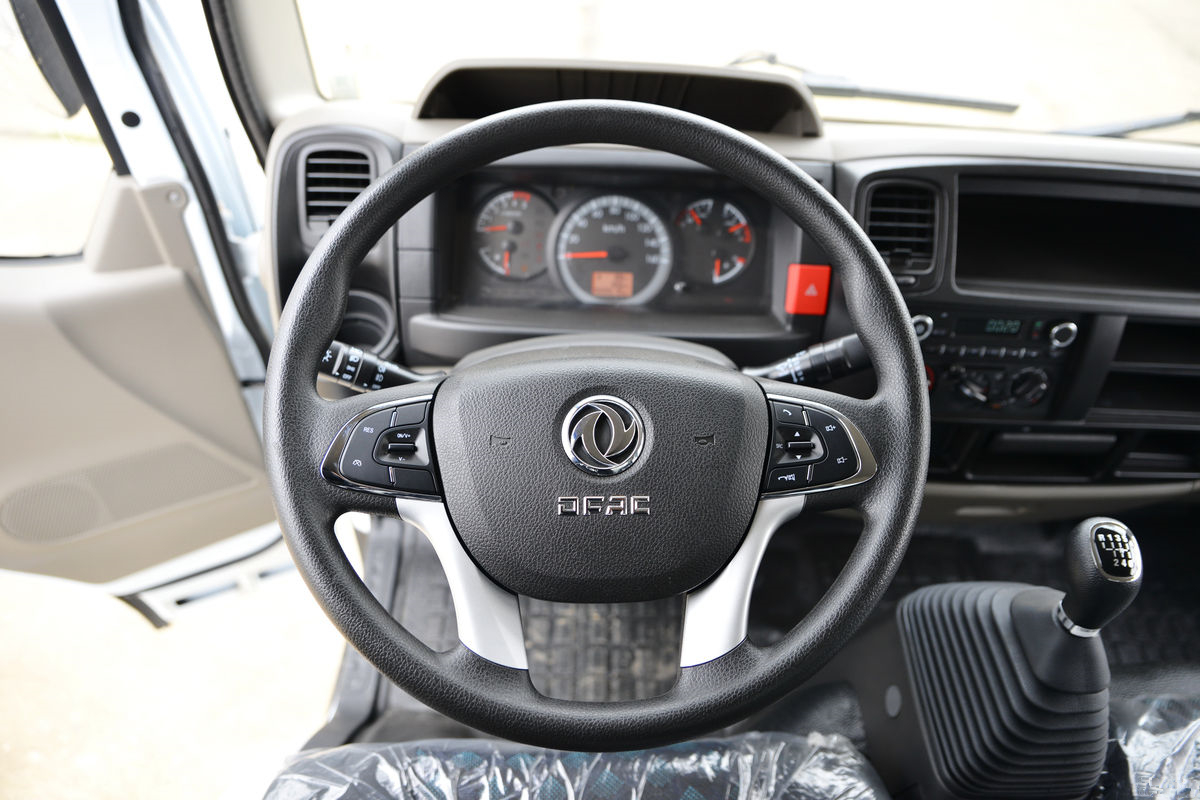

Cab

New version T17,single row cab,luxury configuration,power steering,A/C,central lock,electric windows,3 passengers allowable

Electric system

24V

Material of tanker

Stainless steel 304 or carbon steel Q235

PTO with stainless steel water pump

Optional
