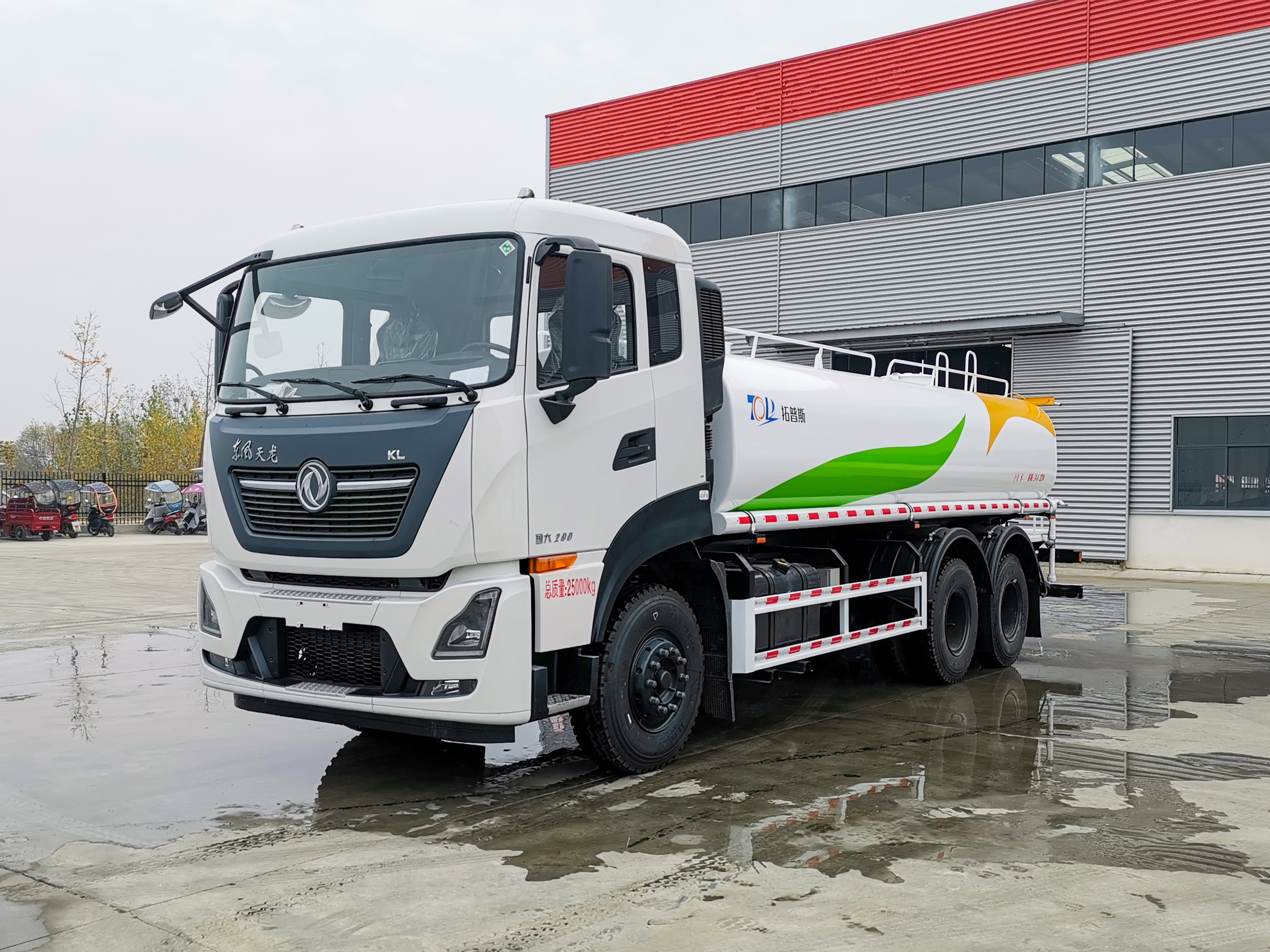

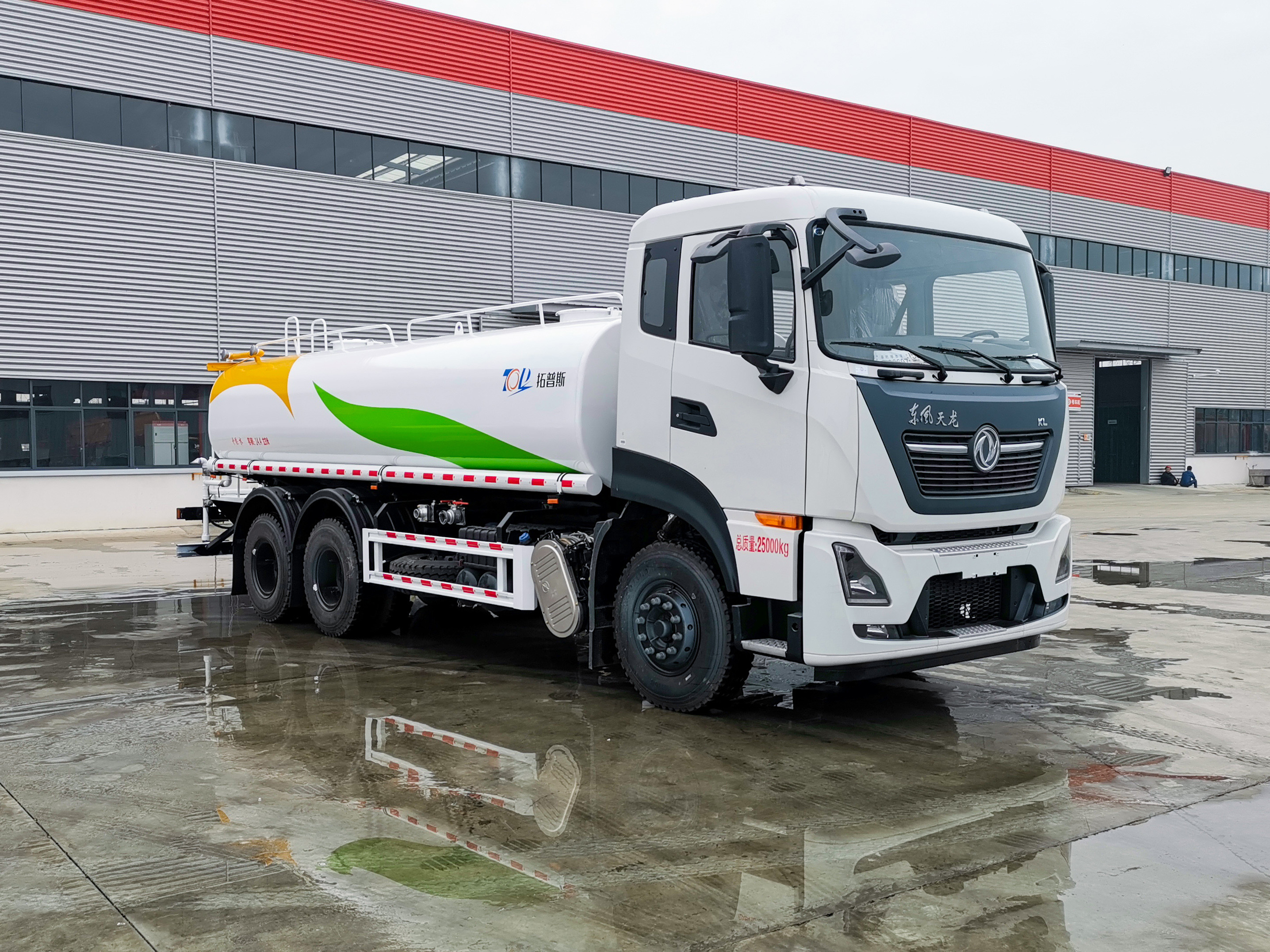

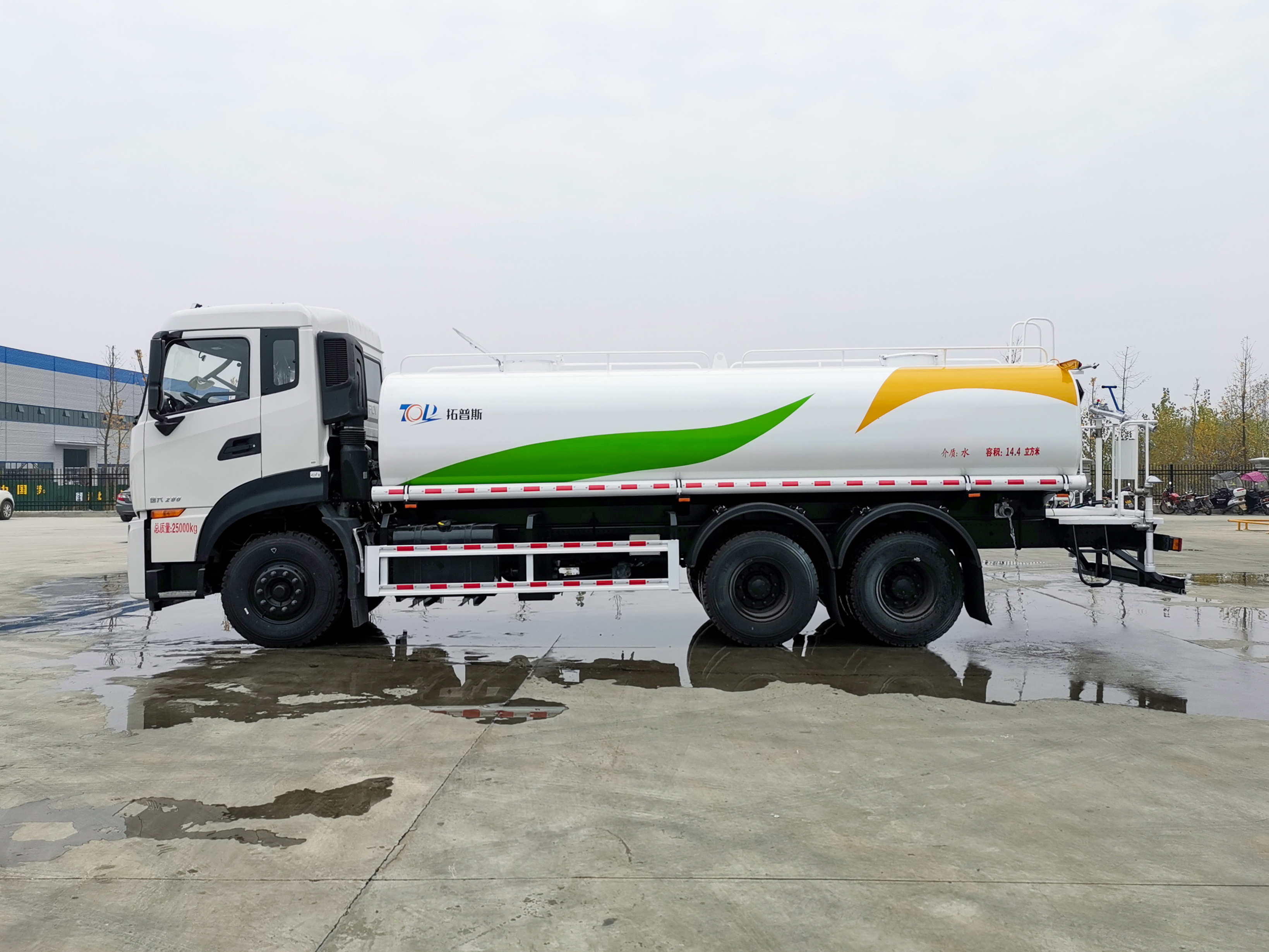

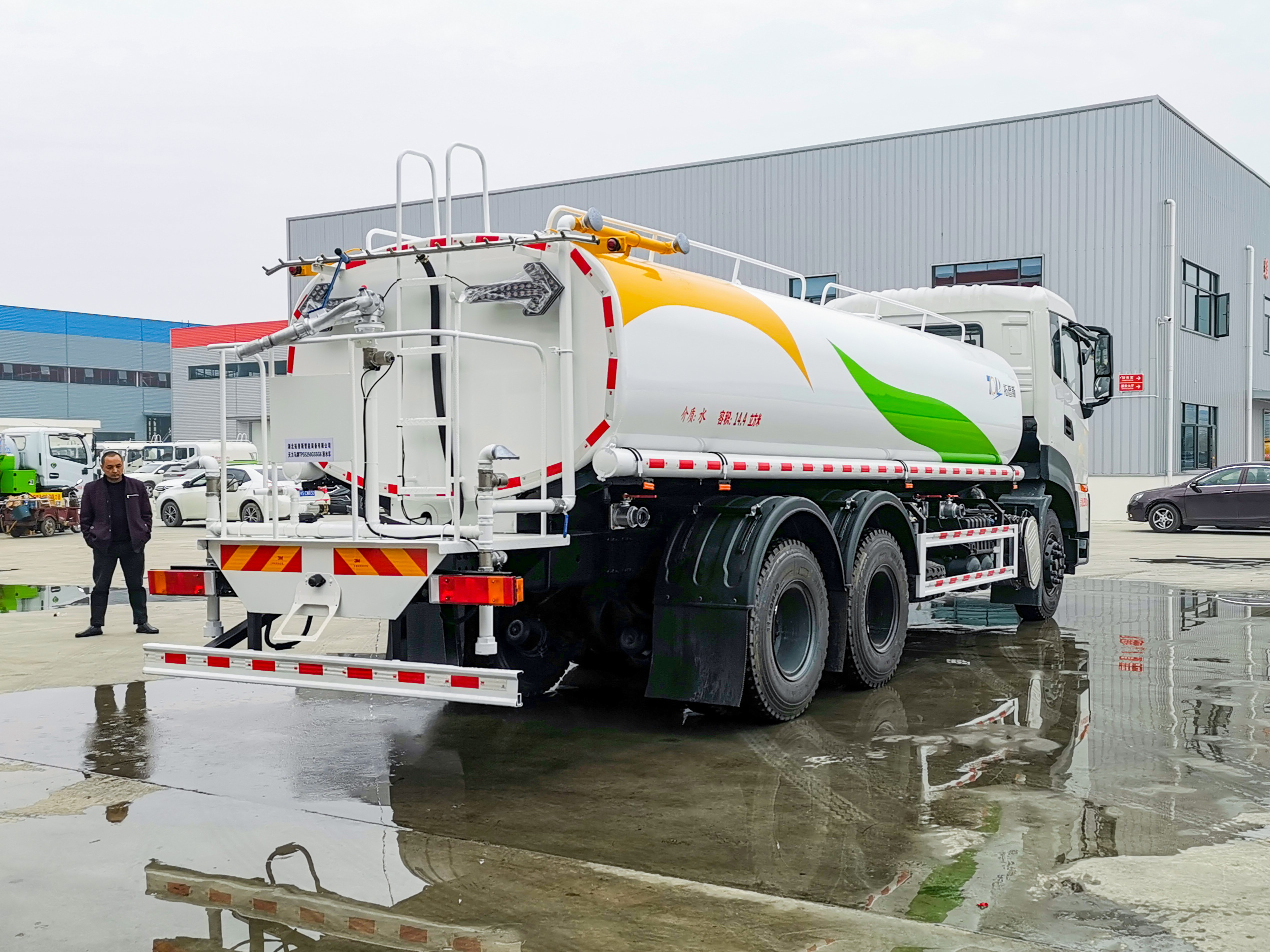

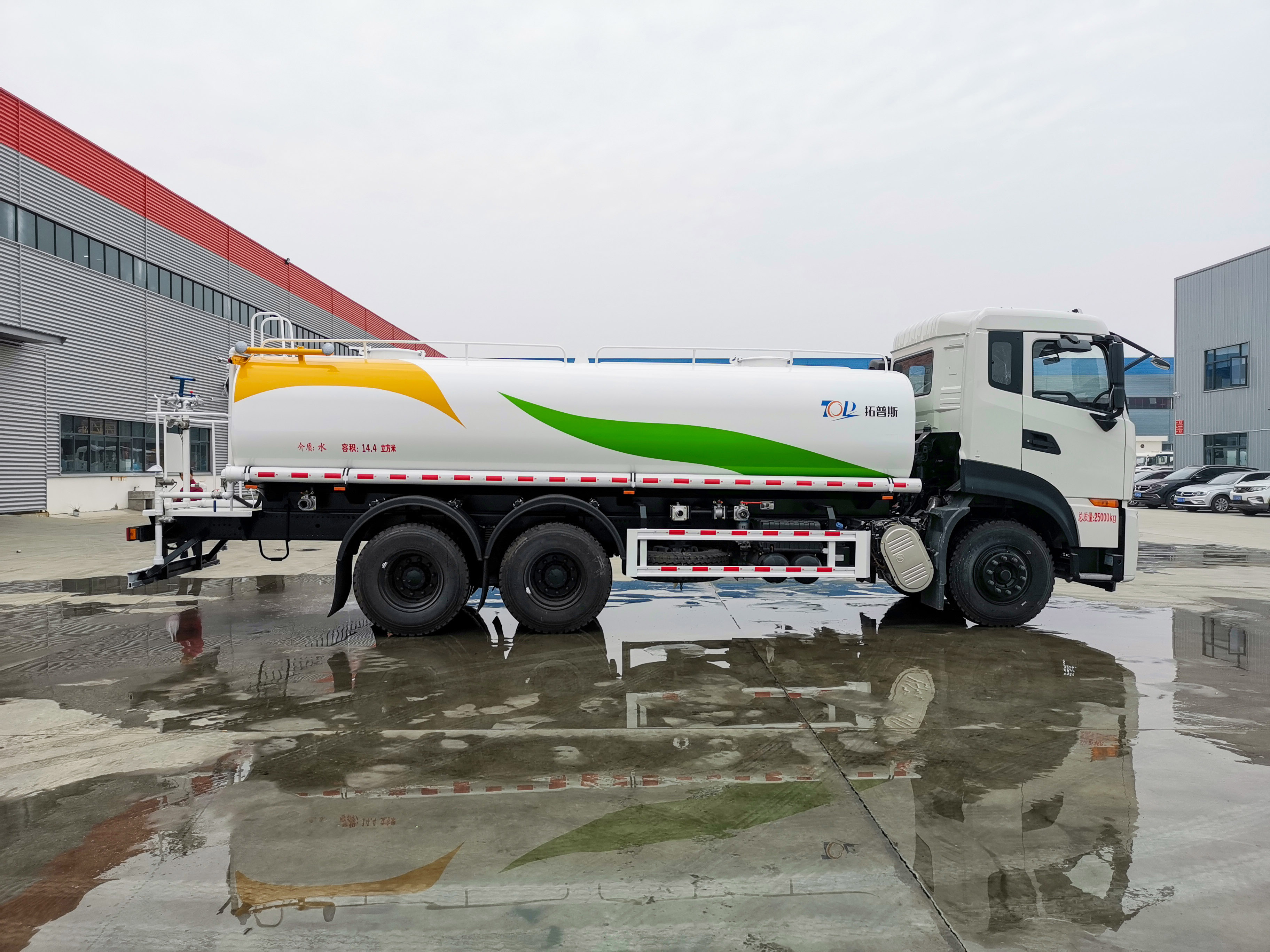

Dongfeng 6X4 Water Tanker Sprinkler Truck 20000L

Complete vehicle

Chassis model

EQ1250GL6DJ

Drive type

6X4

Wheel base(mm)

4350+1350

Overall dimension(mm)

9900x2550x3320

Curb weight(Kg)

10165

Load capacity(kg)

20000

Max.vehicle speed(km/h)

88

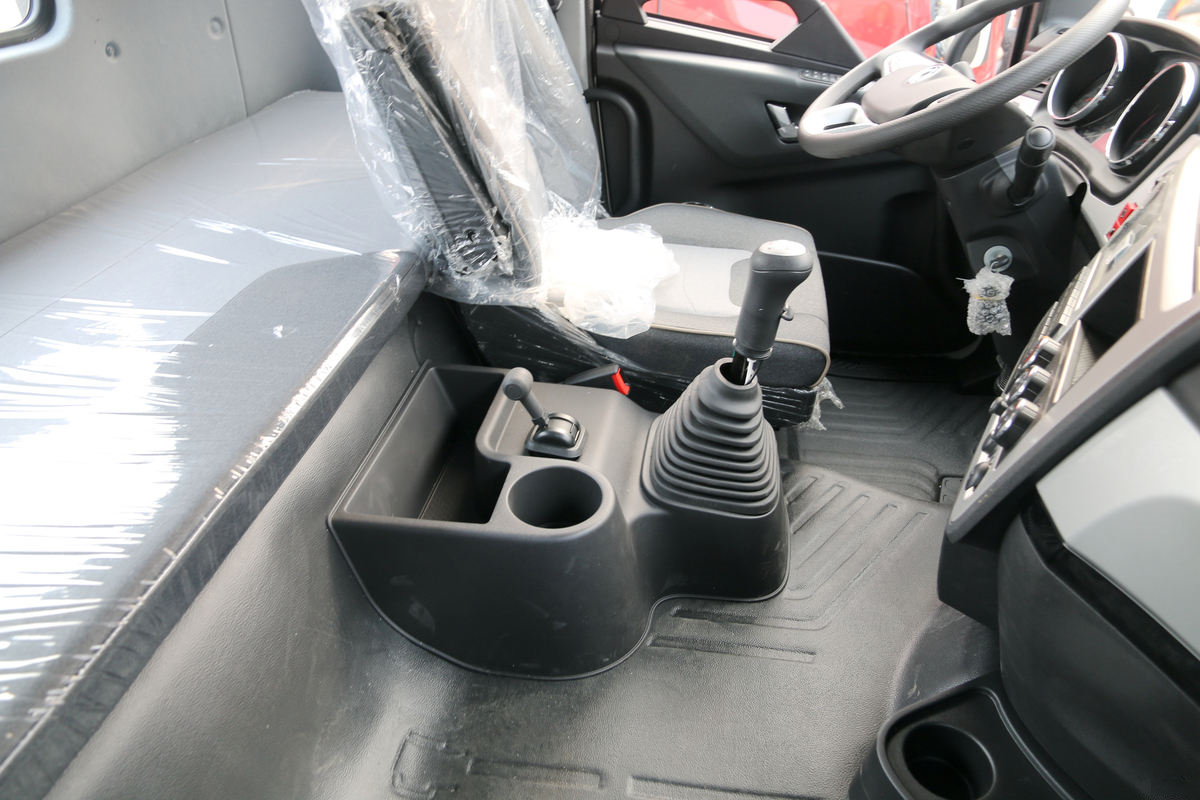

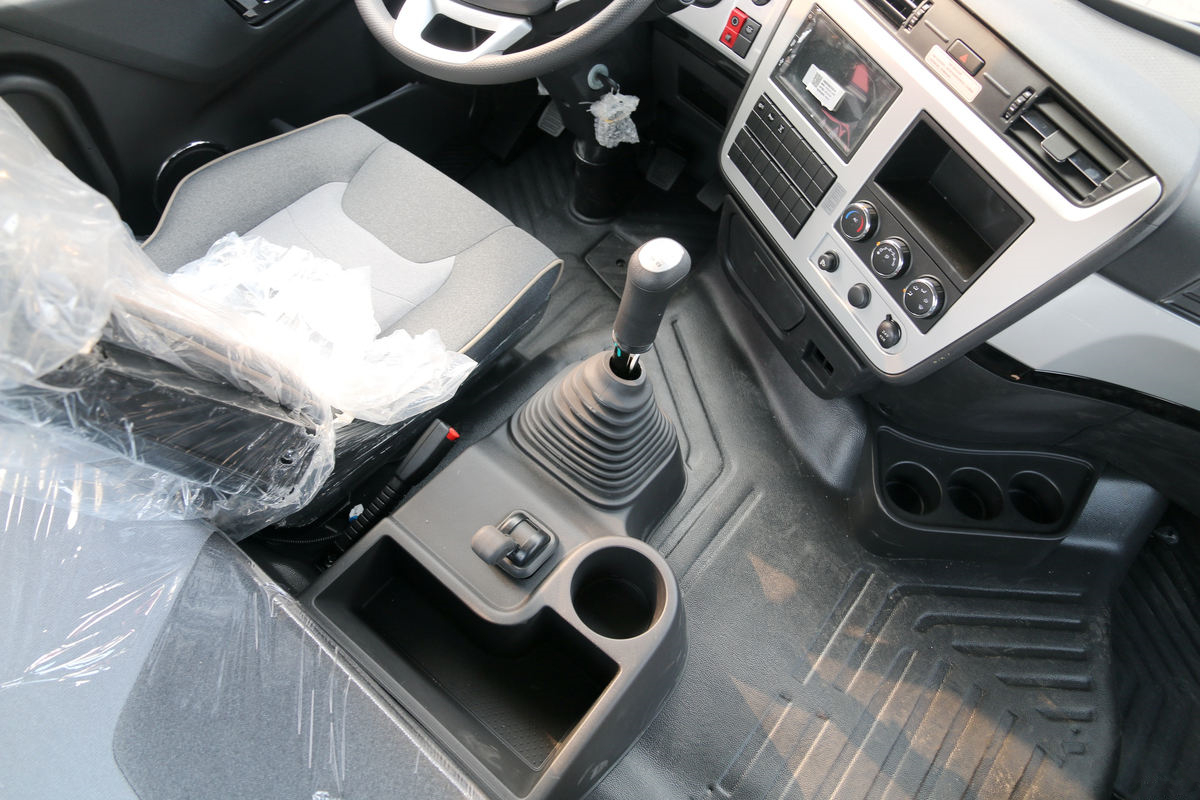

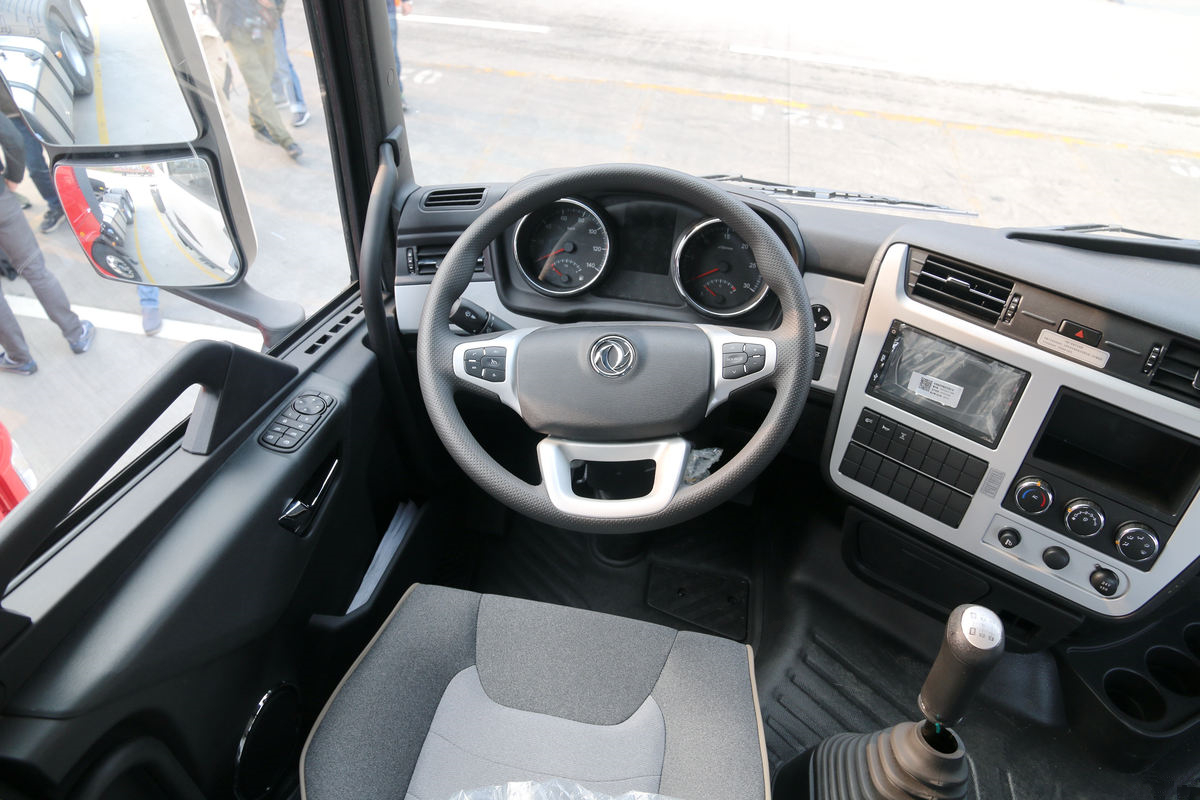

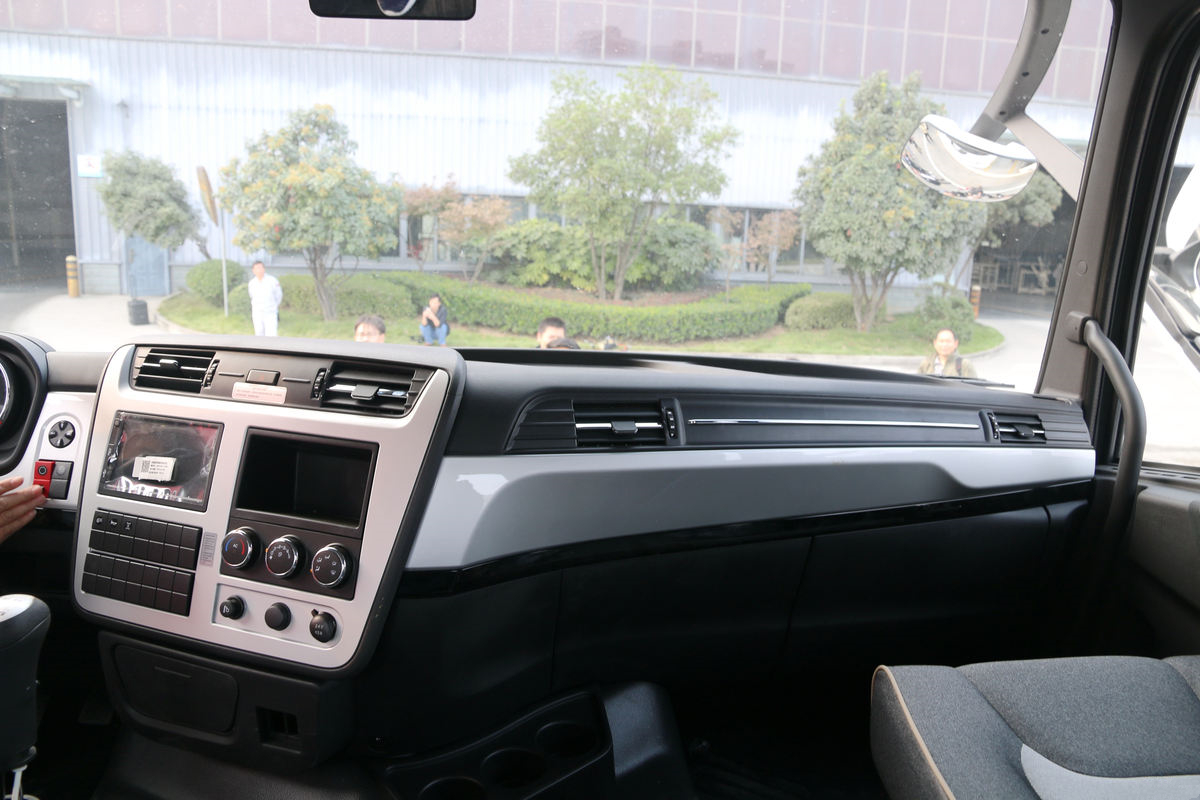

Cab

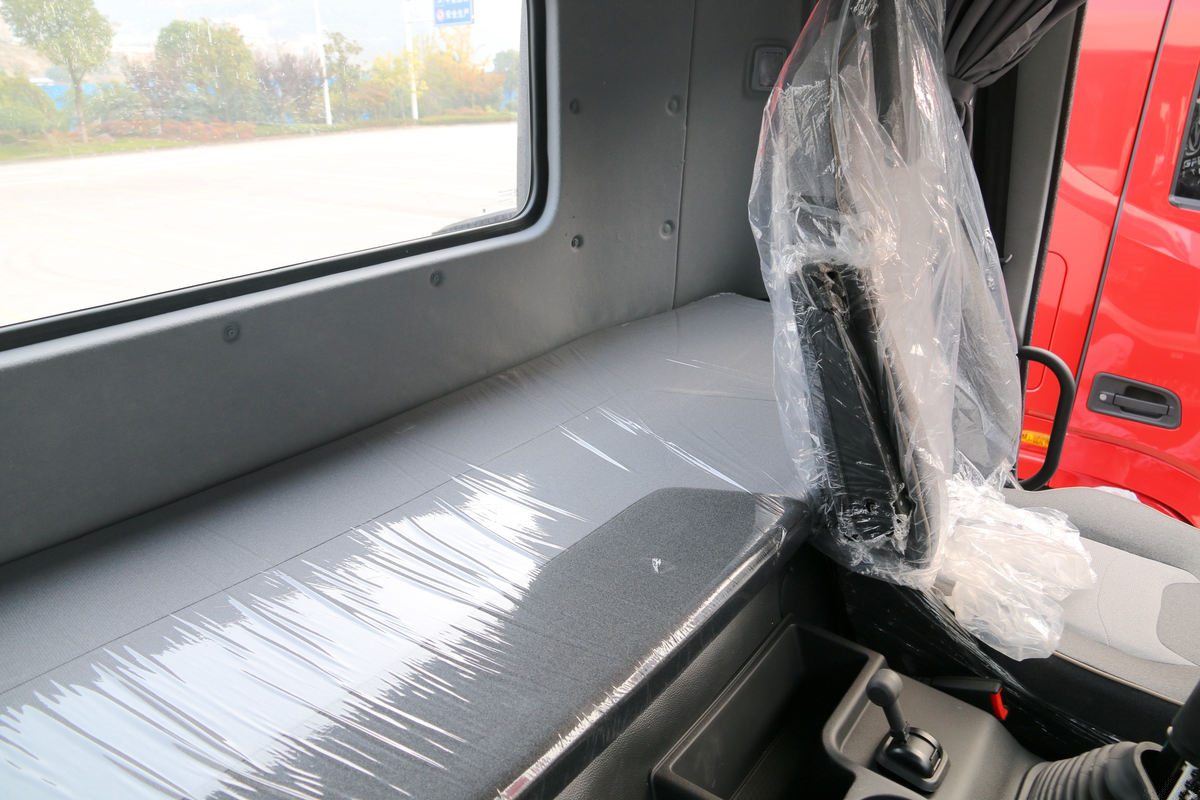

Flat roof,one and half rows cabin,single sleeper,

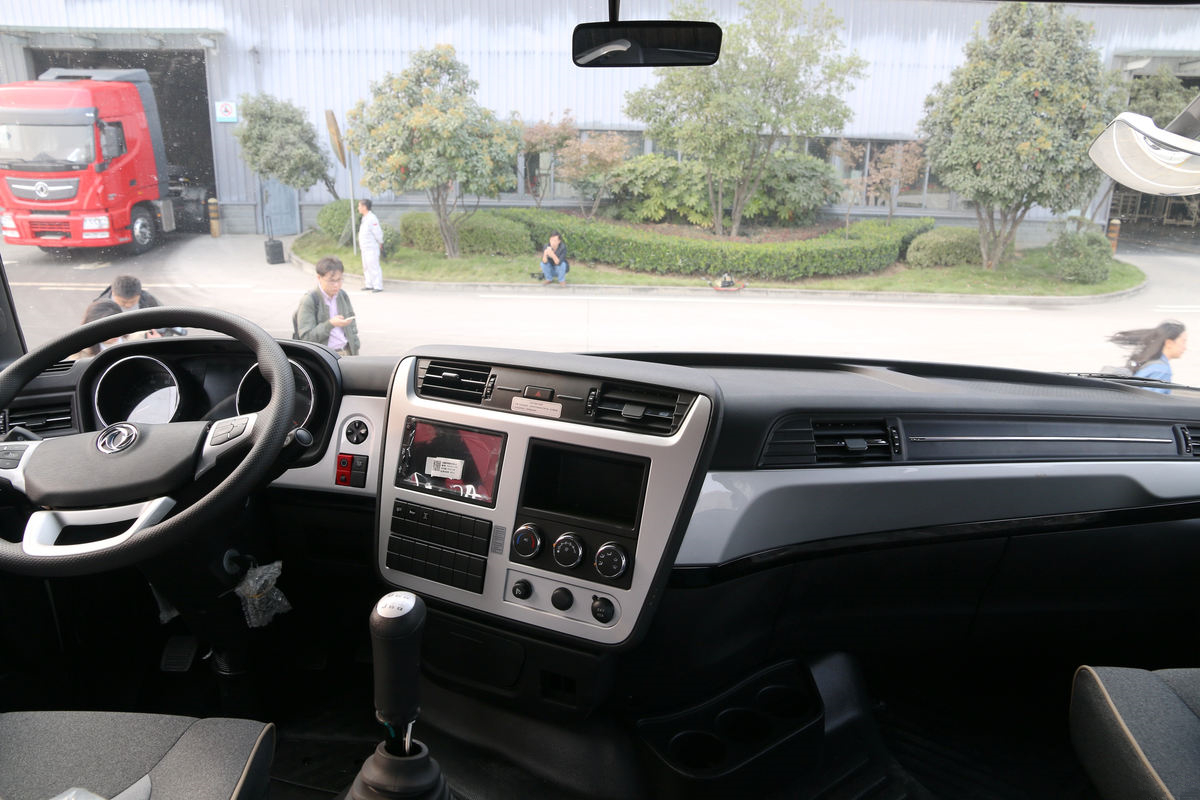

luxury configuration,multi-function steering wheel,A/C,

central lock,electric window

Engine

Model

ISL9.5-400E51A (Cummins)

Max.output (kw/HP)

295/400

Max.torque (N•m)

1710@1200~1400rpm

Displacement (ml)

9460

Emission standard

Euro 5

Gear box

FAST,12JSD180,manual,12 forward ＆2 reverse gears

Driving axle

13Ton*2, tandem axles

Front axle

5.5Ton,steering axle

Steering type

LHD,power steering

Chassis suspension

New stabilizing suspension

Quantity of leaf spring

13/13

Inner trimming

Standard configuration

Lumbar support to the driver

Adjustable steering wheel

Electrical system

Standard configuration

CAN bus intellectual electronic control system

New battery box

Start/stop device under the vehicle

Comfortable accessories

Cab four points full floating suspension

Front and rear coil spring

Standard configuration

Cab anti-rolling stabilizing device

Air suspension driver seat

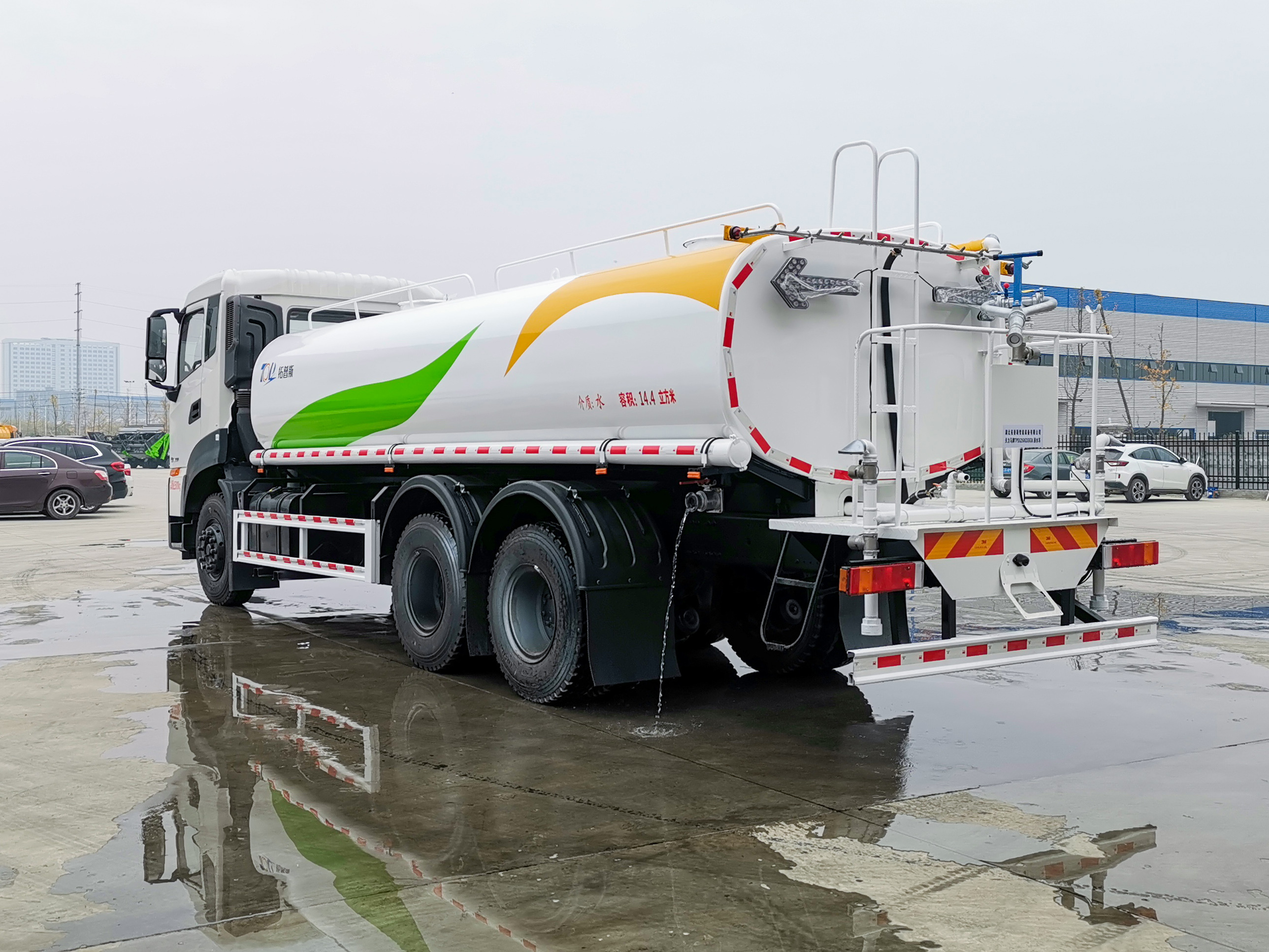

Water tank

Tank capacity

20000L

Tank body material

Stainless steel

Material thickness

5mm

Manhole

Inner diameter 500mm,stainless steel

Water pipe

Stainless steel

Water pump

Material stainless steel

Water hose

Provided

Sprinkler

Equipped with front/side/rear nozzles

nozzle sprinkling width≥14m

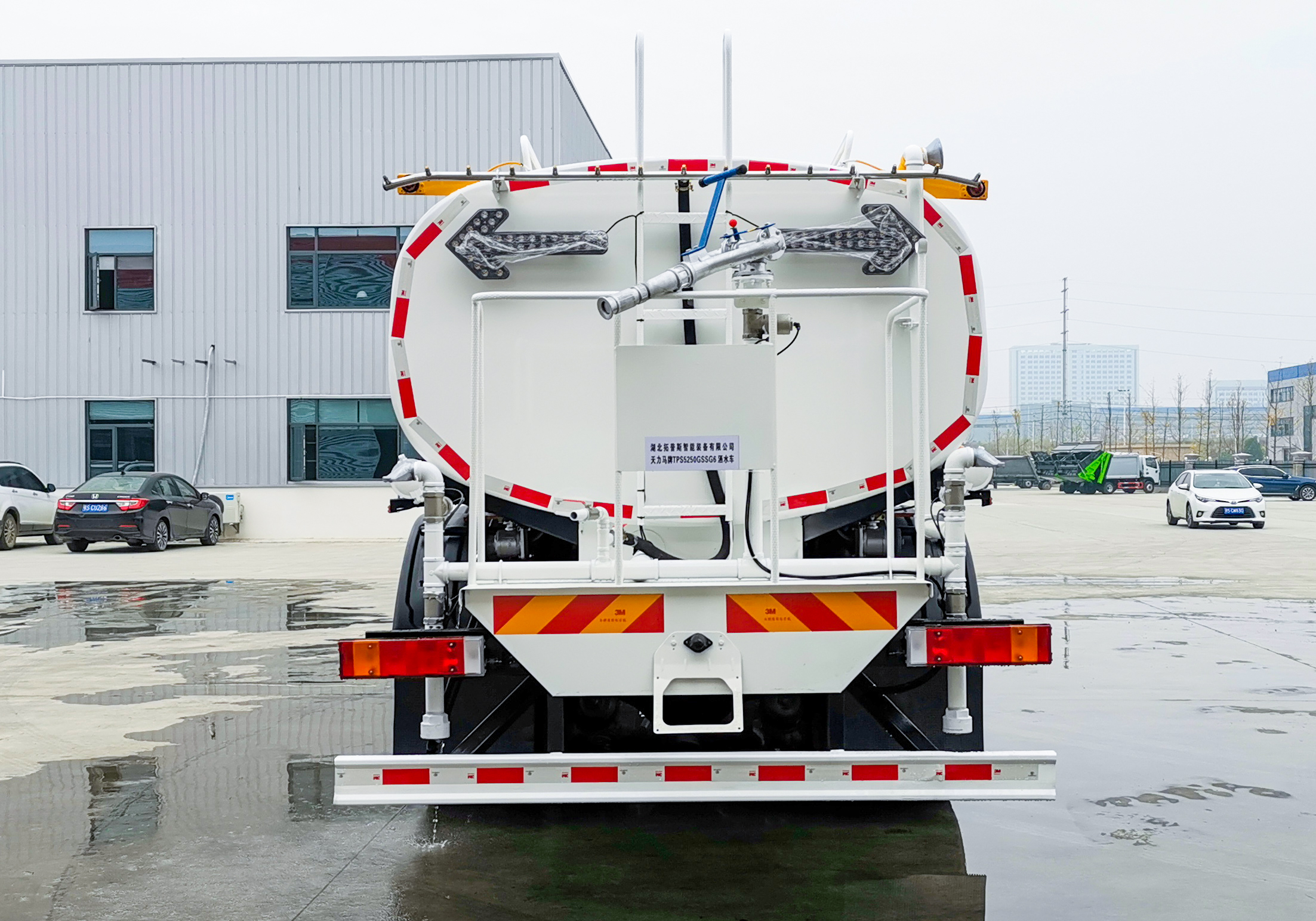

Water cannon

Equipped with rear working platform with water cannon range 28≥m

Suction height

≥7m

Accessory

With fire coupling valve,stainless steel water valve,

filter gauze,climbing ladder at rear,with 49” LED Light bar (white and Blue)

Others

Standard configuration

Reinforced rim

Three in one lock (ignition switch, door and fuel tank)

Type specification

12.00R20

Number of tires

10+1spare

Fuel tank

Aluminium alloy,capacity 300L
