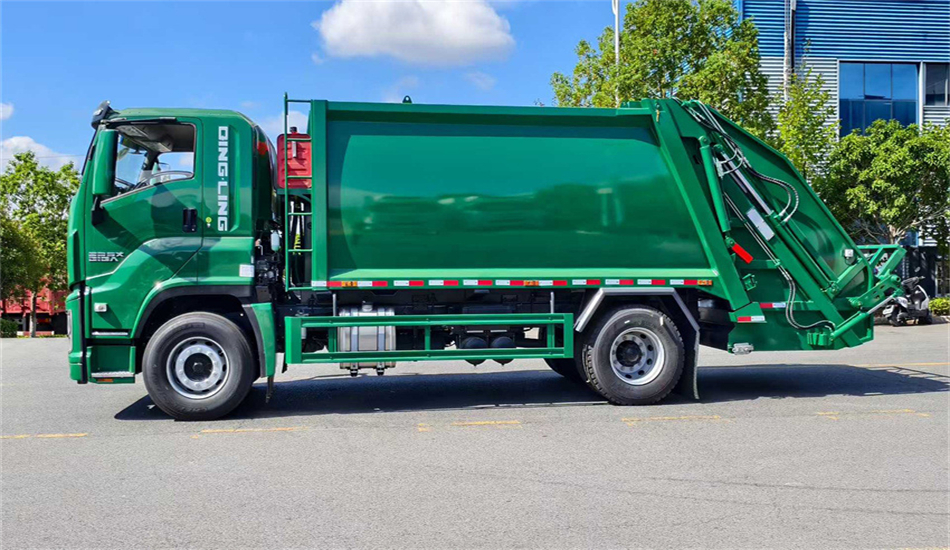

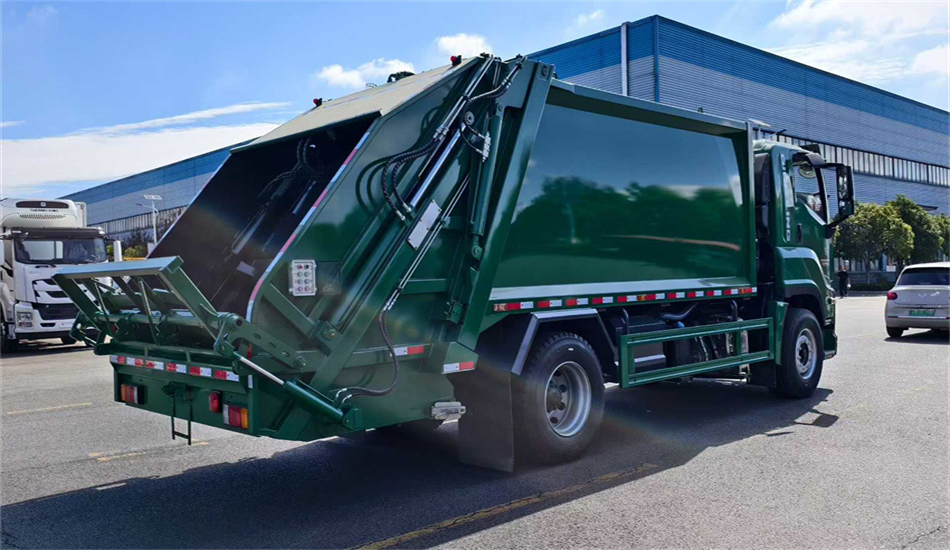

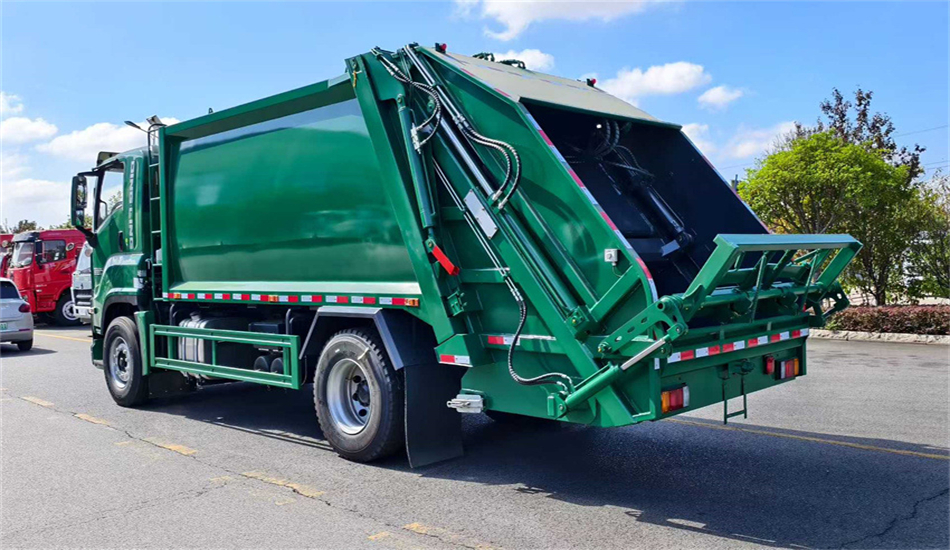

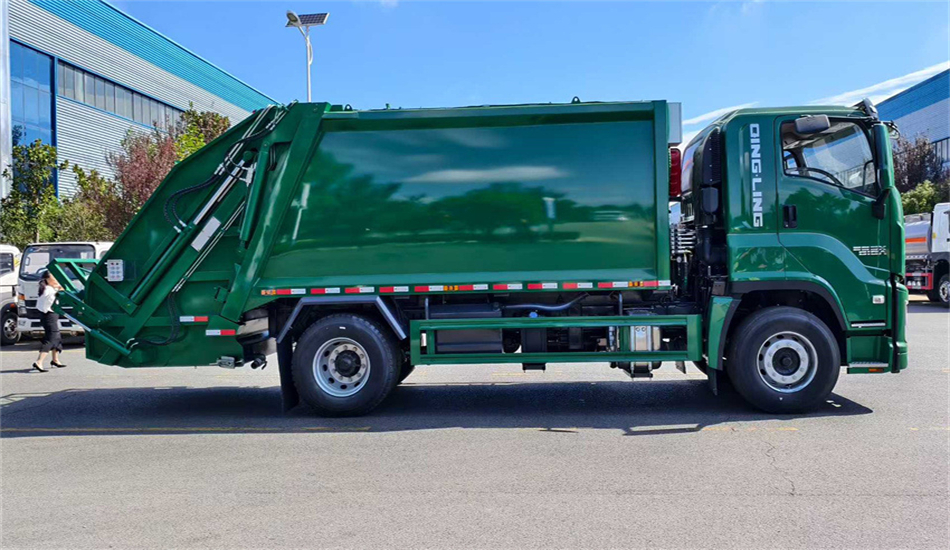

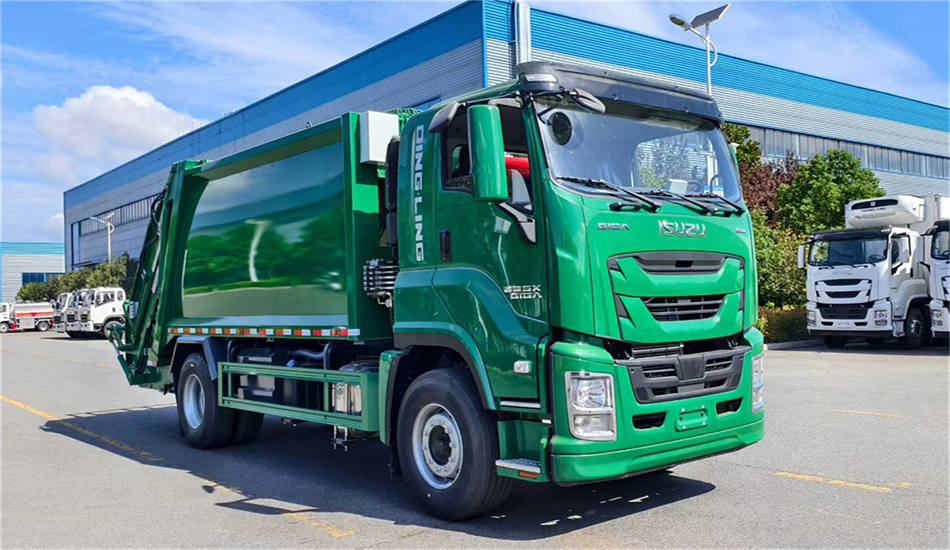

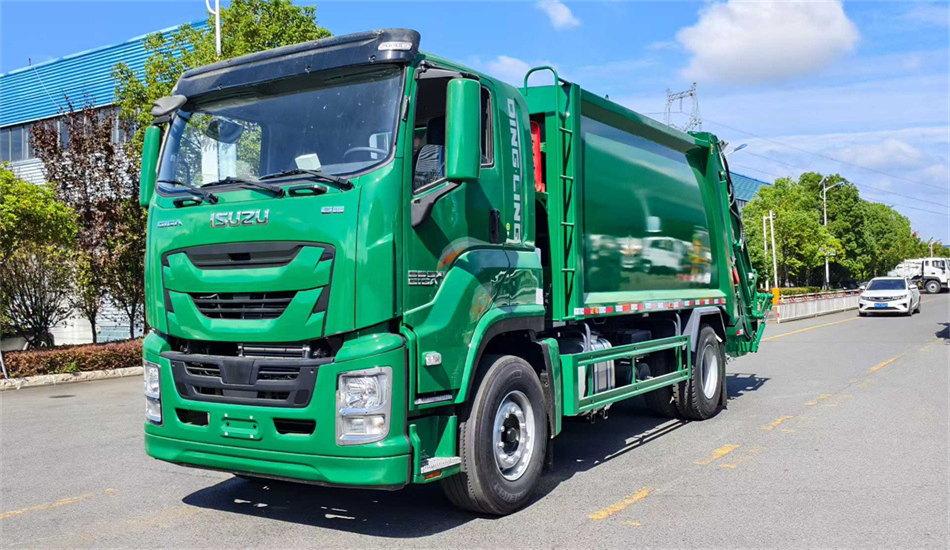

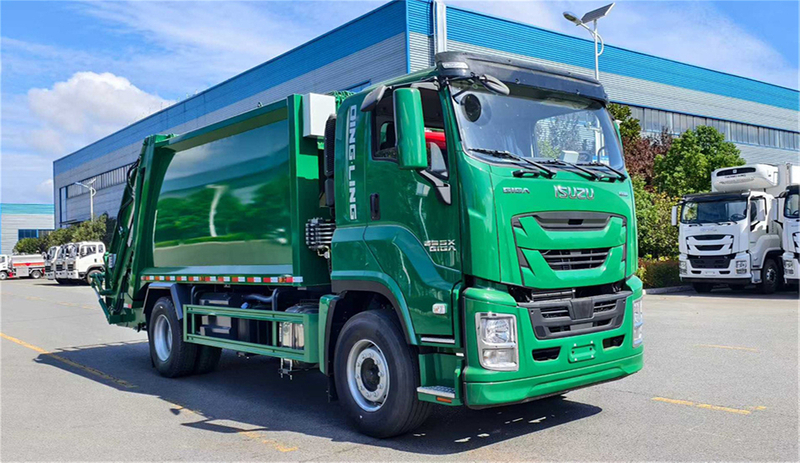

ISUZU GIGA Garbage Compactor Truck 12CBM

Drive type

4X2 Left hand drive

Garbage box capacity

12000L

Main dimension

Overall dimension(mm)

9000*2500*3320

Wheel base (mm)

4500

Wheel track(front/rear)(mm)

1960/1855

Weight data

Curb weight(Kg)

10500

Total weight (Kg)

18000

Engine

Model

4HK1-TCG60

Description

In-line,4 cylinders,water cooling & turbo charged,

inter-cooling diesel engine

Displacement(L)

5.193

Power(kw/HP)

151/205

Maximum Torque(N·m)

510

Emission level

Euro 6

Gearbox

Description

MLD,manual,6 forward ＆ 1 reverse gears

Axles

Front axle load capacity

6.3Tons

Rear axle load capacity

13Tons

The others

Cabin

GIGA 4X cabin,one and half rows,luxury type,

with power steering,air conditioner,central lock,

electric window,radio,USB interface

Brake

Pneumatic brake system,with ABS

Tire type

295/80R22.5 18PR

Number of spring plate

7/7+7

Front /rear overhang(mm)

1335/2670

Approach/departure angle(°)

15/13

Max.speed(km/h)

89
