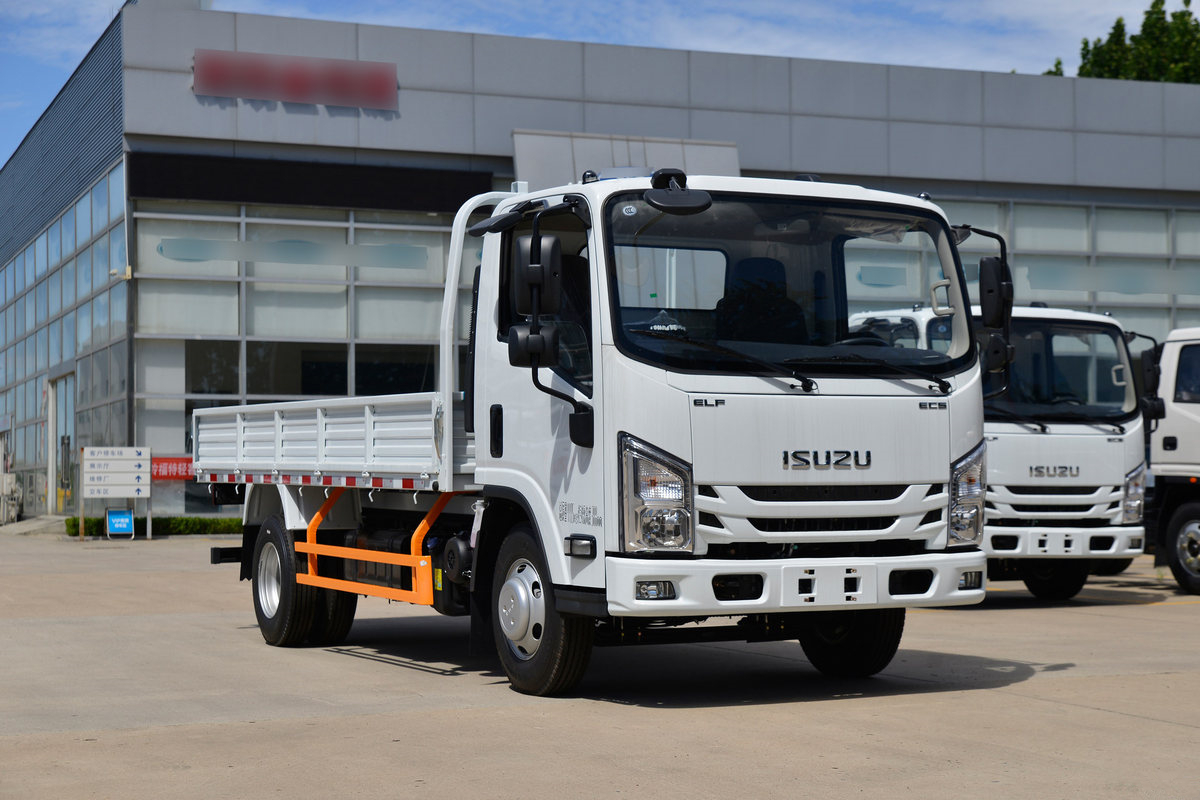

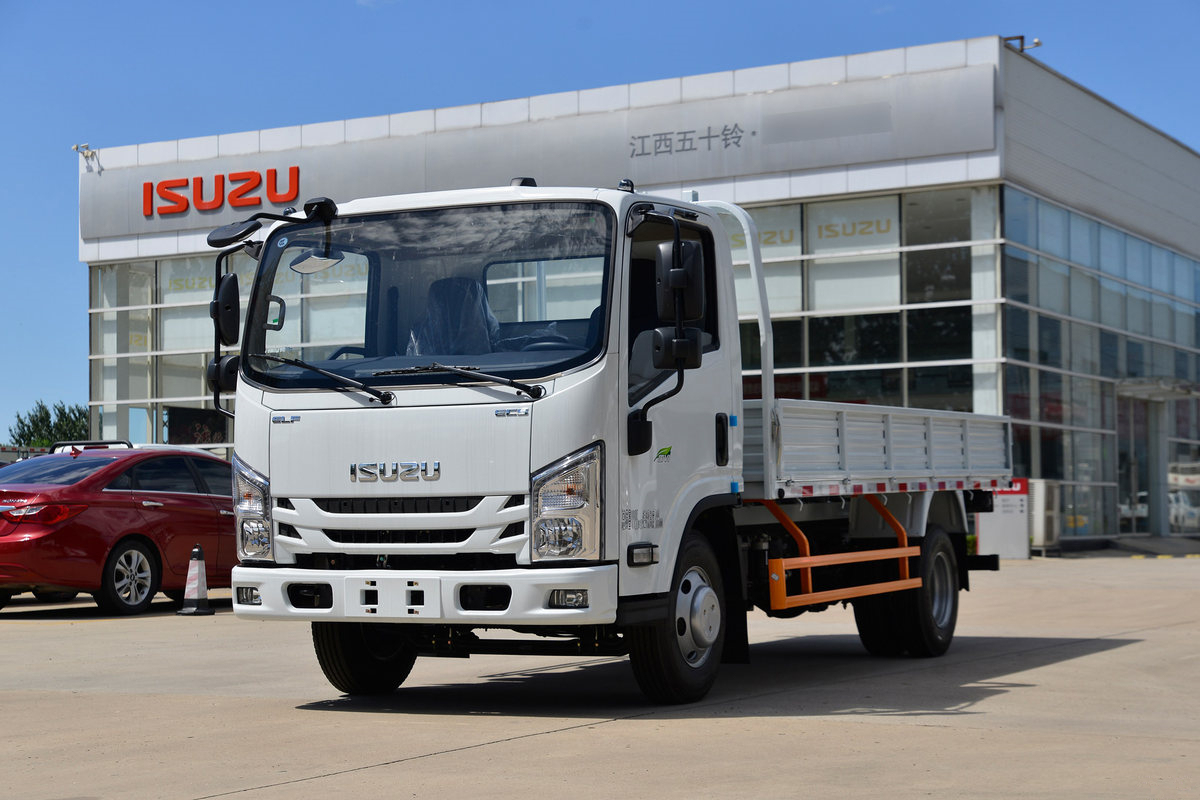

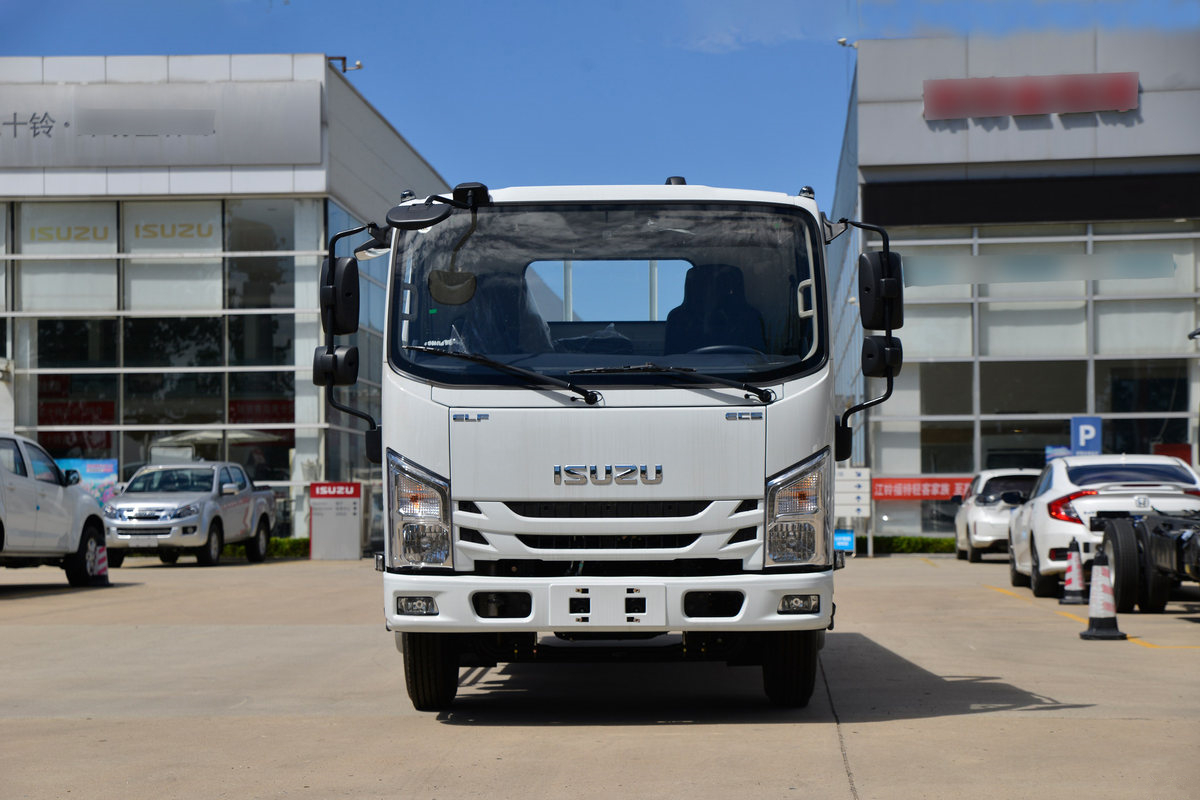

ISUZU Single Cabin Cargo Truck 5Ton

Drive type

4X2

Engine

Model

JE493ZLQ6K

Description

In-line/4 cylinder/water cooled/turbo charged/inter cooled/direct injection/diesel engine

Rated power of engine (kw/HP)

93/126

Maximum torque (N.m@rpm)

350@2200rpm

Displacement (ml)

2499

Emission level

Euro III (No need to add AdBlue)

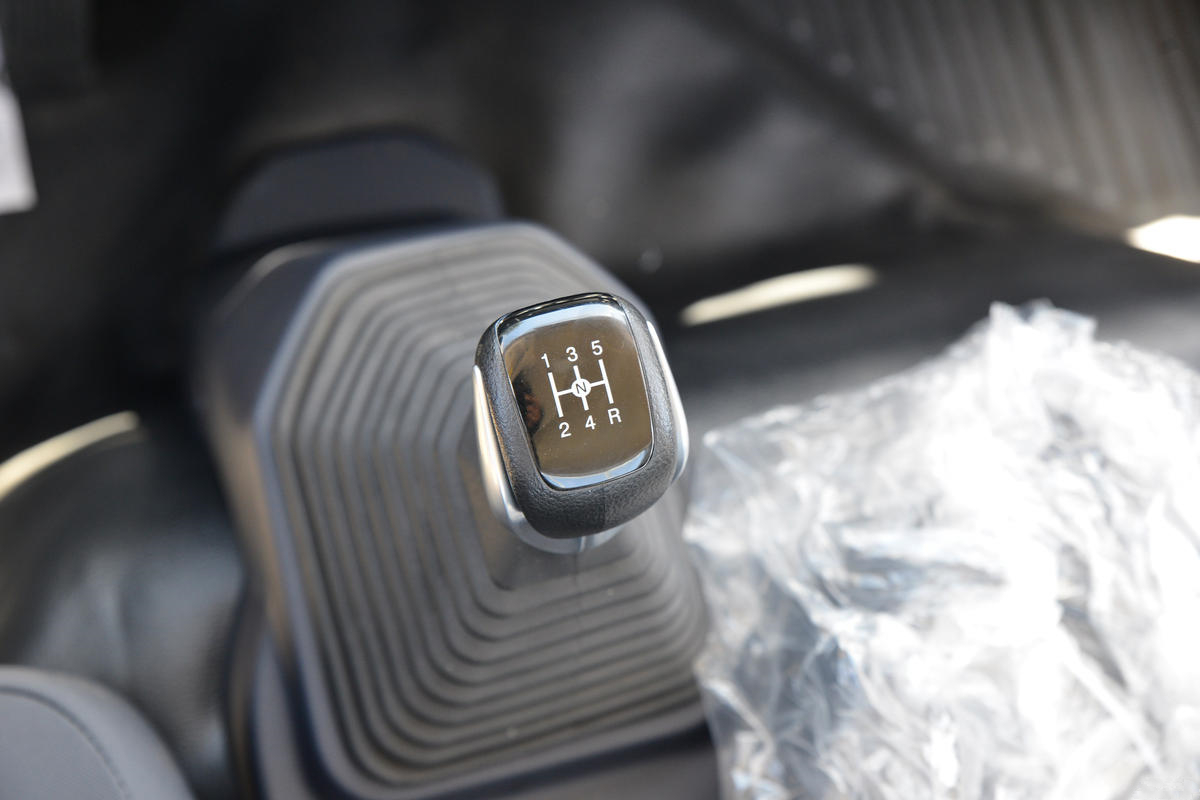

Gearbox

Description

Manual,5 forward ＆ 1 reverse gears

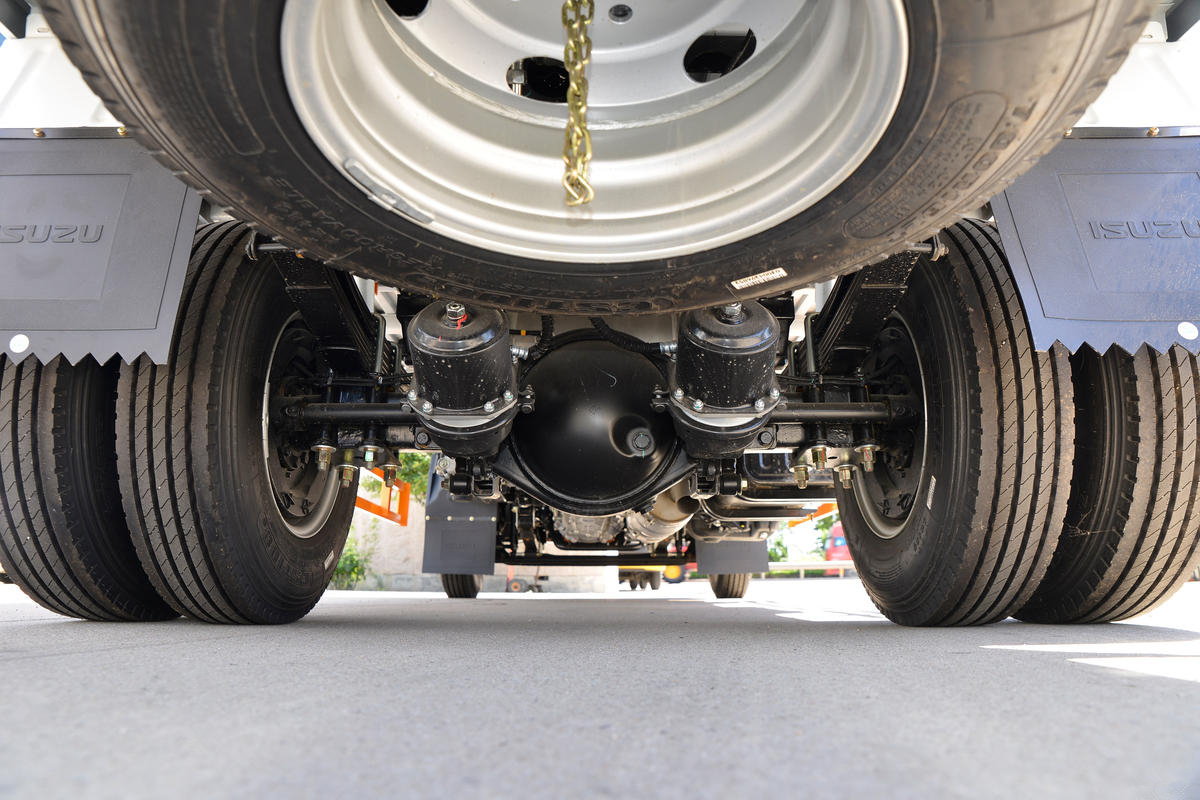

Front / Rear axle

Front axle load (Kg)

2500

Rear axle load(Kg)

4500

Type of tire

7.00R16LT

Quantity of tires

6+1

Quantity of leaf spring

3/5+2

Brake system

Drum type,hydraulic braking with ABS

Steering device

Left hand drive,power steering

Fuel tank capacity(L)

83

Weight parameter

Curb weight (Kg)

2500

Rated load weight(Kg)

4500

Actual max.load weight(Kg)

5000

Performance parameter

Maximum speed (km/h)

100

Maximum grade ability (%)

≤25

Dimension parameters

Overall dimension (LxWxH)mm

5995×2180×2315

Box dimension (mm)

4200×2100×400

Wheelbase (mm)

3360

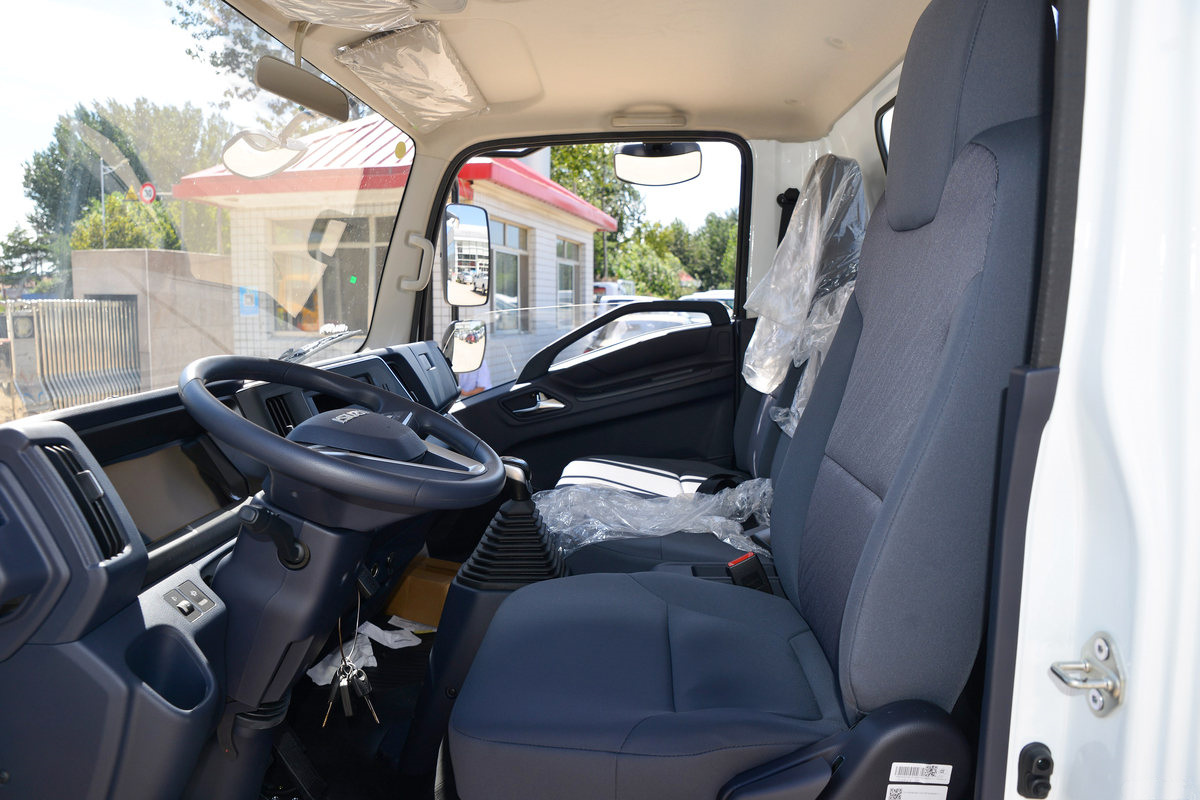

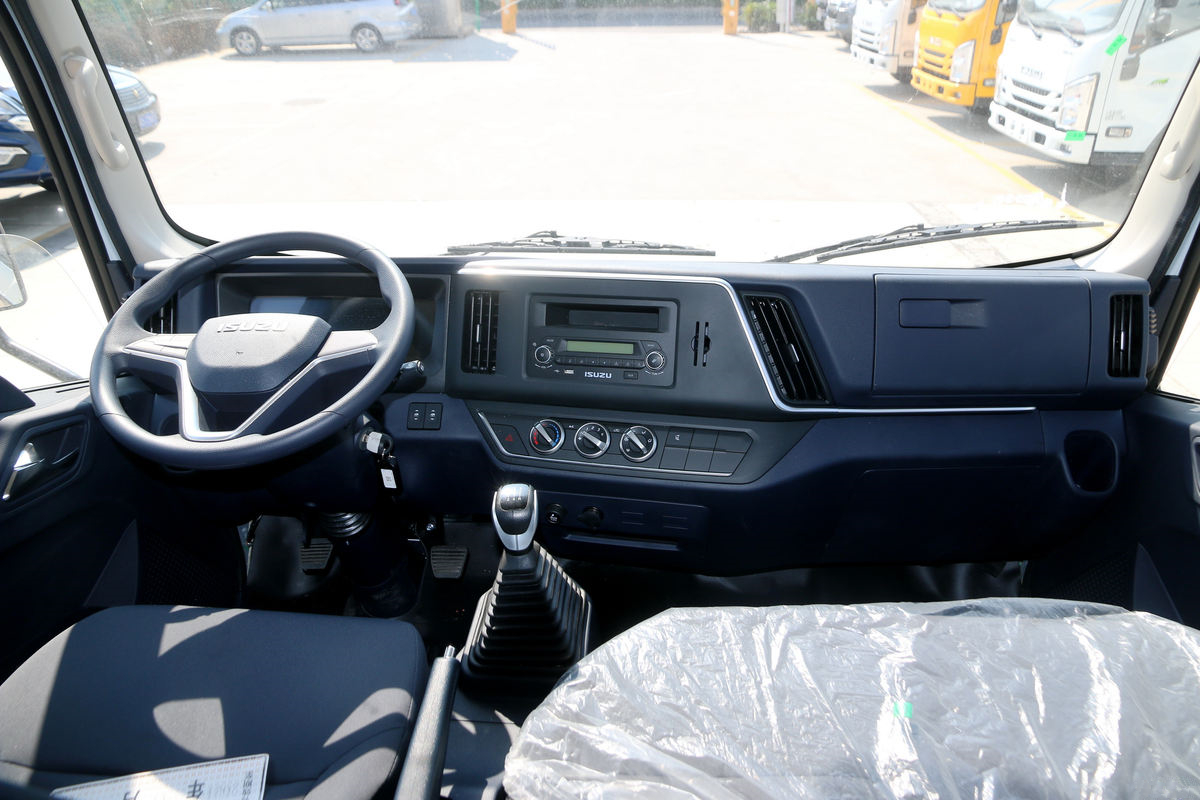

Cabin

Description

EC5,width 1880mm,medium type,single row,two doors,luxury configuration,air conditioner,central lock,rear reversing radar,electric windows,radio,USB interface,safety belt
