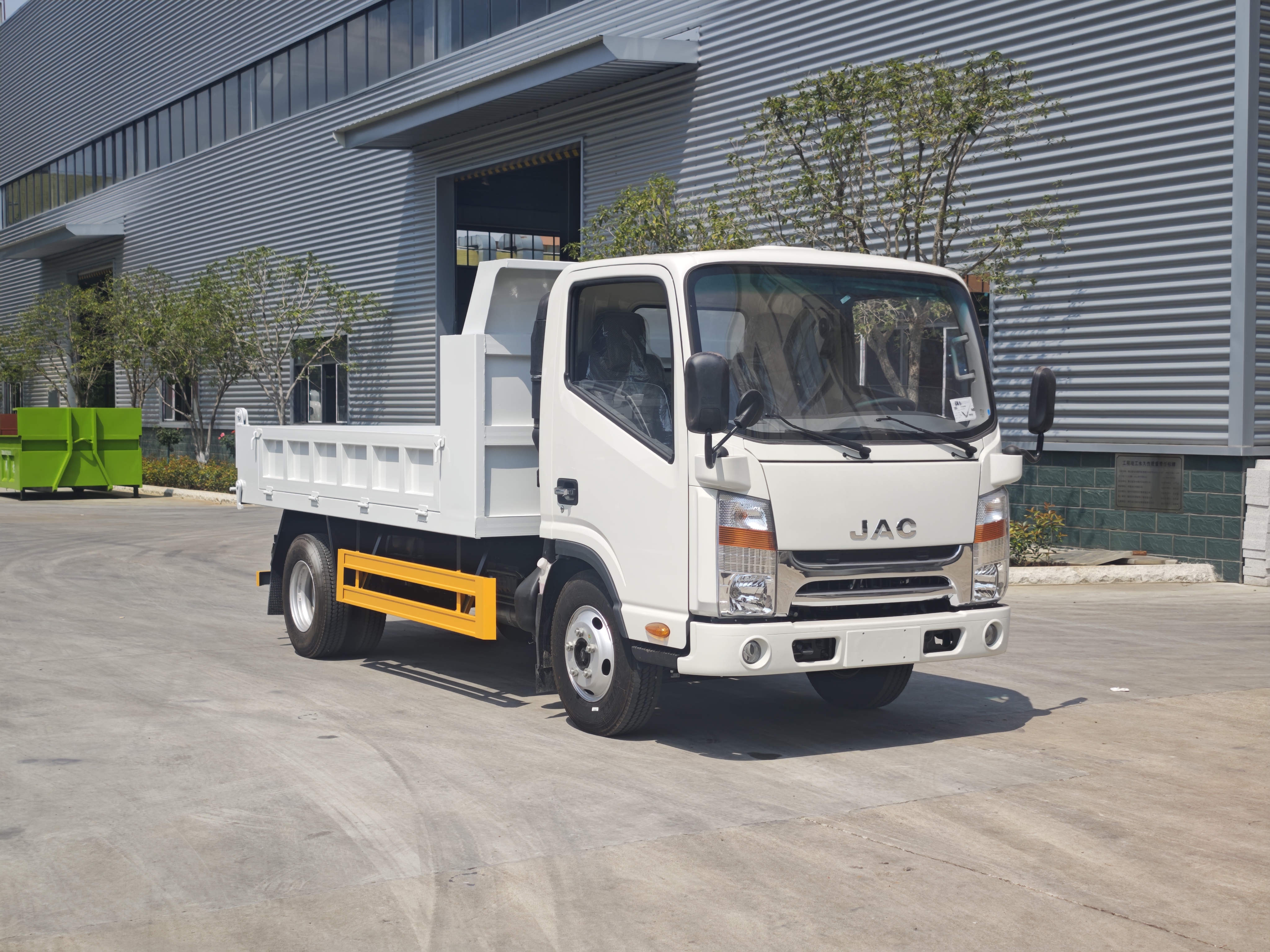

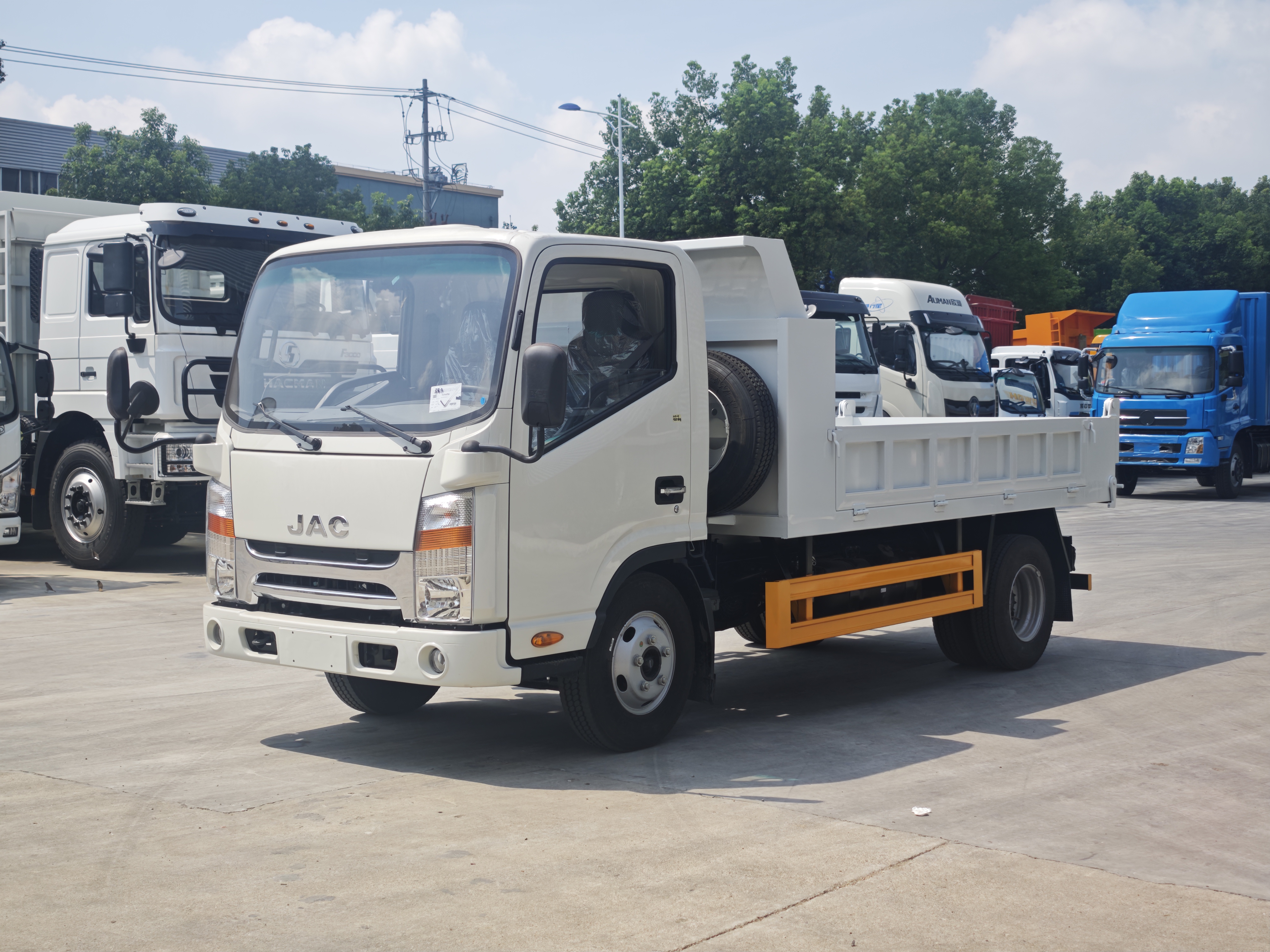

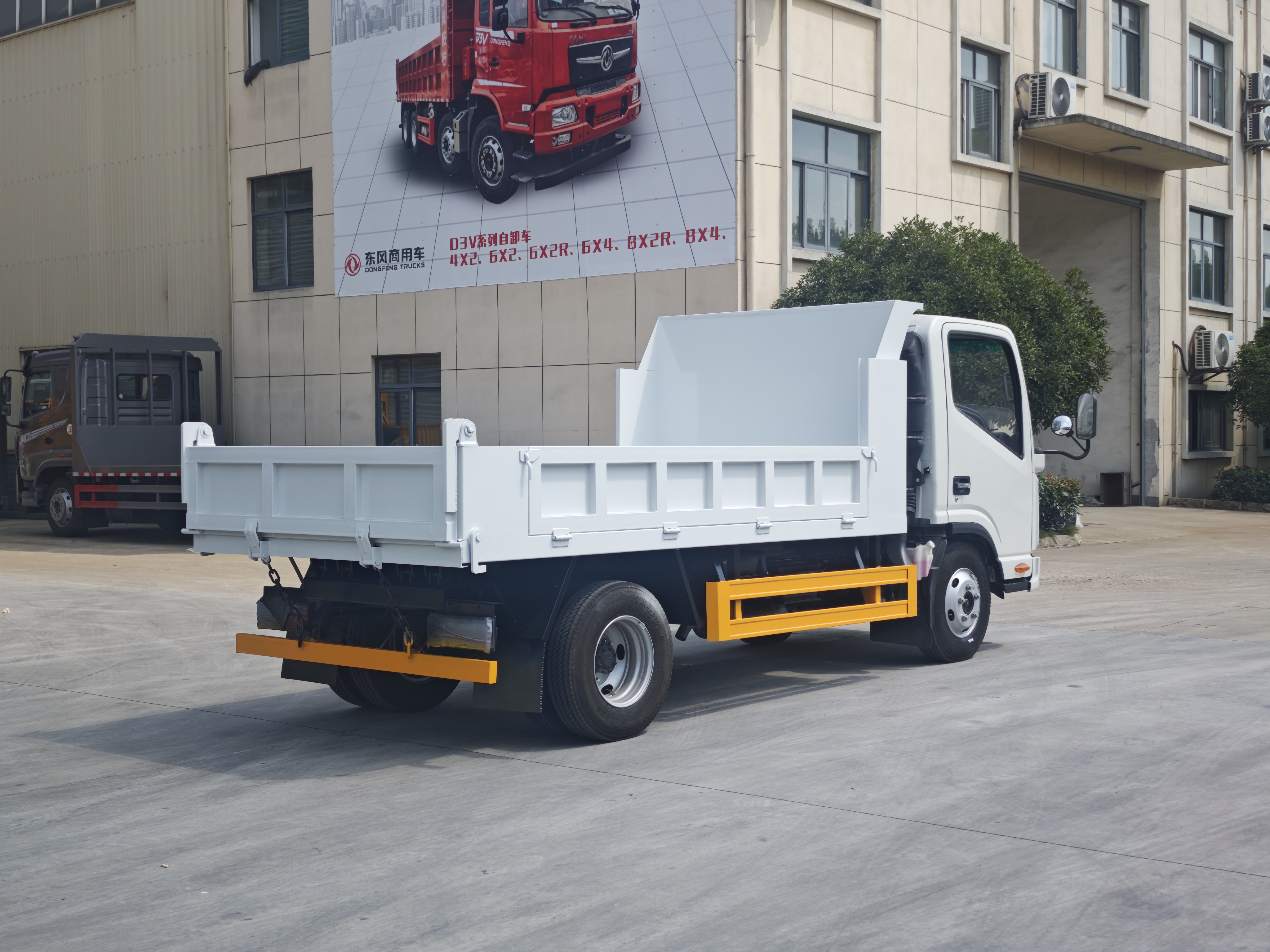

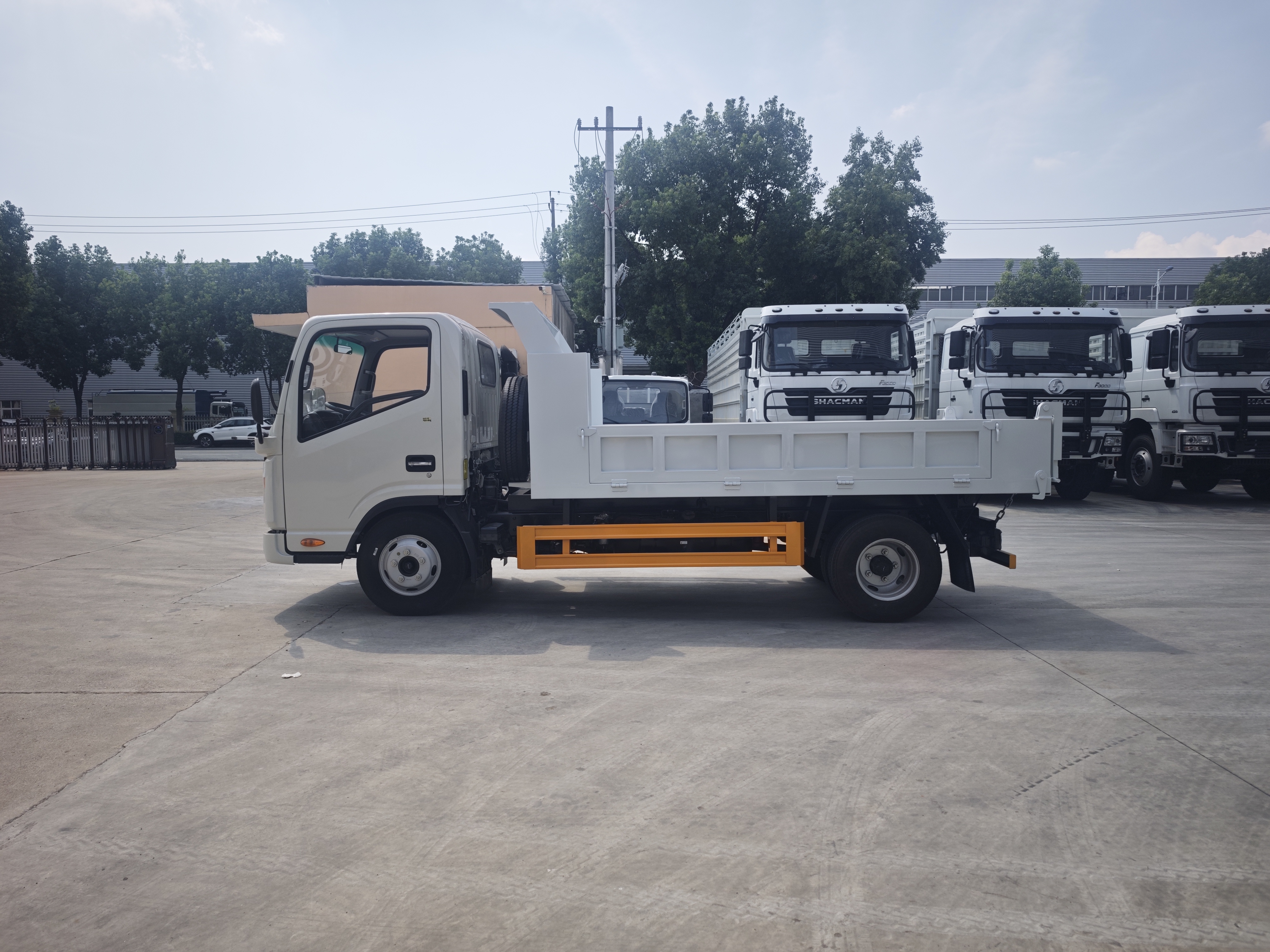

HFC3050
JAC
8704 2100.00
Product brand | JAC | |

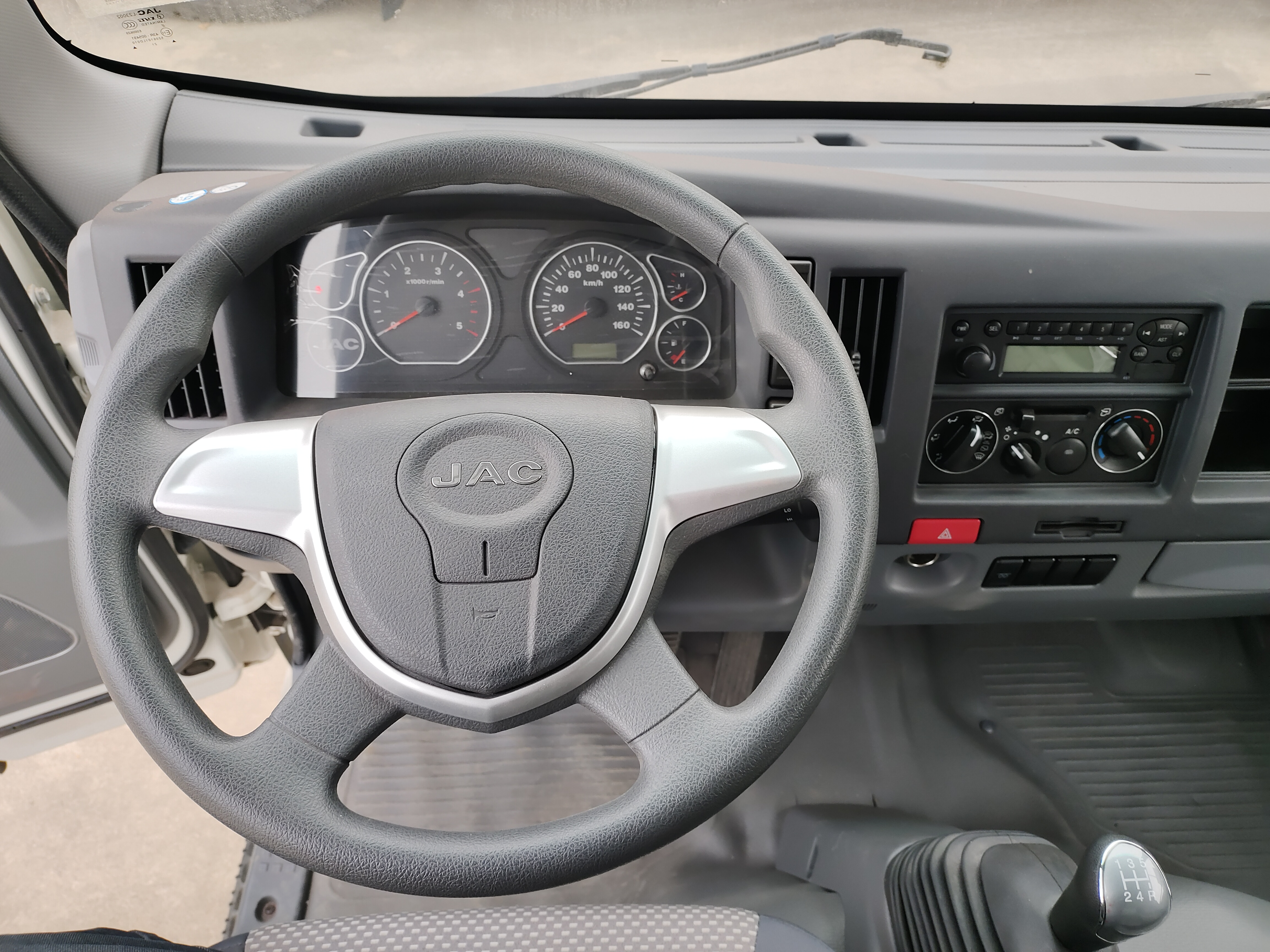

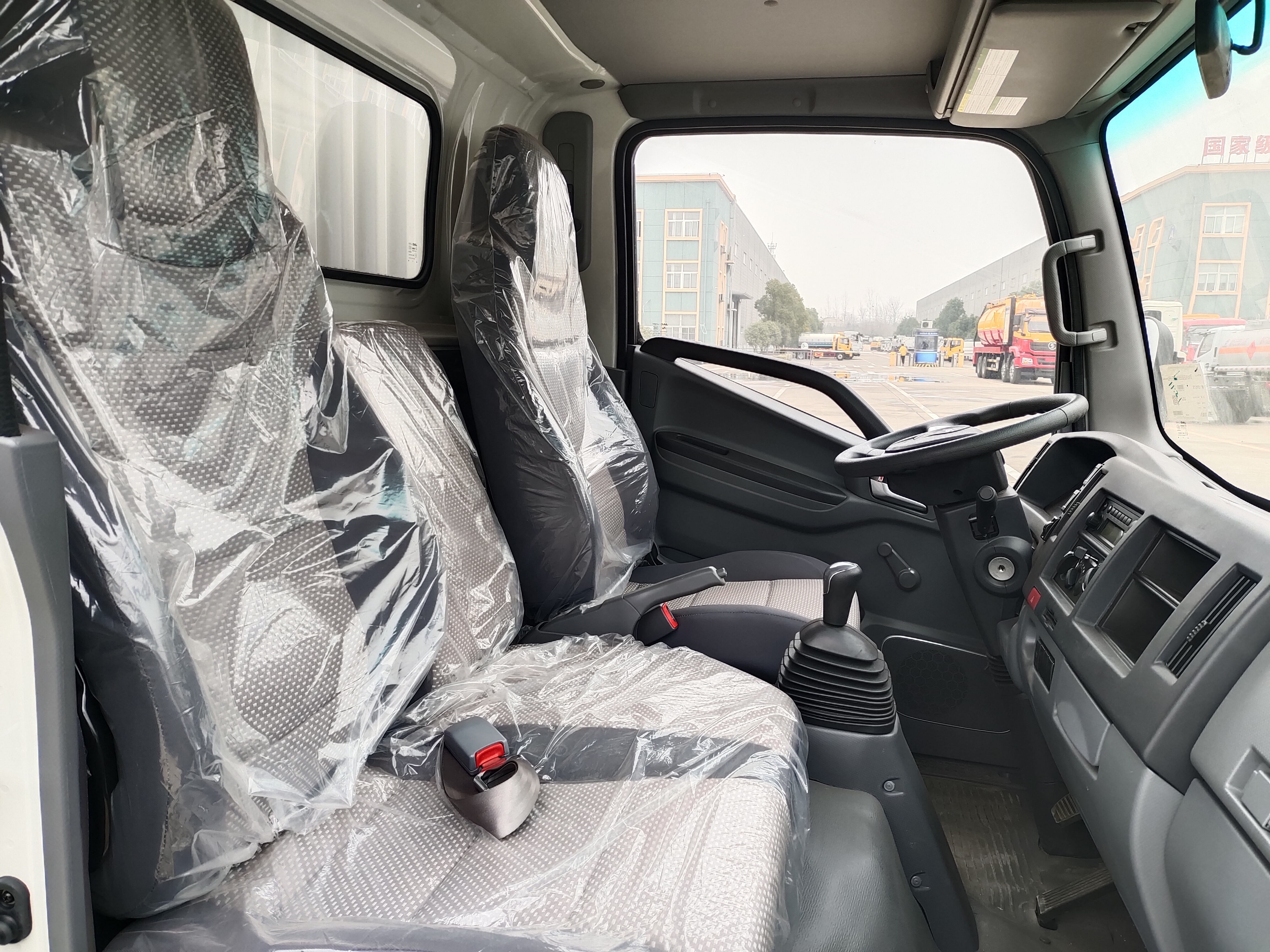

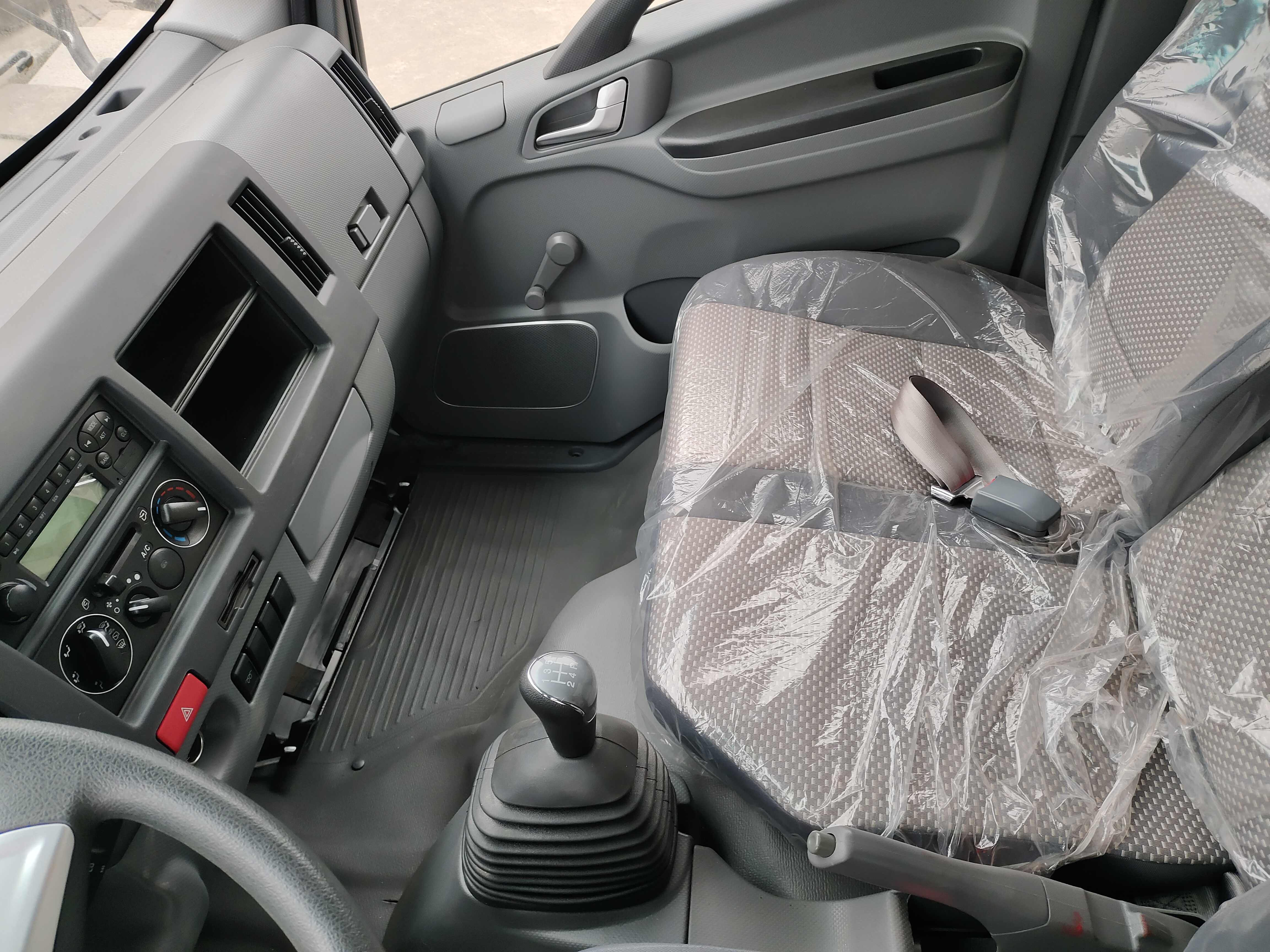

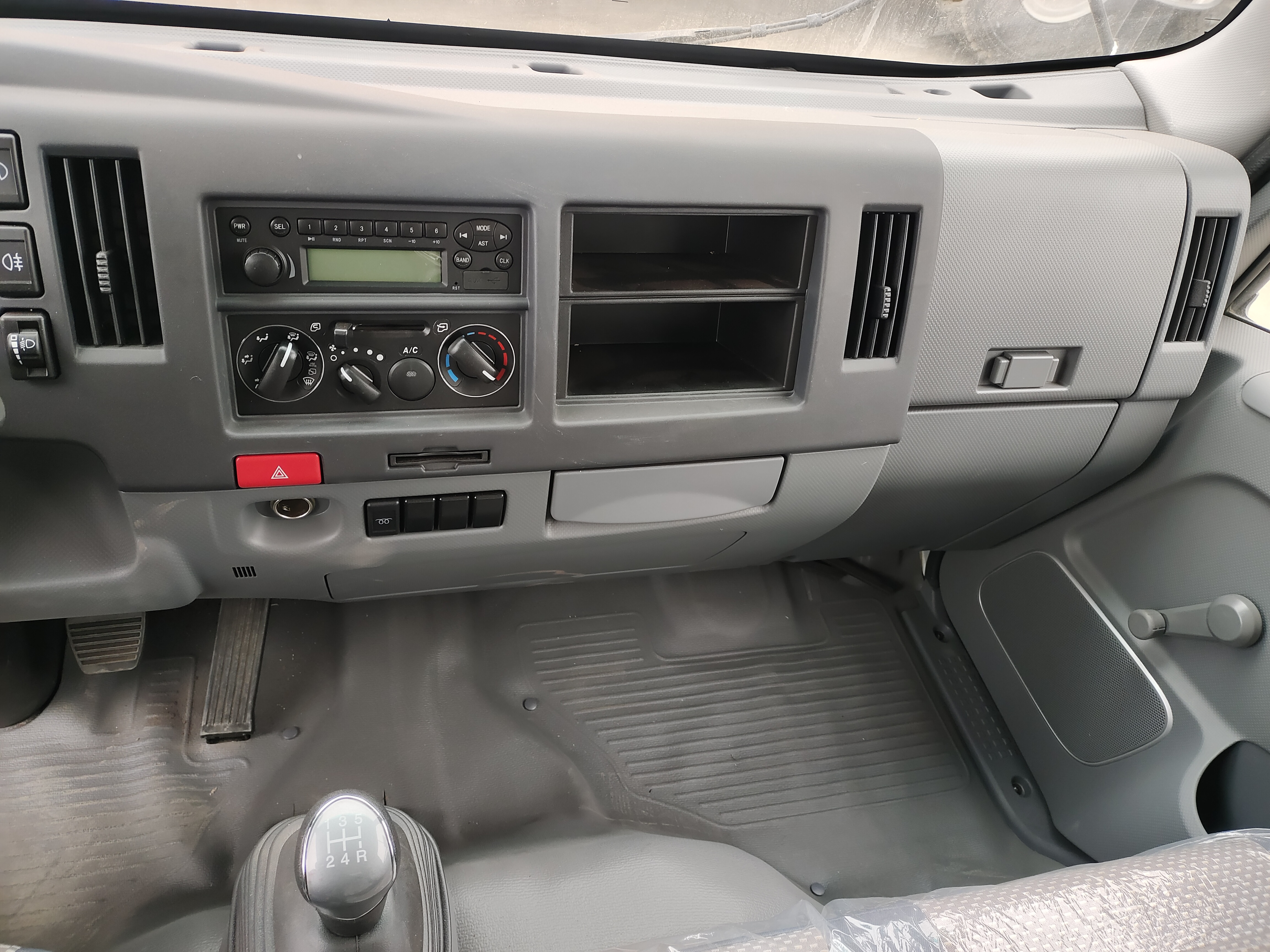

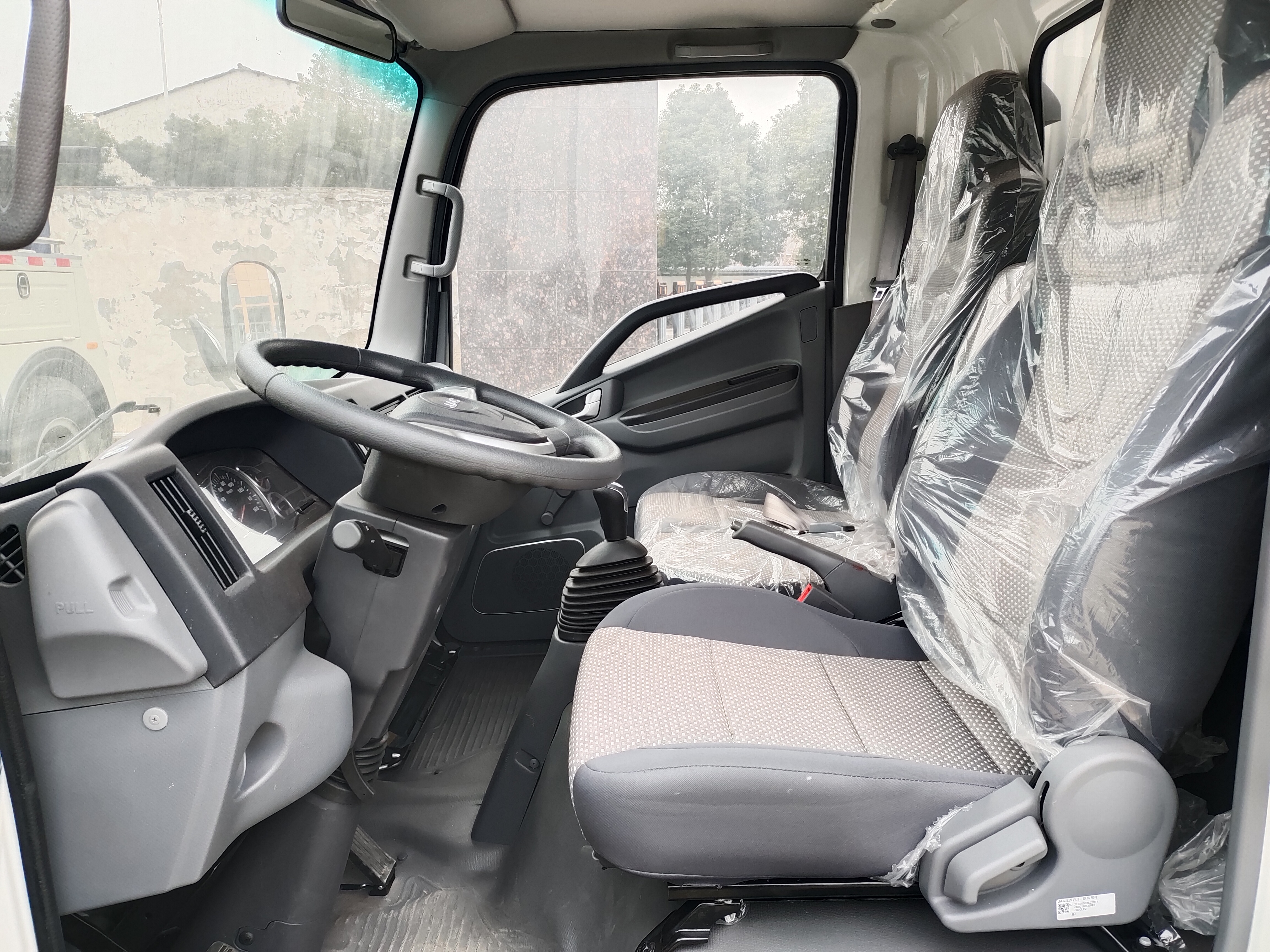

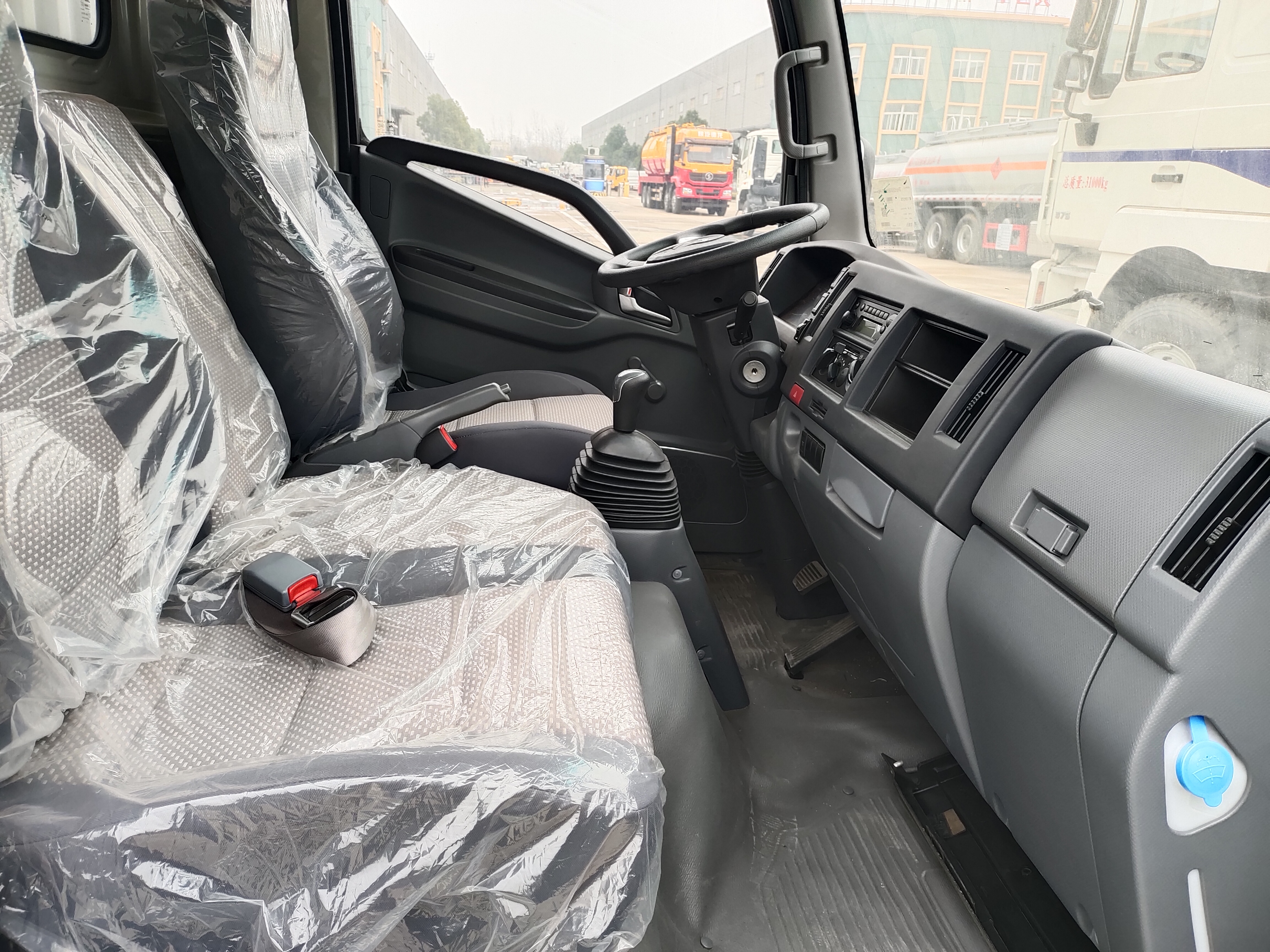

Cabin / Passenger capacity | New model N721,single row,luxury configuration,power clutch,1 passenger + 1 driver,tilting system,MP3,A/C | |
Chassis | Overall dimension | 5100x1900x2320mm (L*W*H) |
Dump box dimension | 3200x1800x370mm (L*W*H) | |
Curb weight | 2750 kgs | |
Design load | 2500 kgs | |
Drive type | 4x2 | |
F/R suspension | 1110/1045 mm | |
Wheelbase | 2800 mm | |
Number of axles | 2 | |
Axle-load | 1610/2865 kgs | |
Approach/Departure angle | 20/17° | |
Number of leaf spring | 8/4+6 | |
F/R track | 1440/1425 mm | |
Tire ( No. & specification) | 7.00R16 12PR, 6+1pcs | |
Max speed | 90 km/h | |
Brake system | Hydraulic braking | |
Steering | Left hand drive with power steering | |
Transmission | LC5T255M3,mechanical,5 forward + 1 reverse gears | |

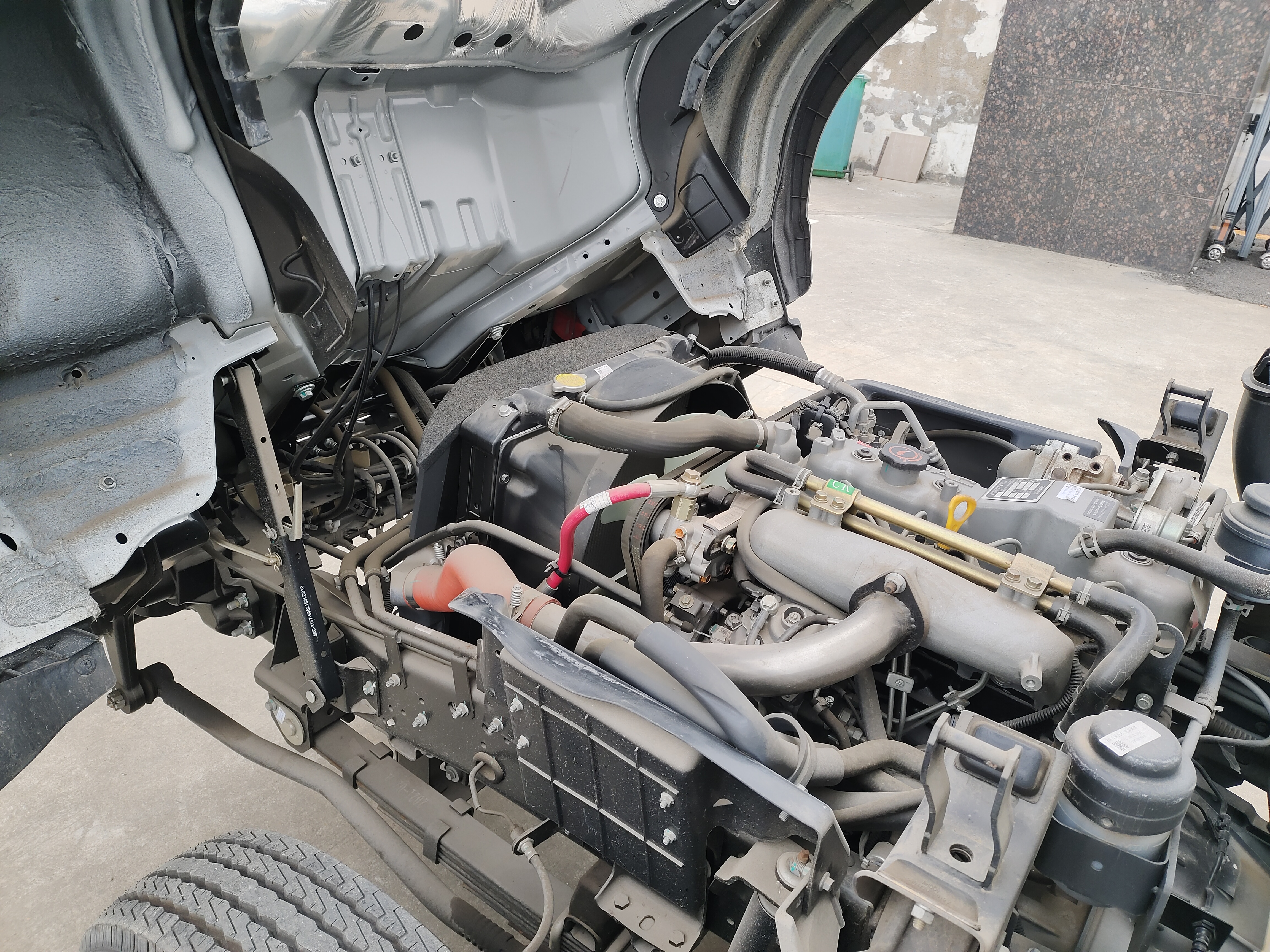

Engine | Engine model | HFC4DA1-1 |
Max.power | 68KW(92HP) | |
Description | In line,water cooled,four strokes,turbo charged,inter cooled, direct injection,diesel engine | |
Rated revolution | 3600rpm | |
Max torque | 225N.m@1800~2200 rpm | |
Exhaust | 2771 ml | |
Emission standard | Euro 2 | |
Dump box | Material | Carbon steel |
Thickness and rear plate | Side 2mm,bottom 3mm | |
Lifting system plate | Hydraulic middle lifting | |
Painting | Description | With sand blasting,painted with epoxy paint,finished color |
Warranty | Year | 1 |
