| Quantity: | |
|---|---|
JX1054

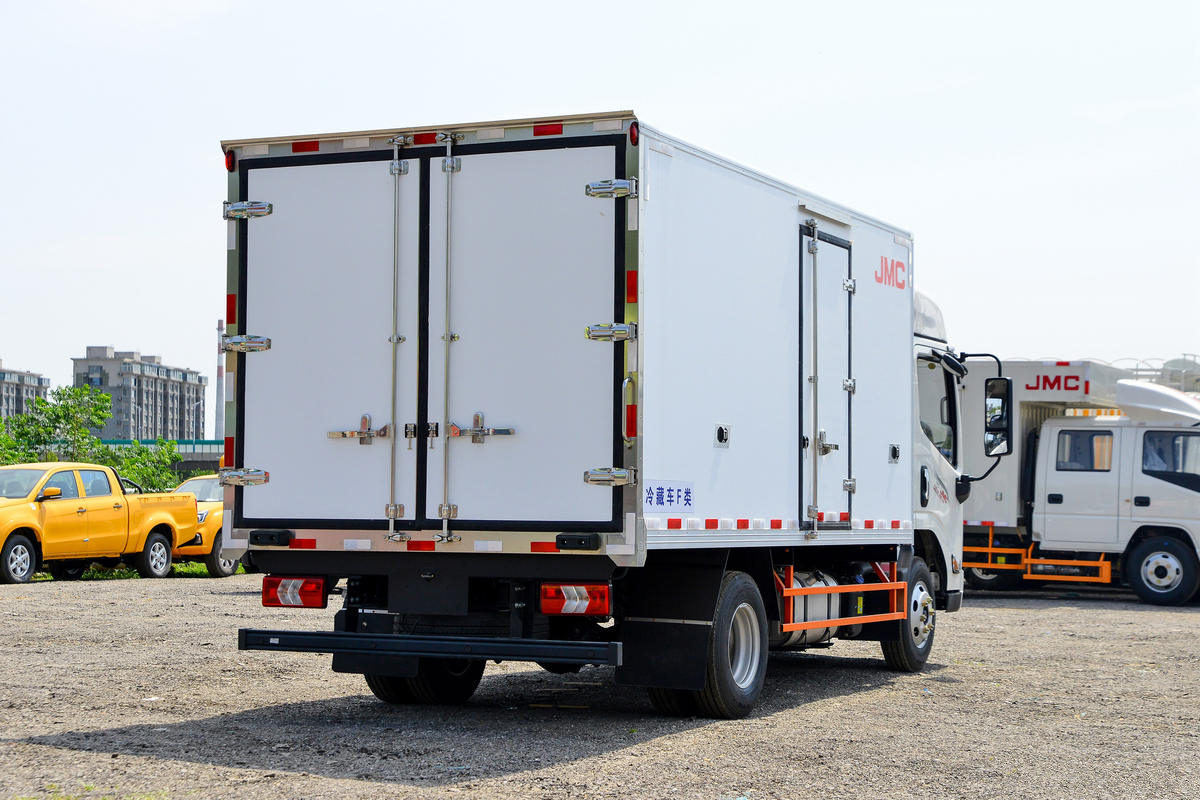

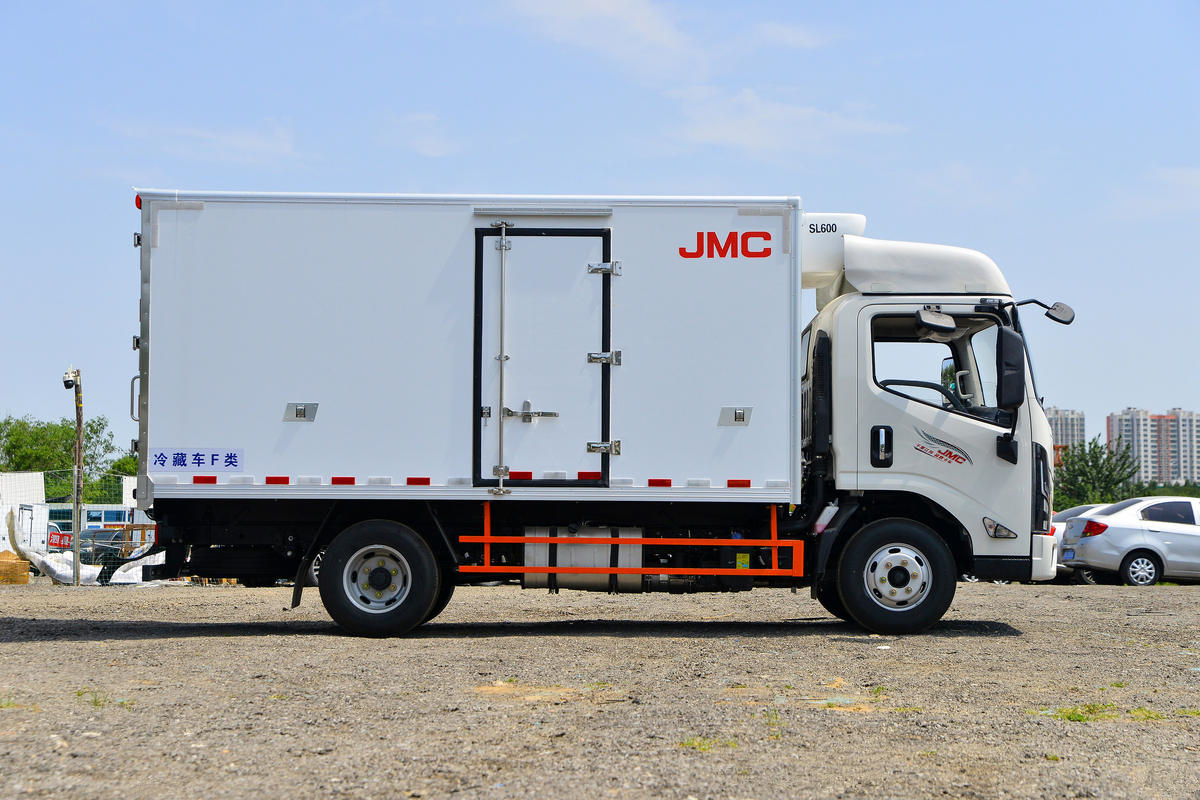

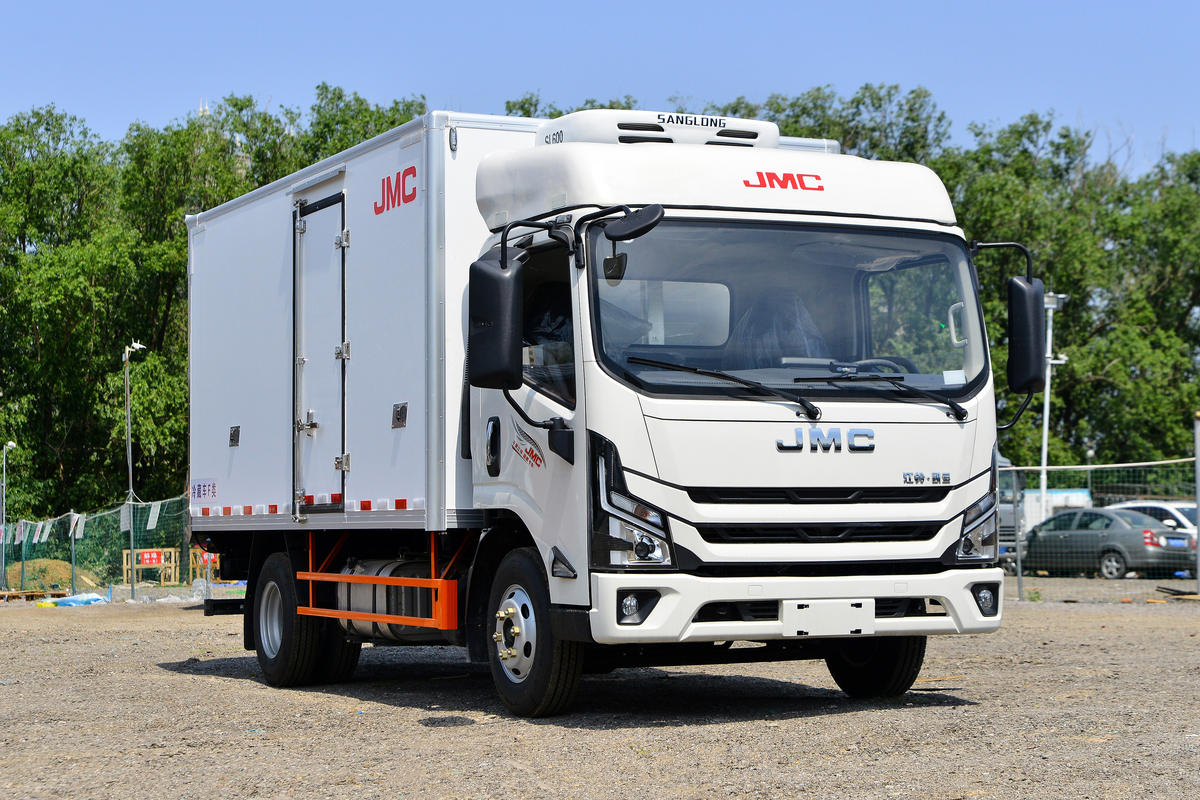

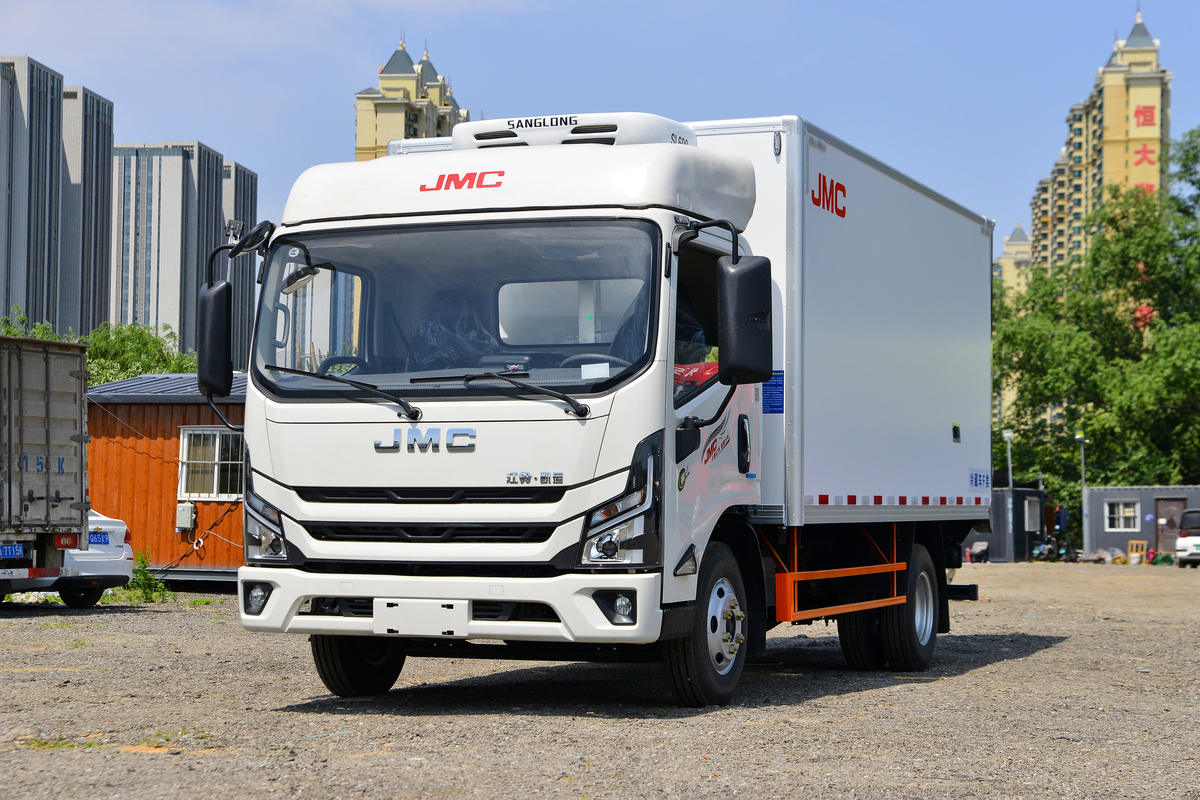

JMC T822
8704 2100.00
Product brand | JMC | |

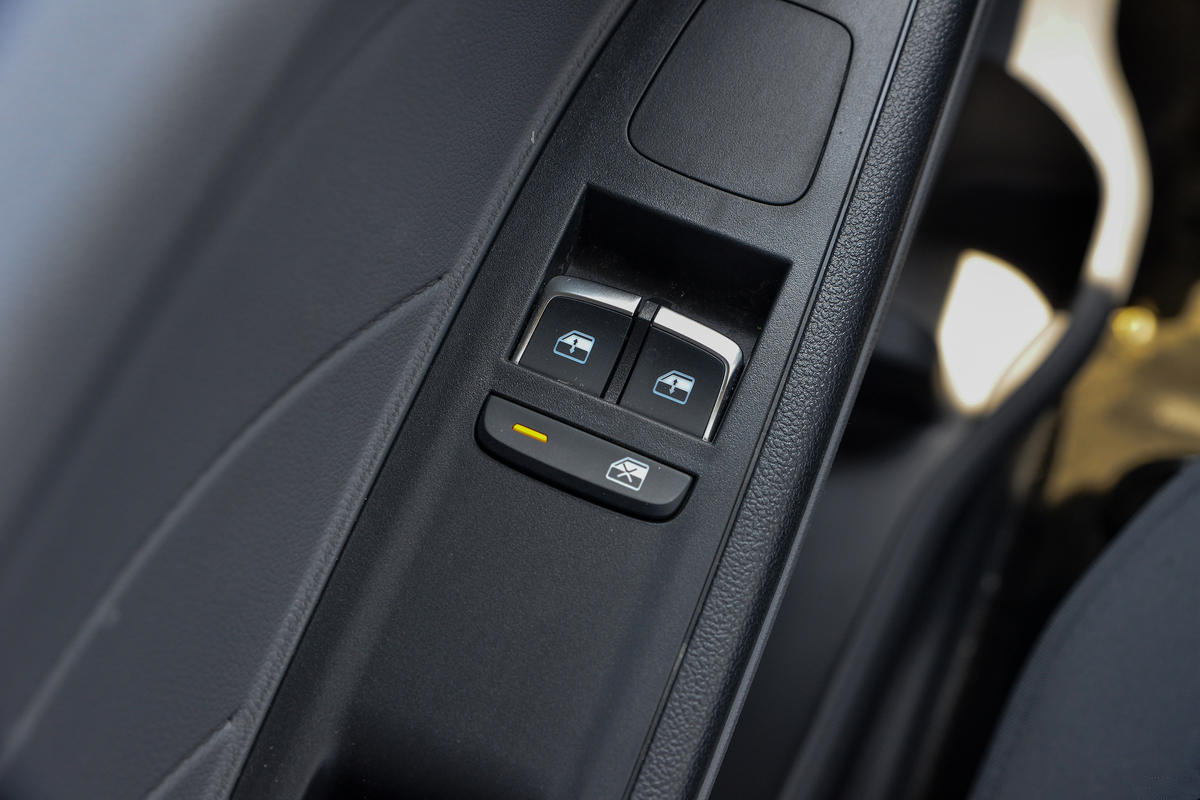

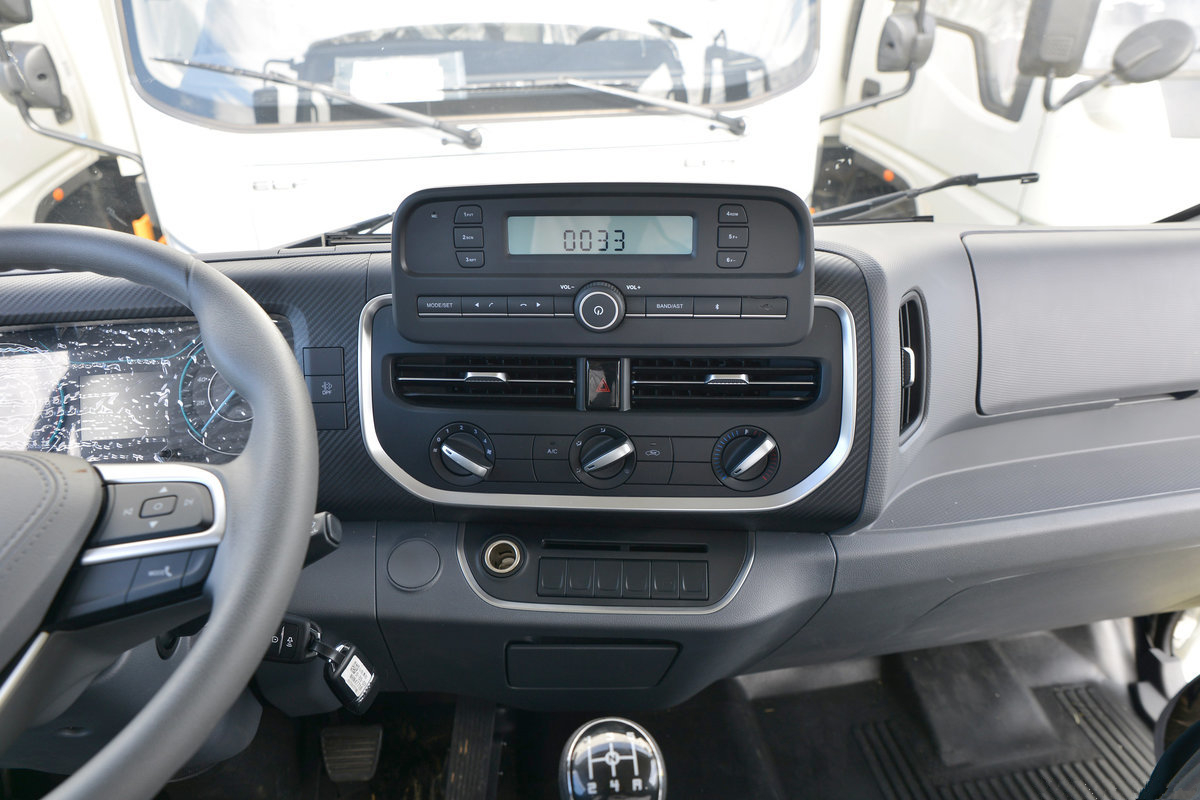

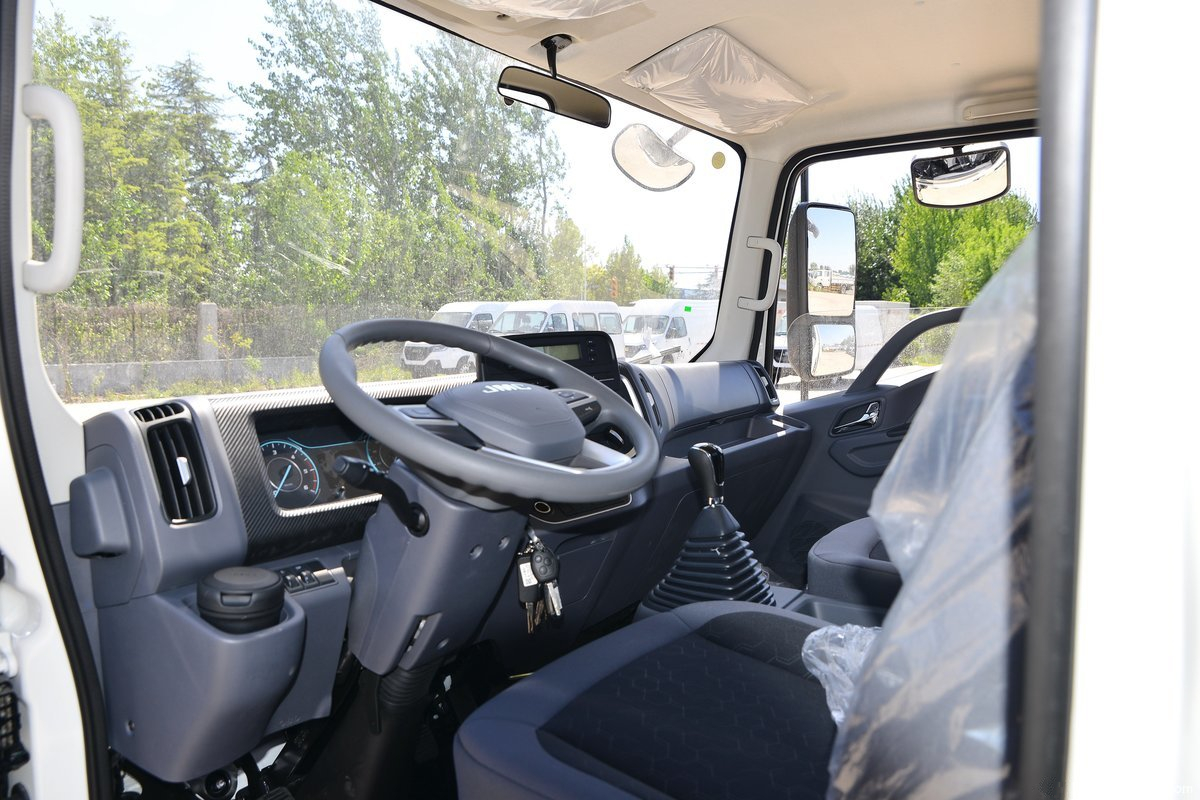

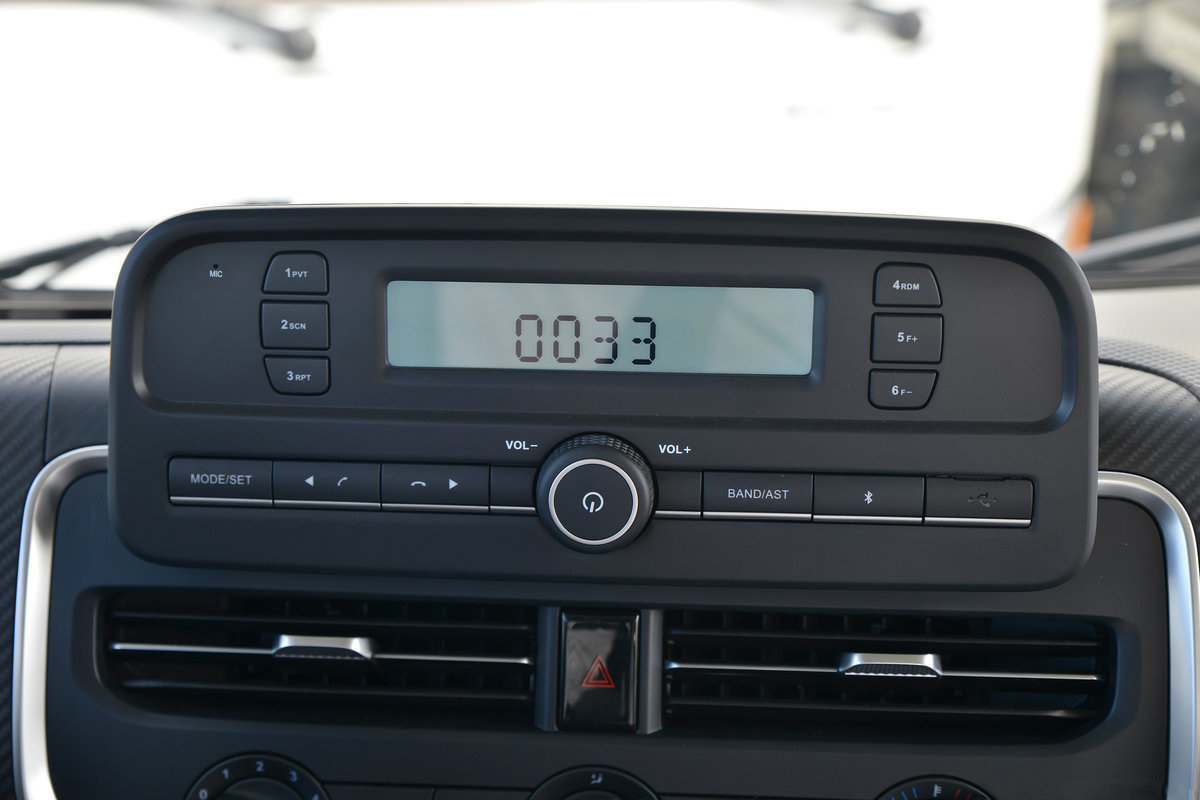

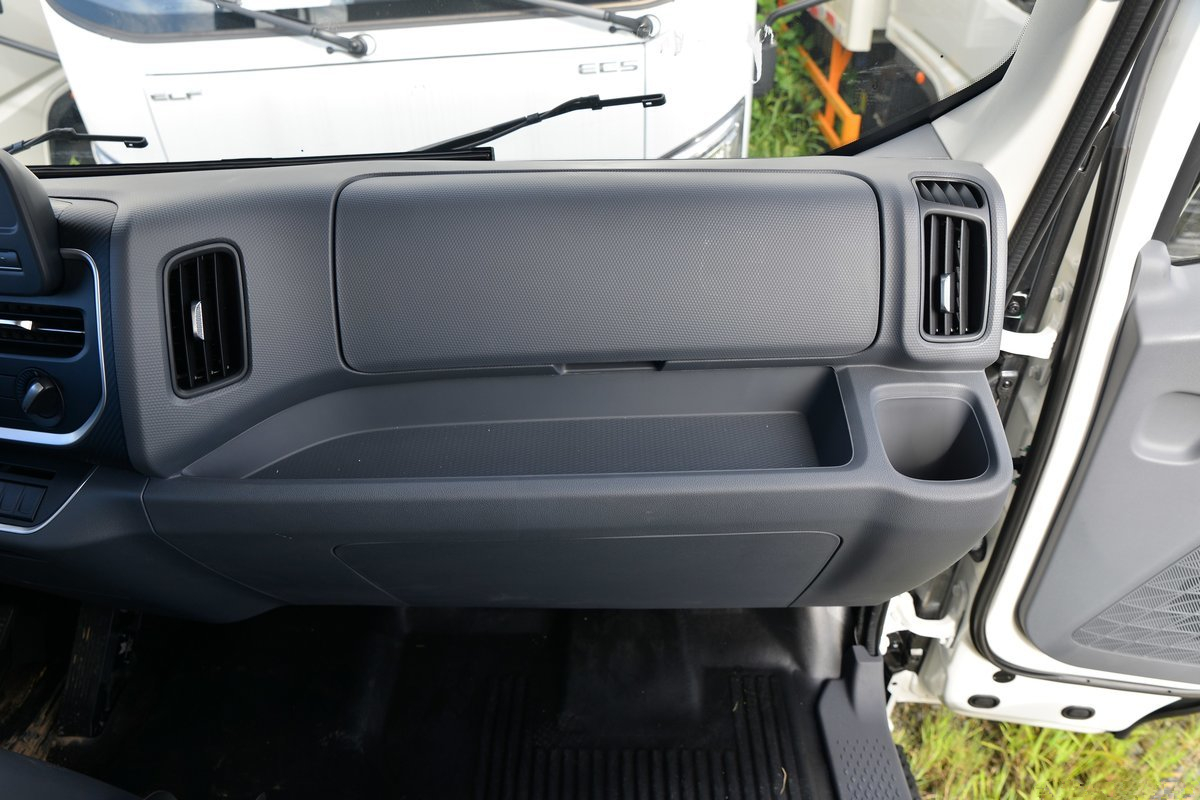

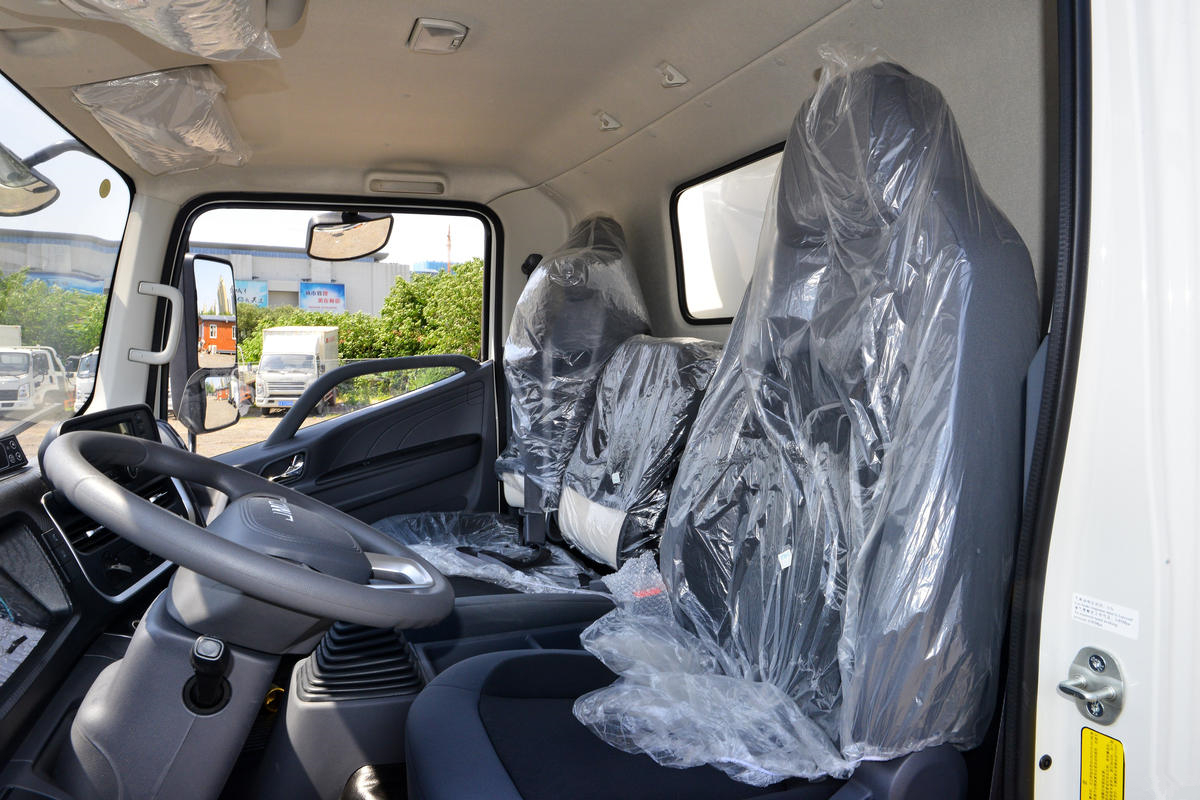

Cabin / Passenger capacity | New model T822,single row,luxury configuration,power clutch,2 passengers + 1 driver,front lifting,radio+MP3+USB interface,remote key,air conditioner,electric windows | |
Chassis | Model | JX1060 |
Overall dimensions | 5990x2100x3115mm (L*W*H) | |
Curb weight | 3200 kgs | |
Design load | 2800 kgs | |
Drive type | 4x2 | |
F/R suspension | 1115/1515 mm | |
Wheelbase | 3360mm | |
Number of axles | 2 | |
Axle-load | 2000/4000kgs (one rear driving axle） | |
Approach/Departure angle | 18/17° | |
Number of leaf spring | 3/8+3 | |
F/R track | 1585/1570mm | |
Tire ( No. & specification) | 6+1pcs, 7.00R16 | |
Max speed | 100 km/h | |
Brake system | Hydraulic braking | |

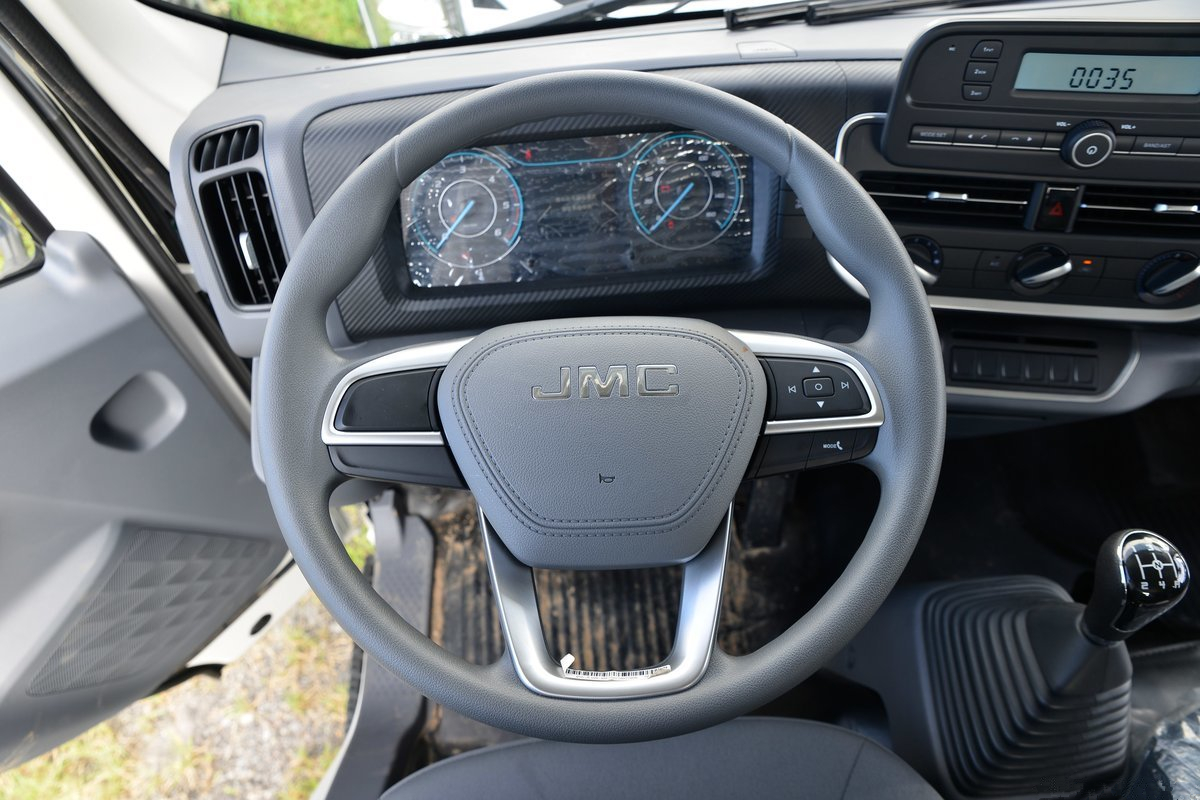

Steering | Left hand drive with power steering | |
Transmission | JC528T8,mechanical,5 forward + 1 reverse gears | |
Engine | Engine model | JX493ZQ4A (Euro II) |
Max.power | 68KW(92HP) | |
Description | In line,water cooled,four strokes,turbo charged,inter cooled, direct injection,diesel engine (ISUZU technology) | |
Rated revolution | 3600rpm | |
Max torque | 210N.m@2000rpm | |
Exhaust | 2771ml | |
Van box | Dimension | 4000x1960x2100mm (L*W*H) |
Material | FRP(fiber reinforced plastic) in the surface,polyurethane (80mm) sheathing board in the middle | |
Refrigerator | Hanxue,L-Z35 | |
Working temperature inside | -15℃~ +5℃ | |

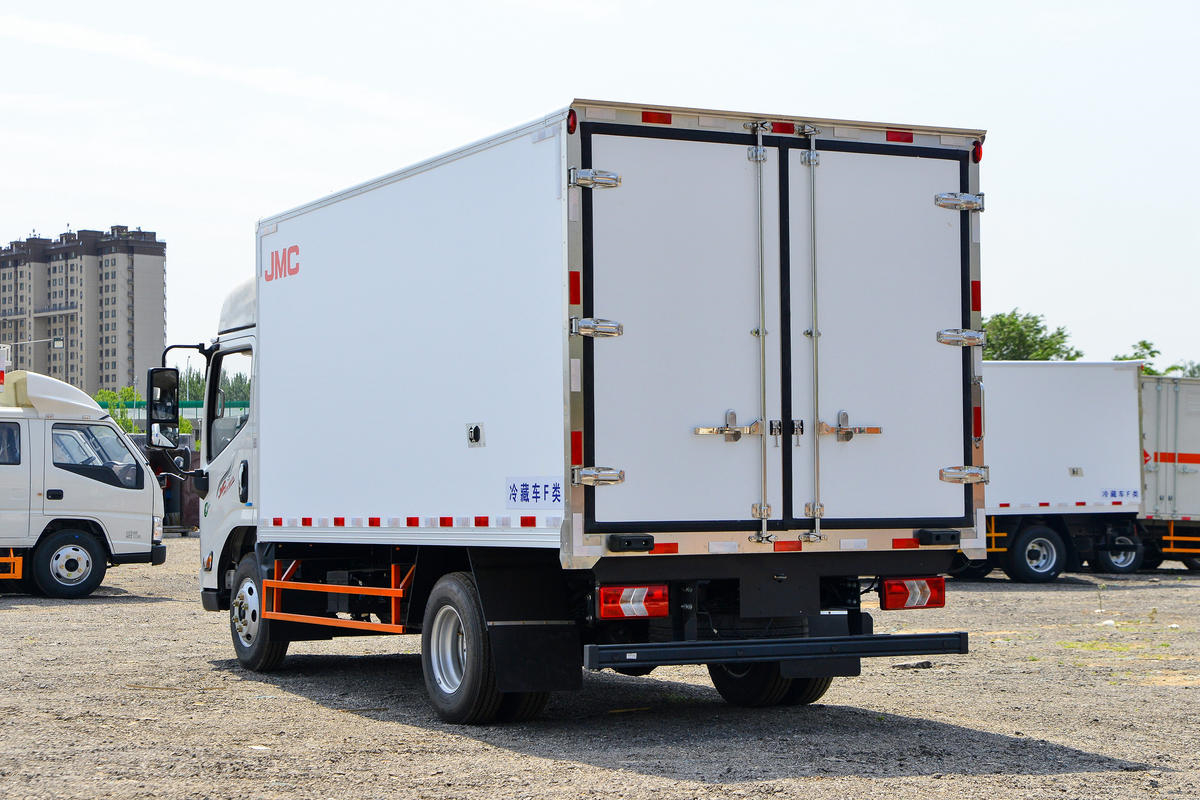

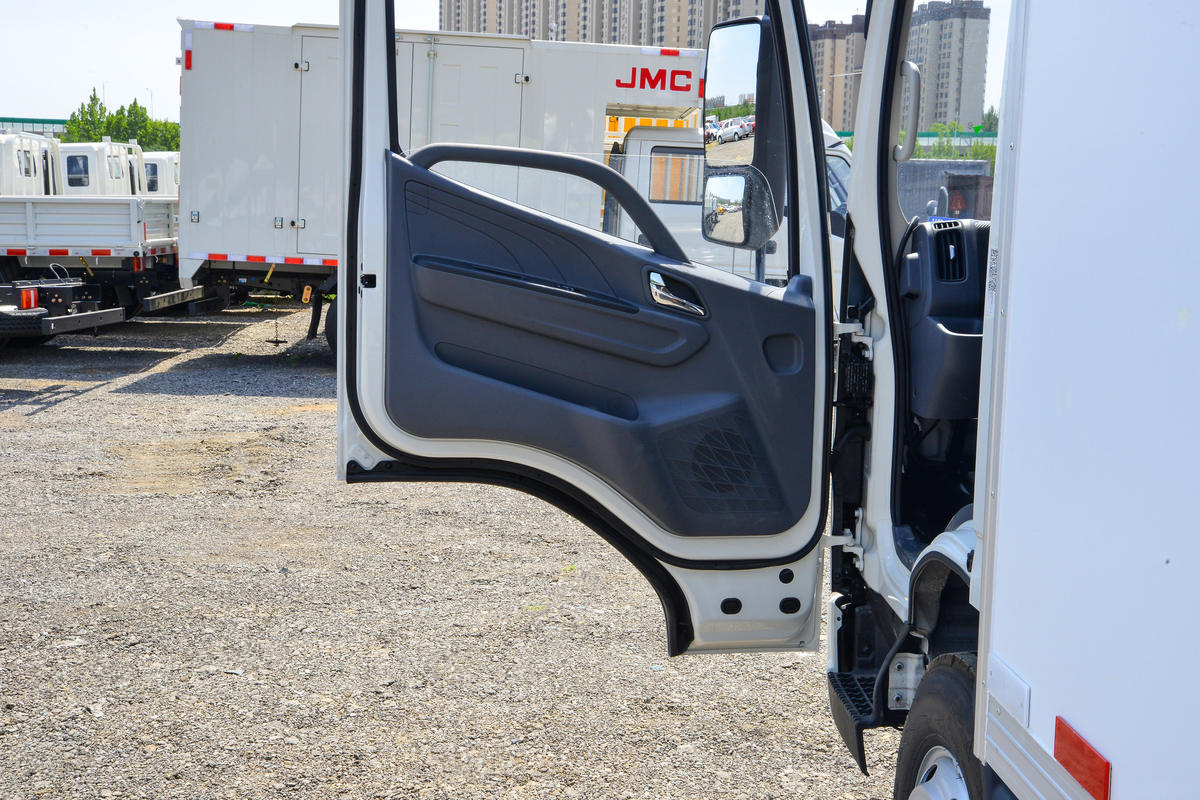

Opening type | Rear 2 doors,right 1 door | |
Warranty | Year | 1 |
