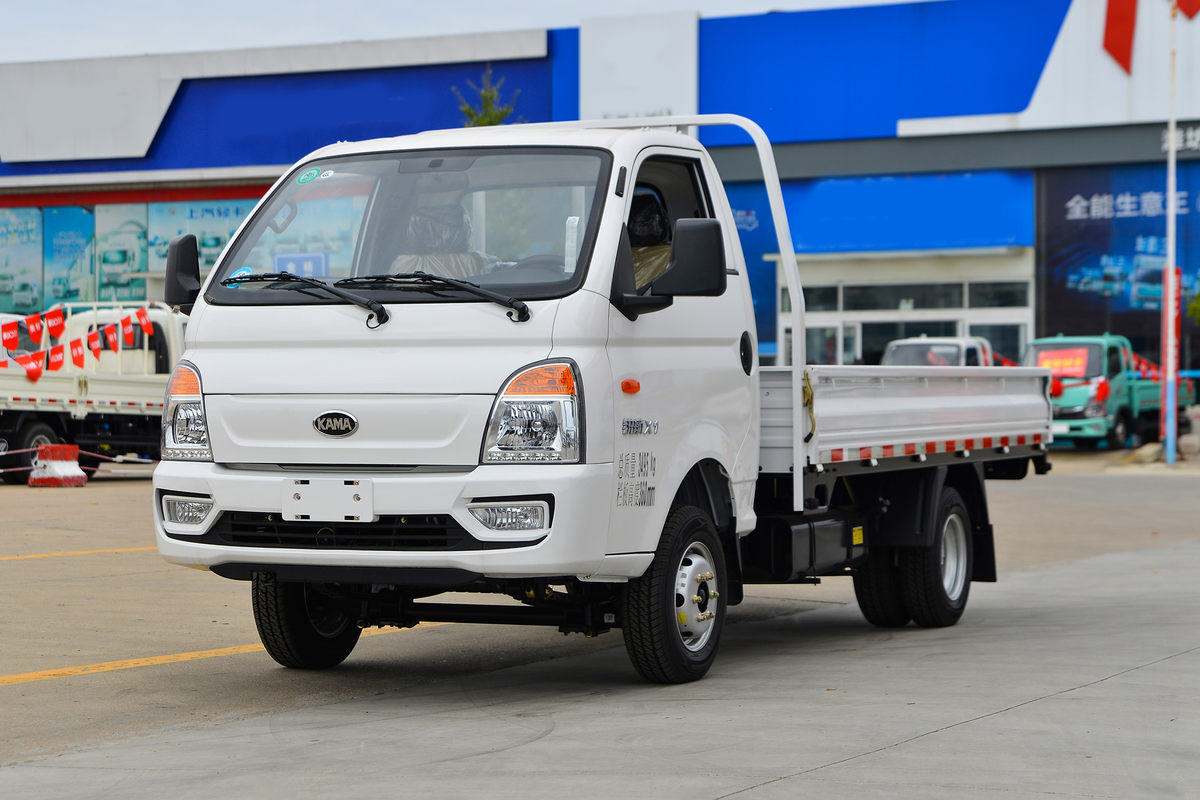

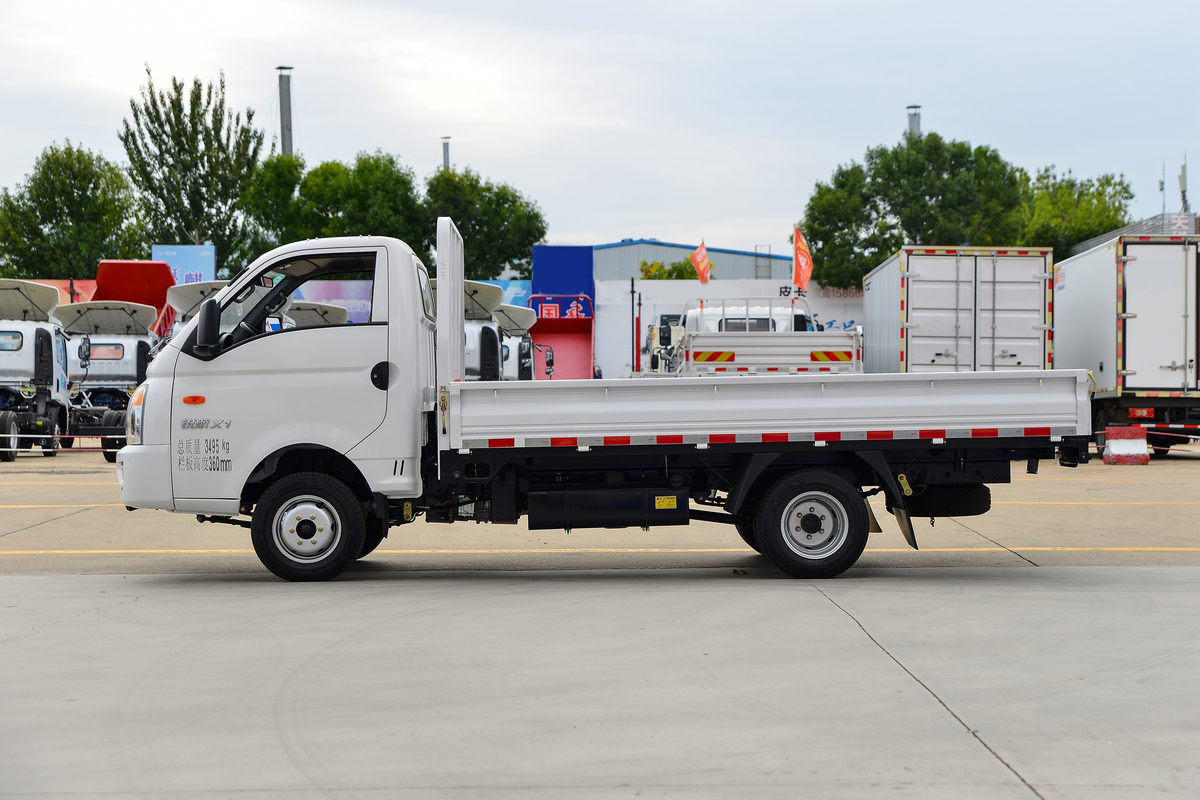

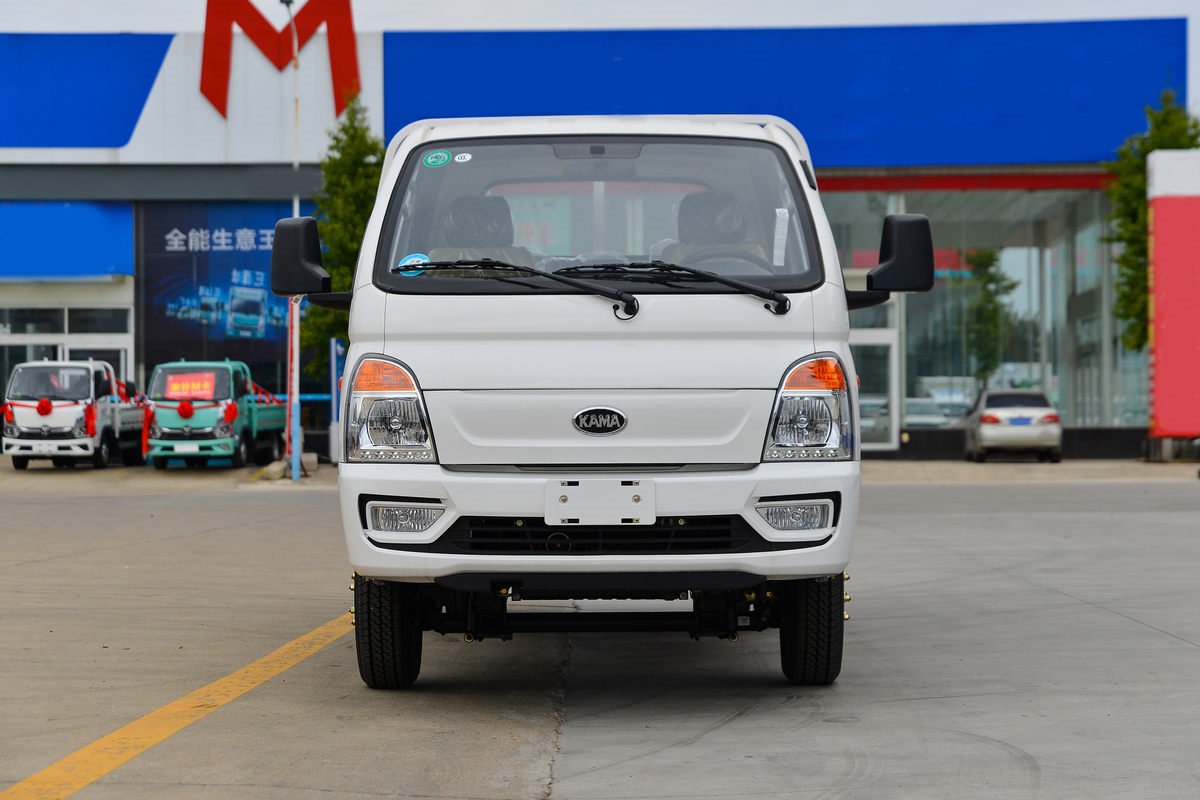

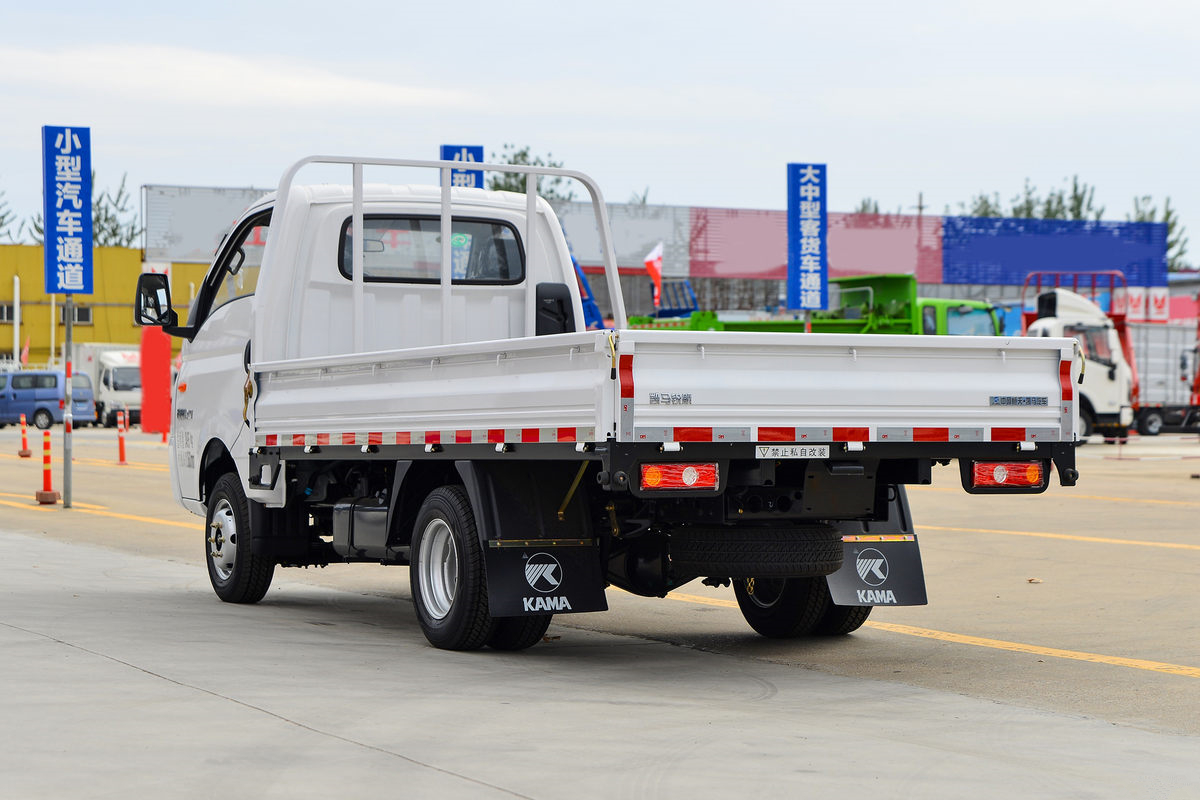

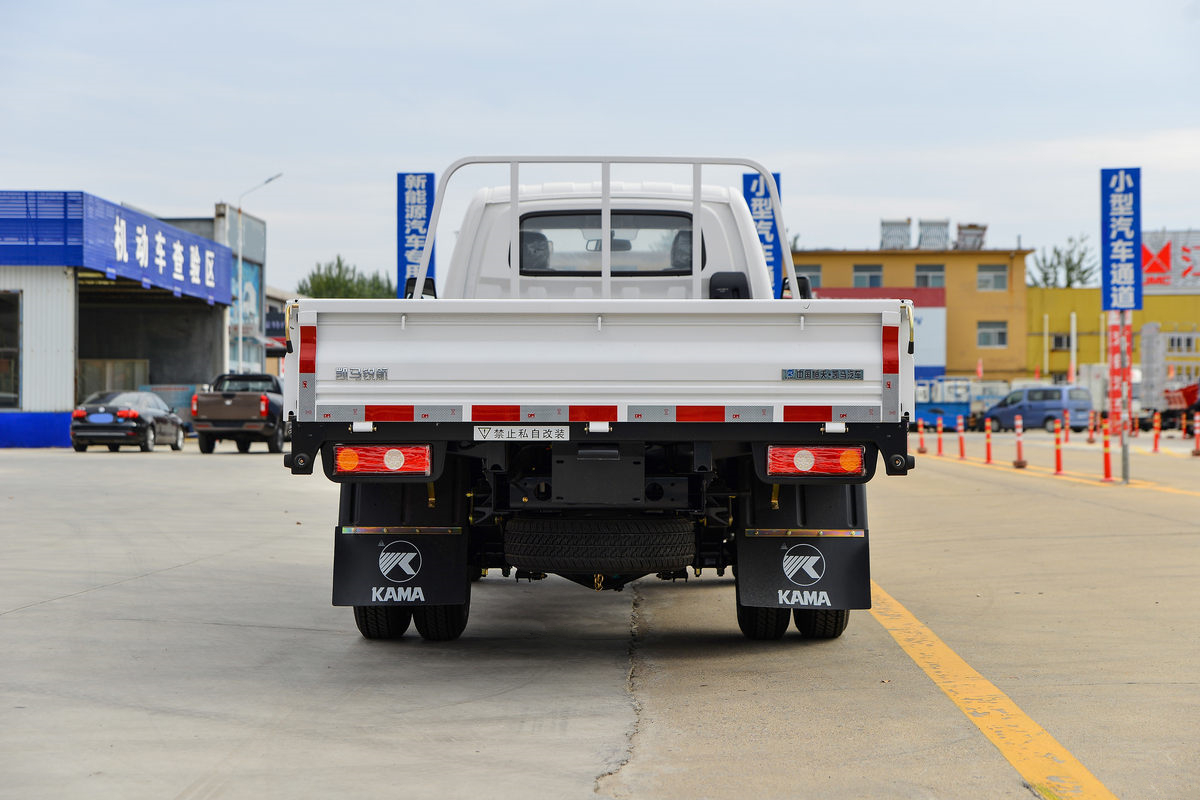

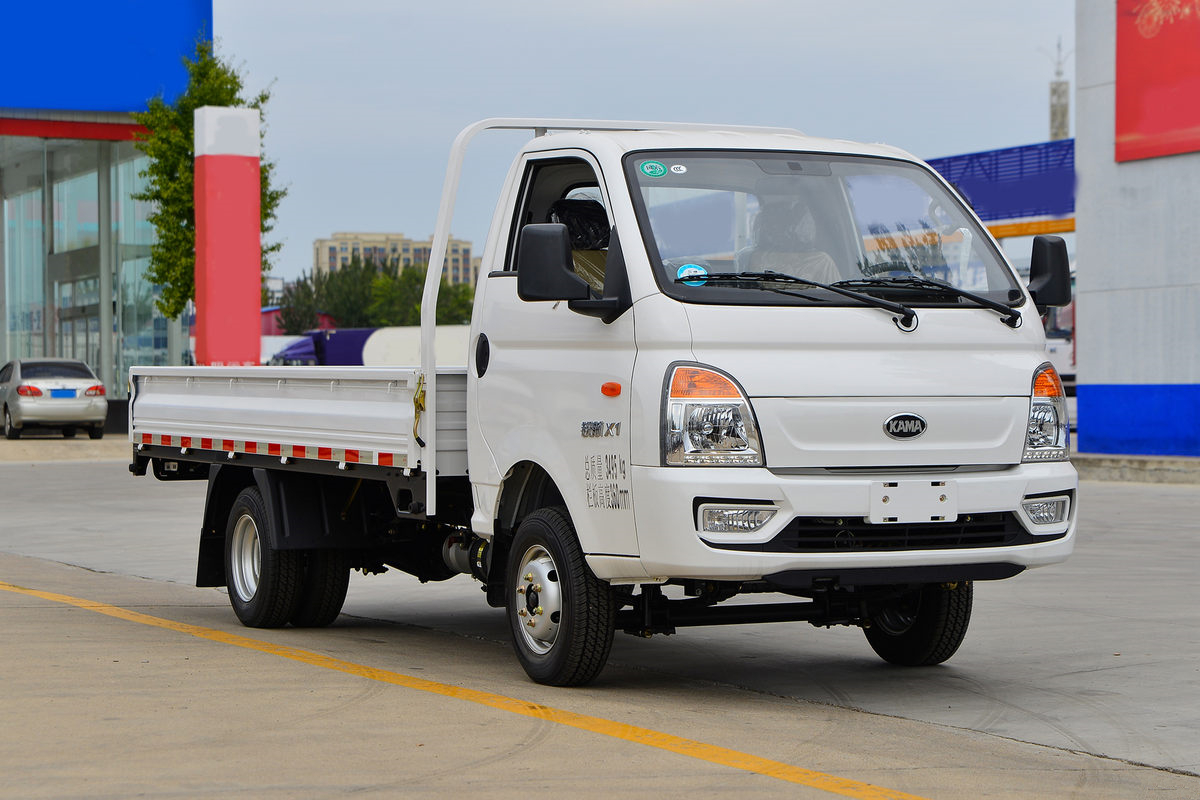

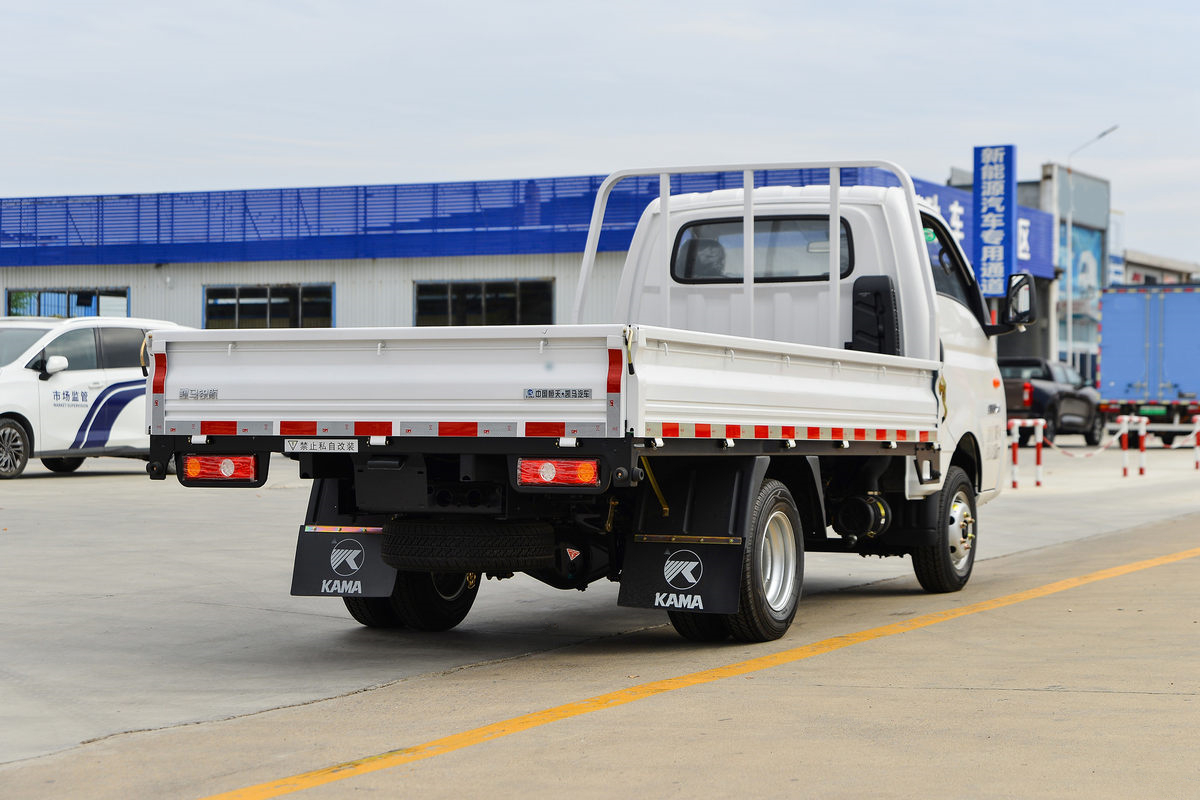

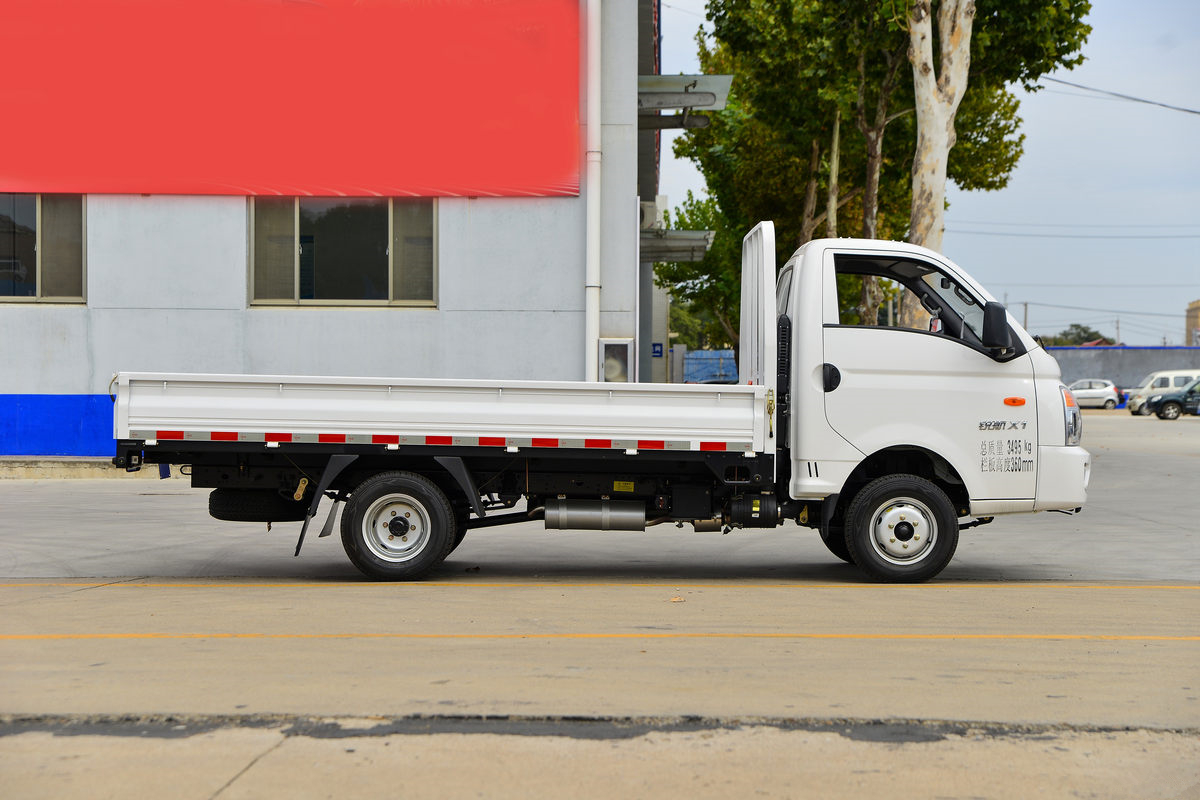

KAMA X1 Mini Cargo Truck with Gasoline Engine 120HP

Chassis model

KMC1038QA318D6B

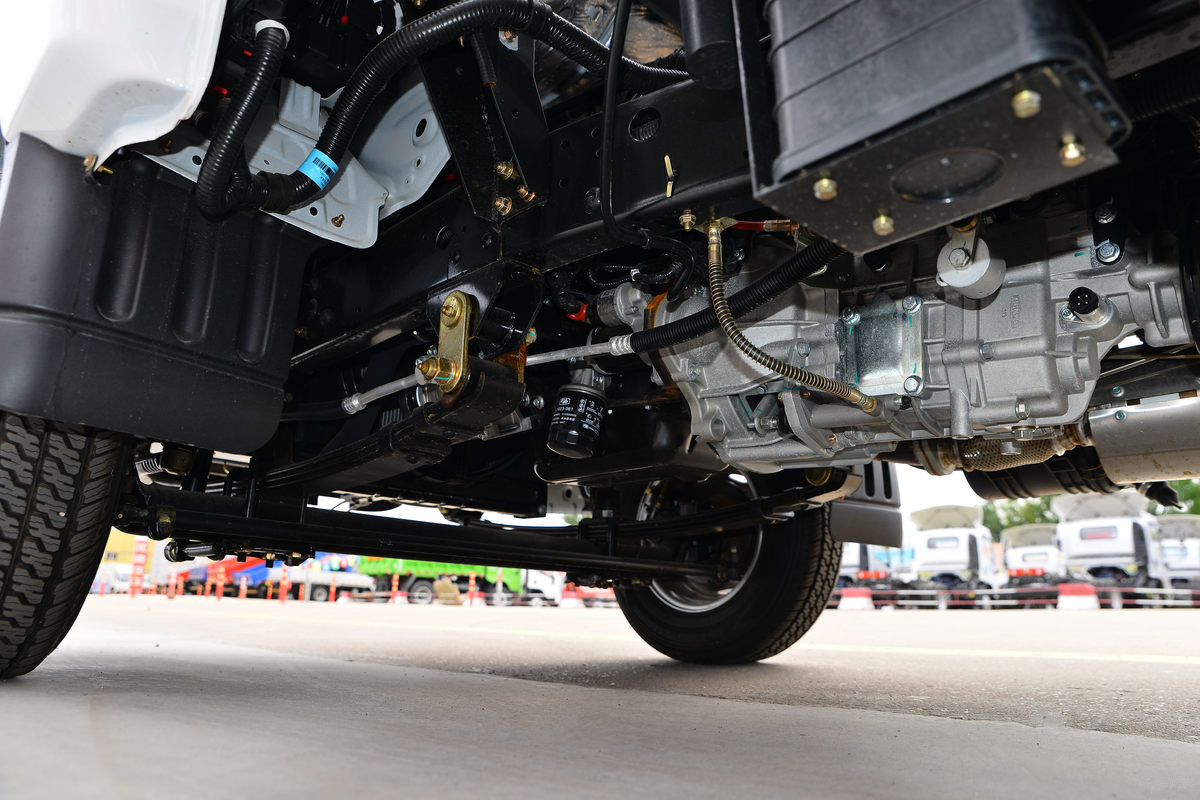

Engine

Model

G61MPI

Description

In-line/4 cylinders/normally aspirated /water cooled/

electric control/VVT/gasoline engine

Rated power of engine (kw/HP)

88/120

Maximum torque (N.m@rpm)

153@4000RPM

Displacement (ml)

1590

Emission standard

Euro VI

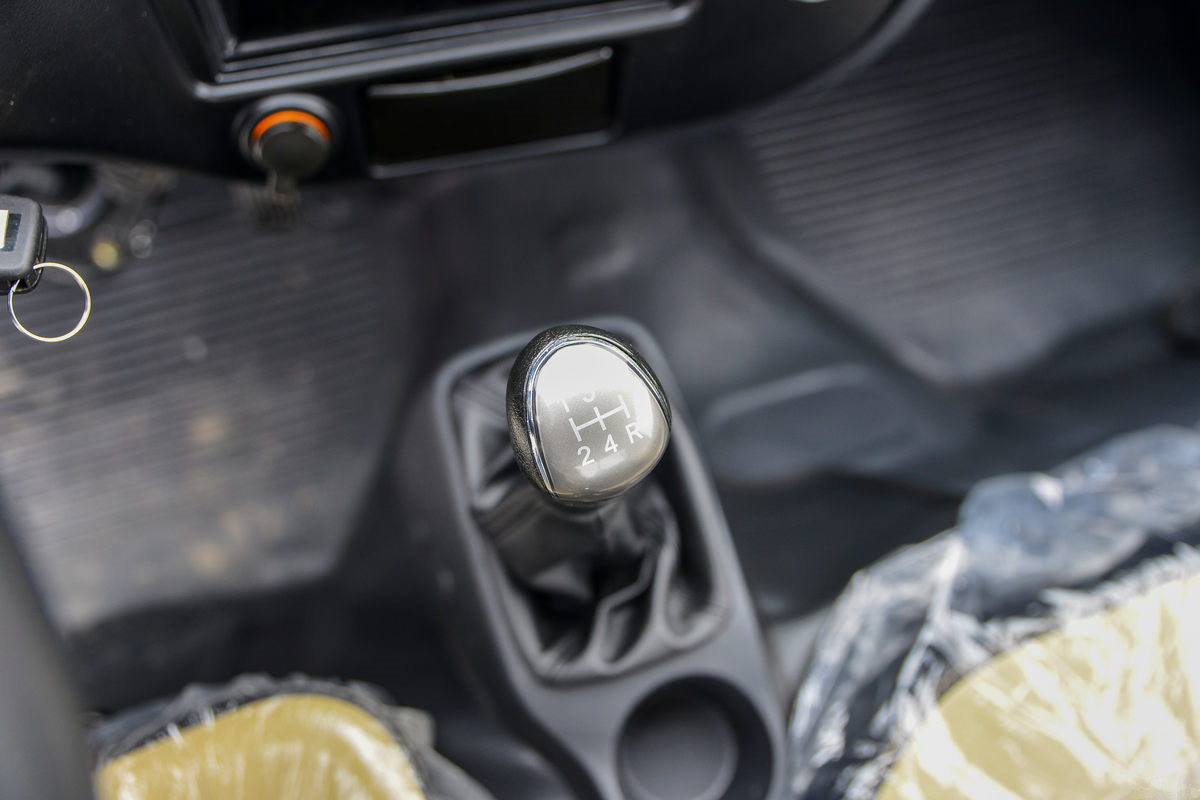

Gearbox

Description

MW5G18,manual,5 forward gears ＆ 1 reverse gear

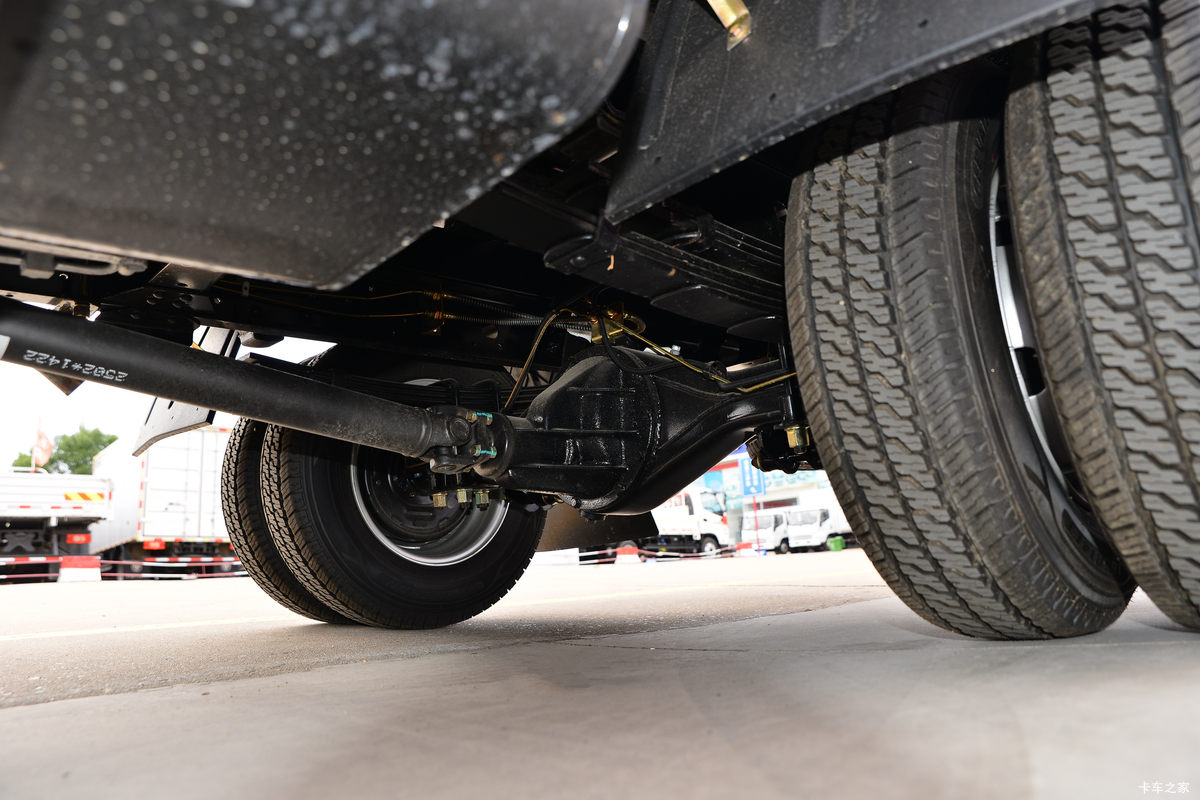

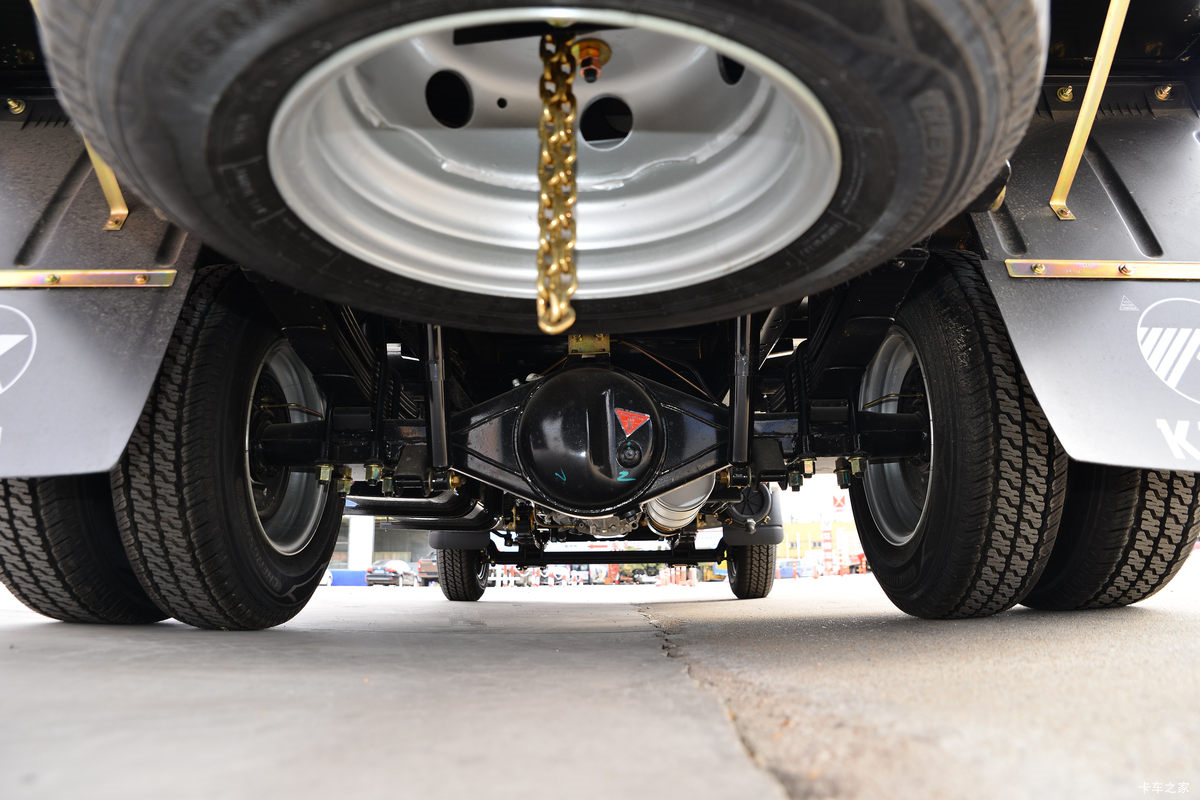

Front / Rear axle

Front axle load (Kg)

1370

Rear axle load(Kg)

2125

Drive type

4X2

Type of tire

185R14LT 6PR

Quantity of tires

6+1

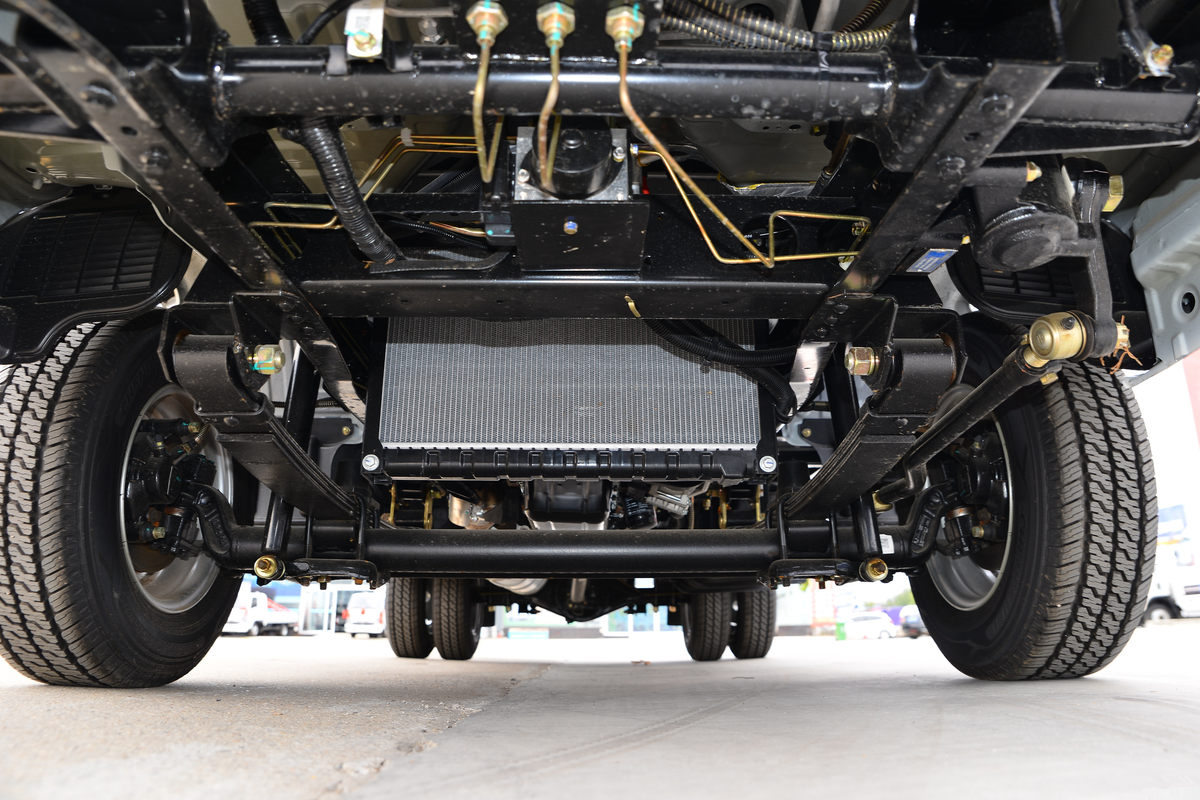

F/R leaf spring

Non-independent suspension, with auxiliary leaf spring 3/5+3

Brake system

Service brake type

Front disc brake,rear drum brake,hydraulic pressure double loop braking

ABS

Provided

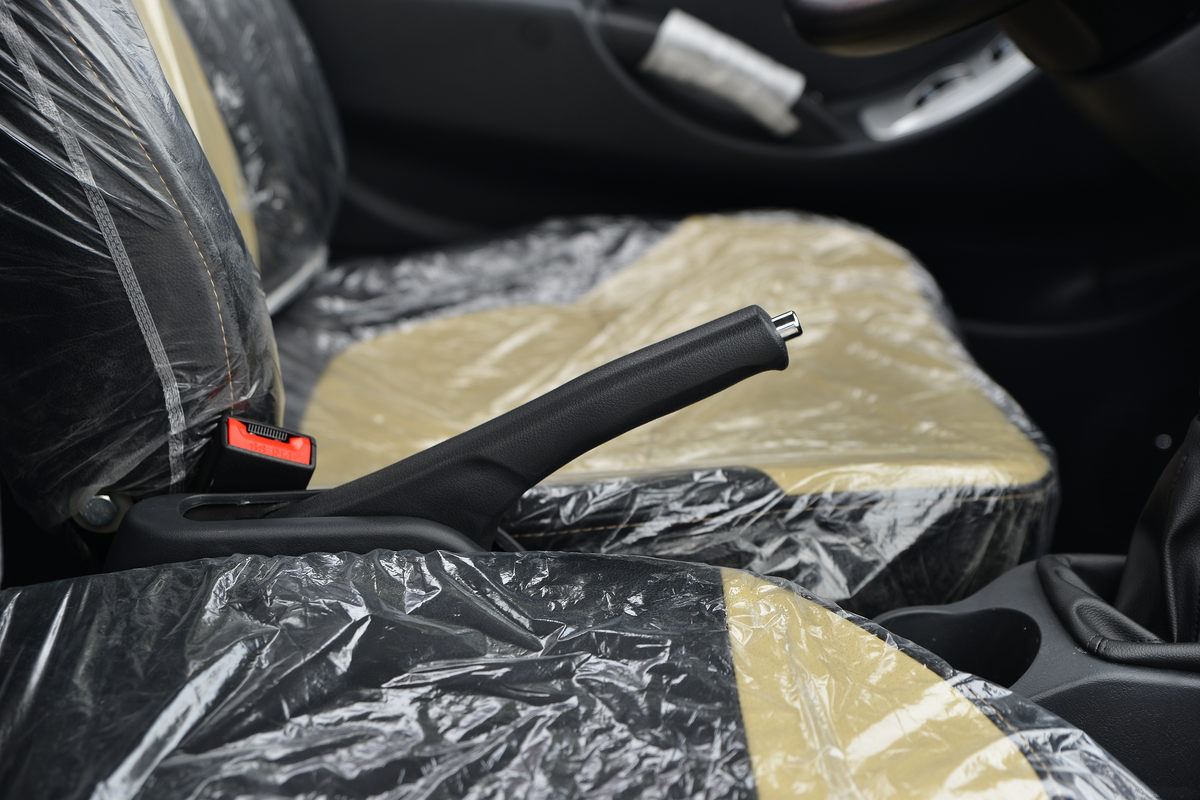

Parking brake type

Energy storage spring rear wheel braking

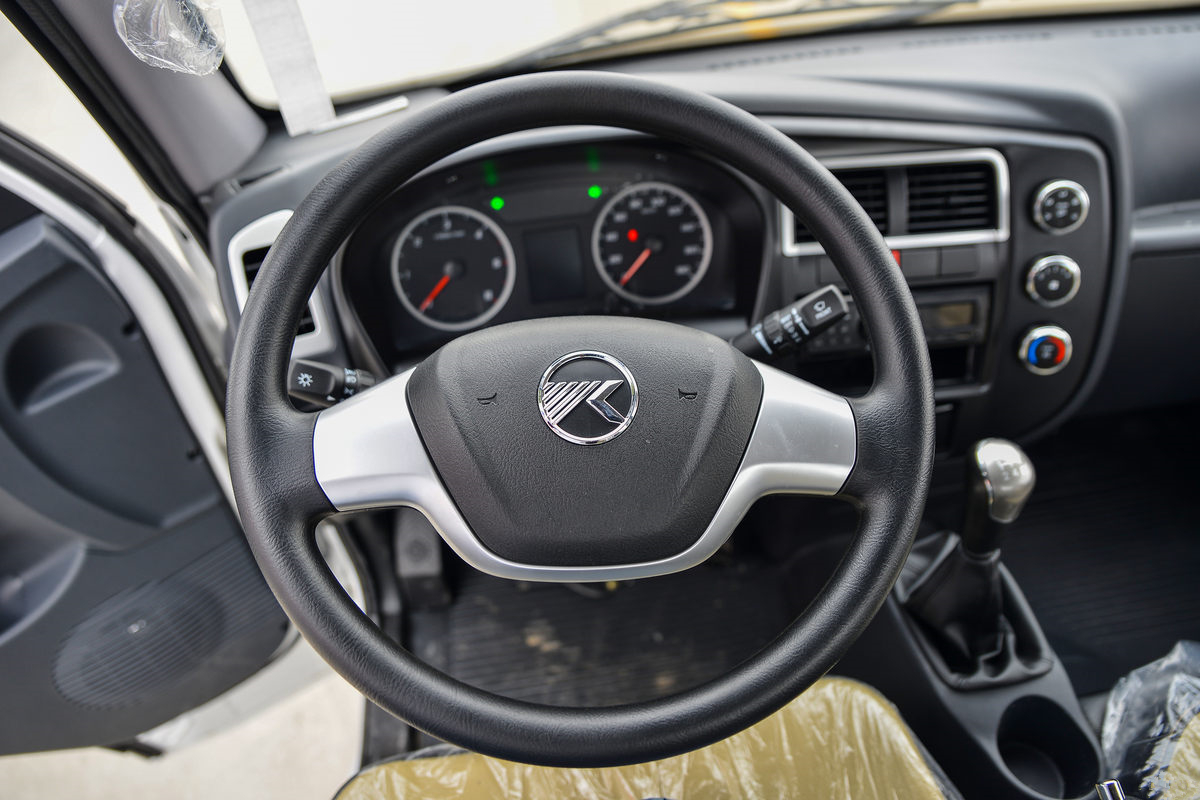

Steering device

Left hand drive,electric power steering

Weight parameter

Curb weight (Kg)

1775

Rated load capacity(Kg)

1590

Performance parameter

Maximum speed (km/h)

100

Maximum grade ability (%)

≥22%

Dimension parameters

Overall dimensions (LxWxH)mm

5680×1955×2100

Wheelbase (mm)

2900

Cargo box size(mm)

3630×1860×400

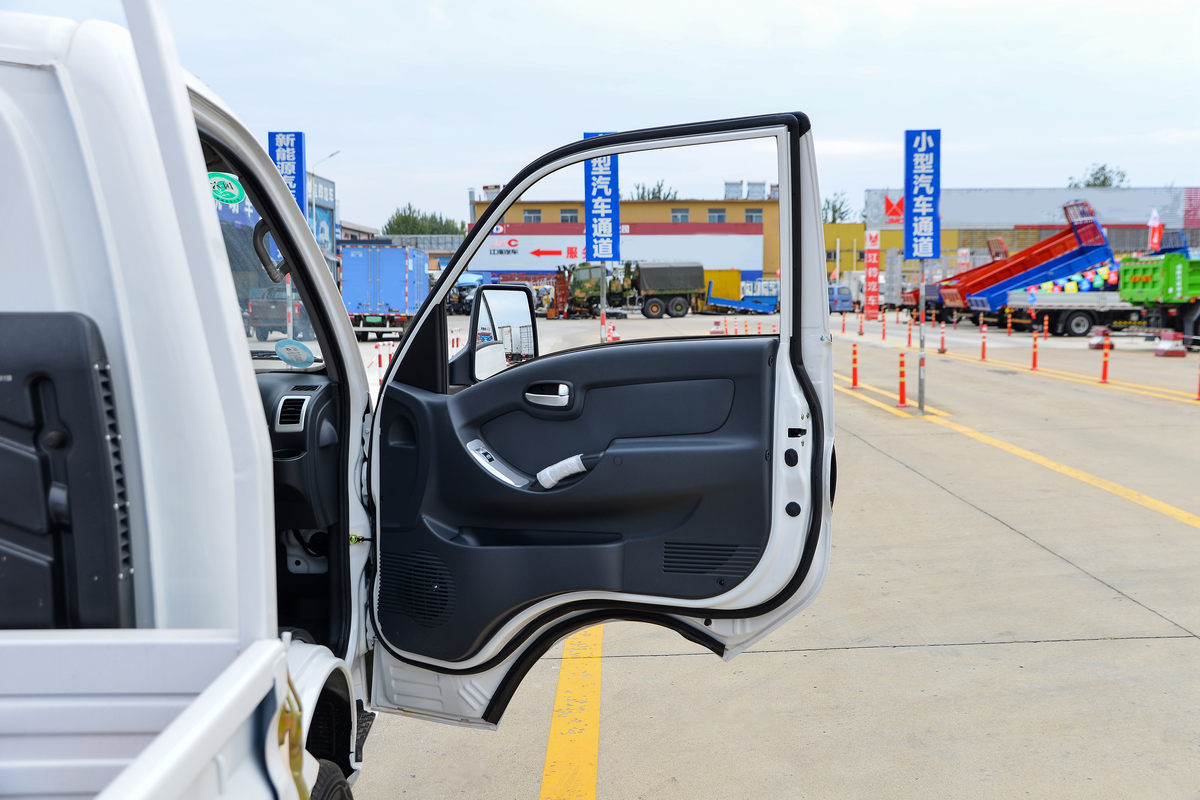

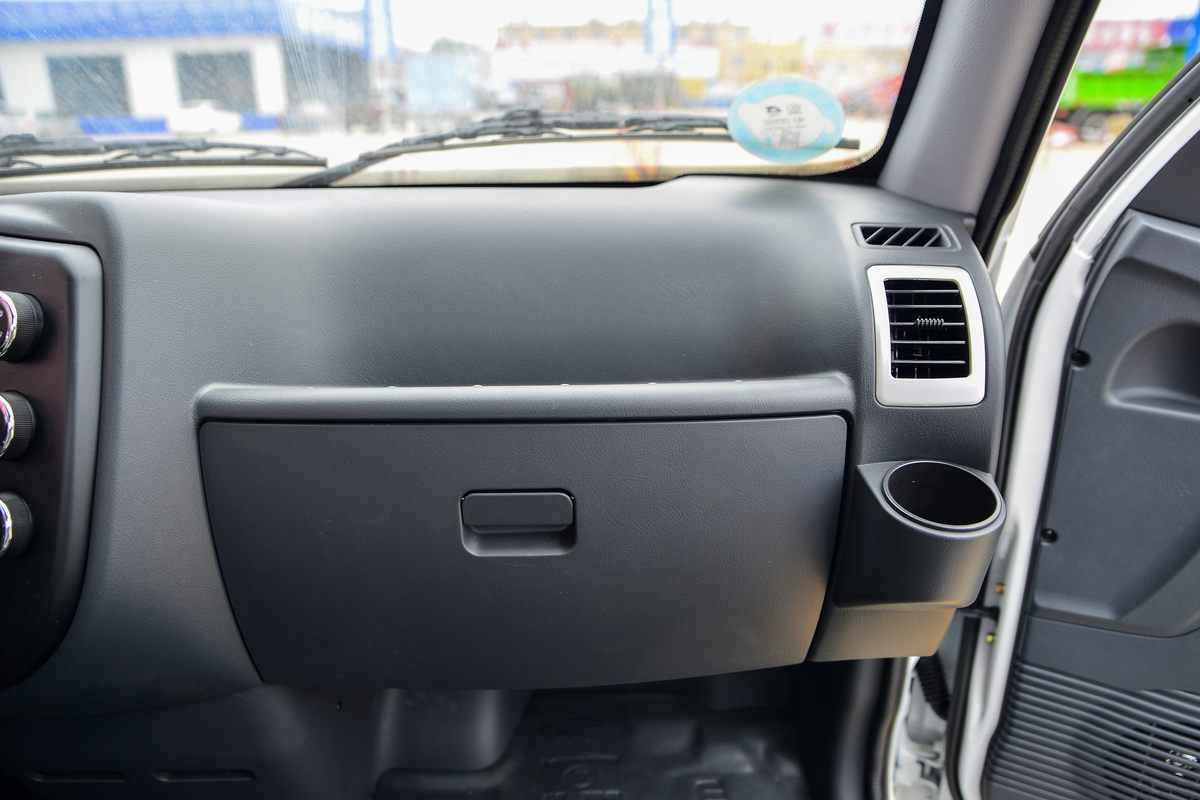

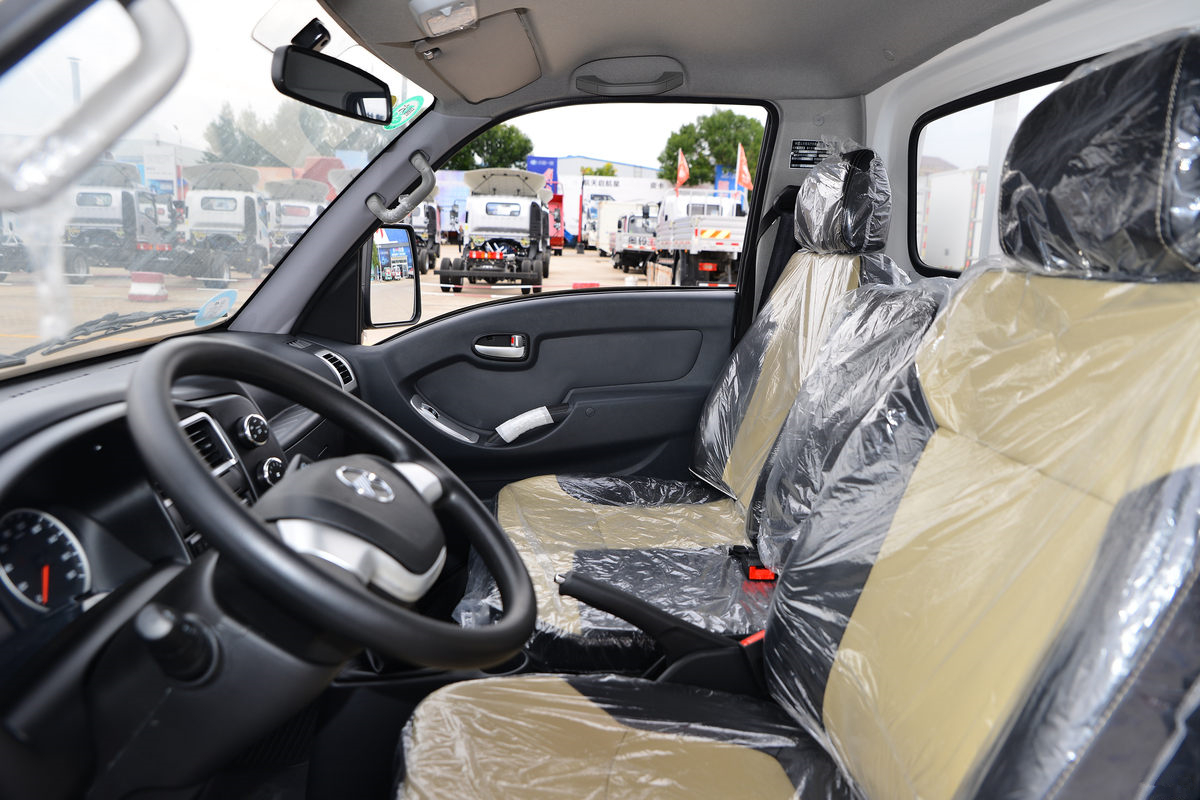

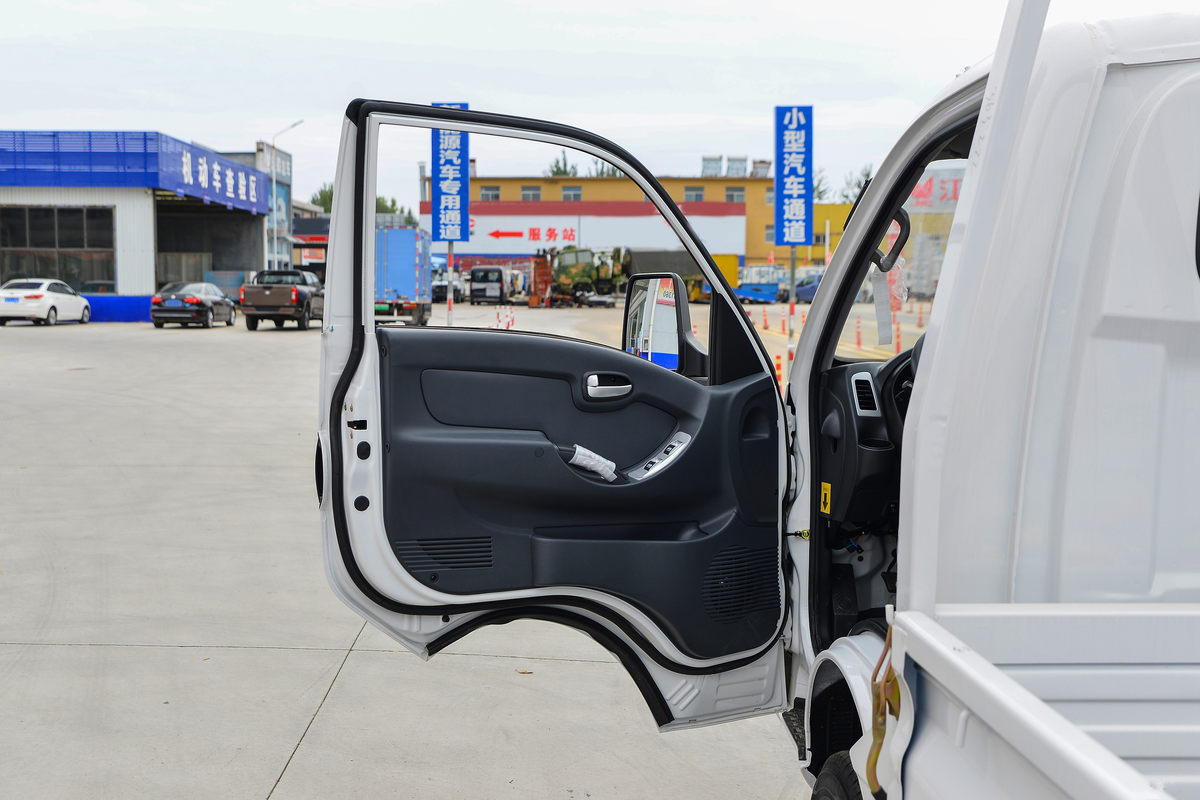

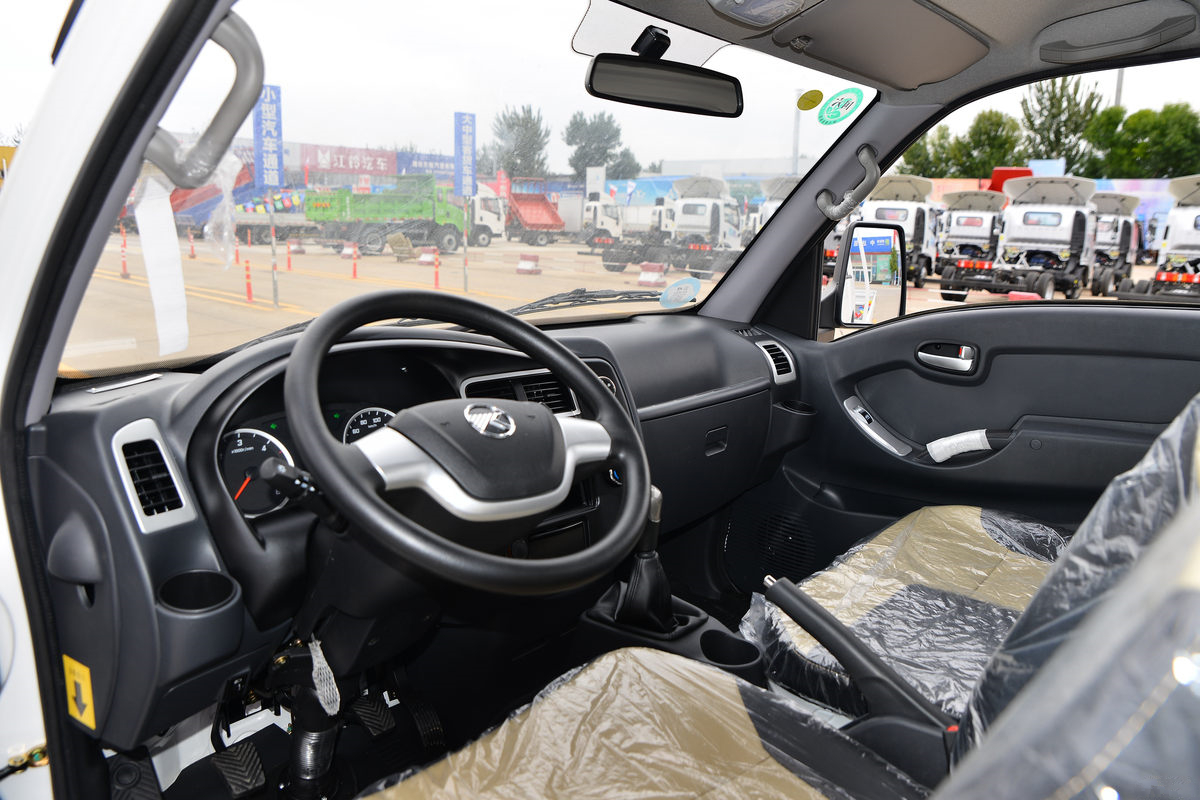

Cabin

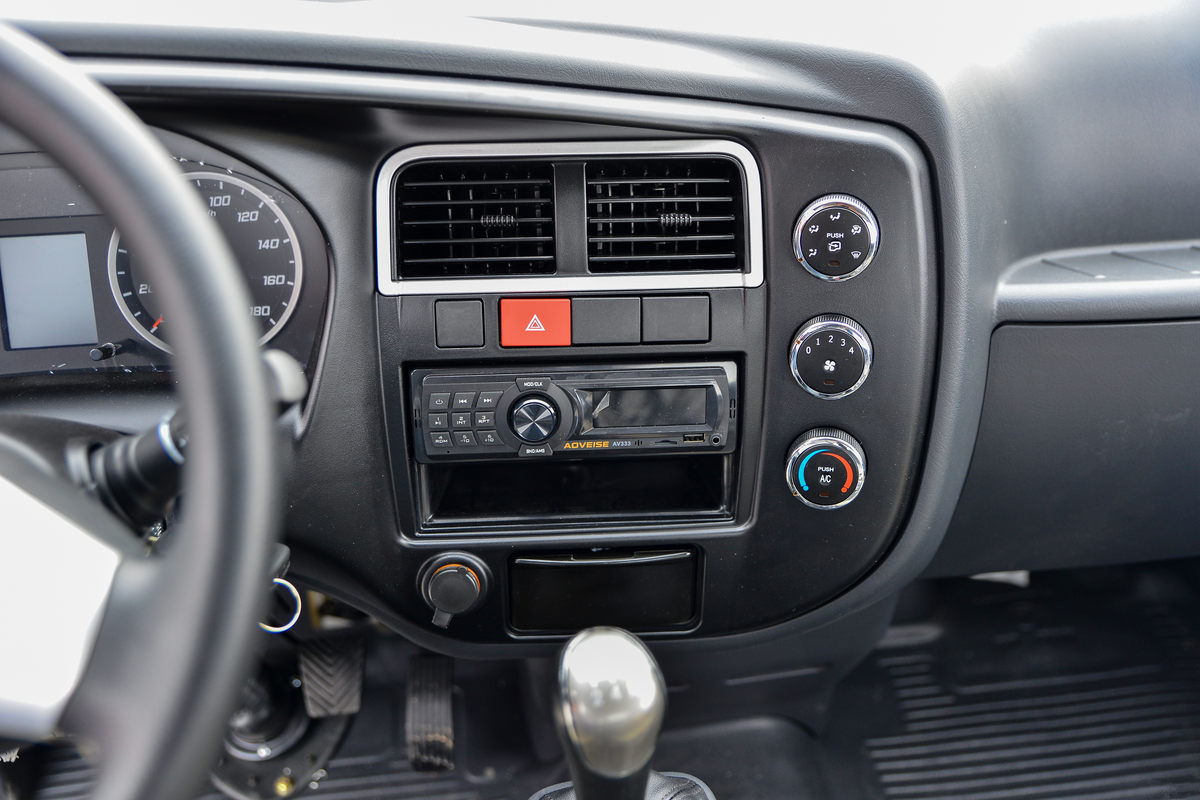

X1,single row,metallic painting,sedan configuration,2 passengers allowable,adjustable steering wheel,

power-assisted clutch,radio,USB+MP3,central lock,

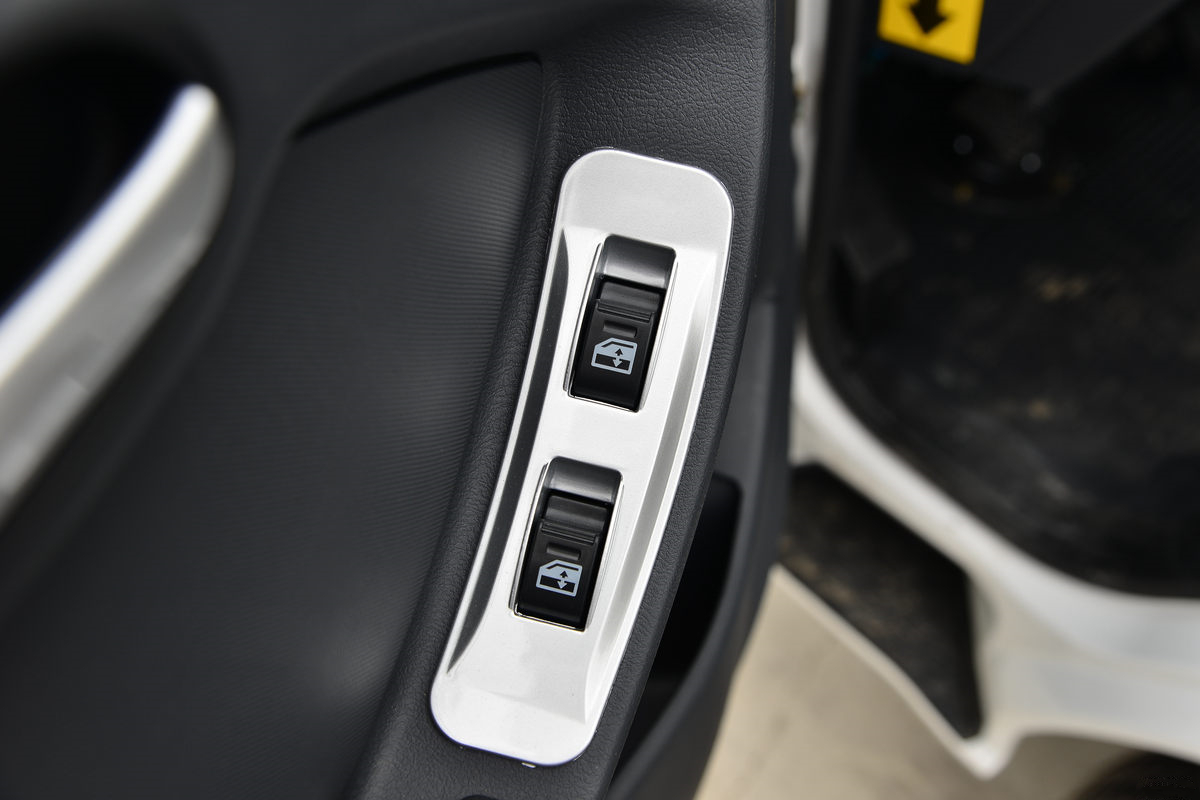

electric window,safety belt,A/C provided
