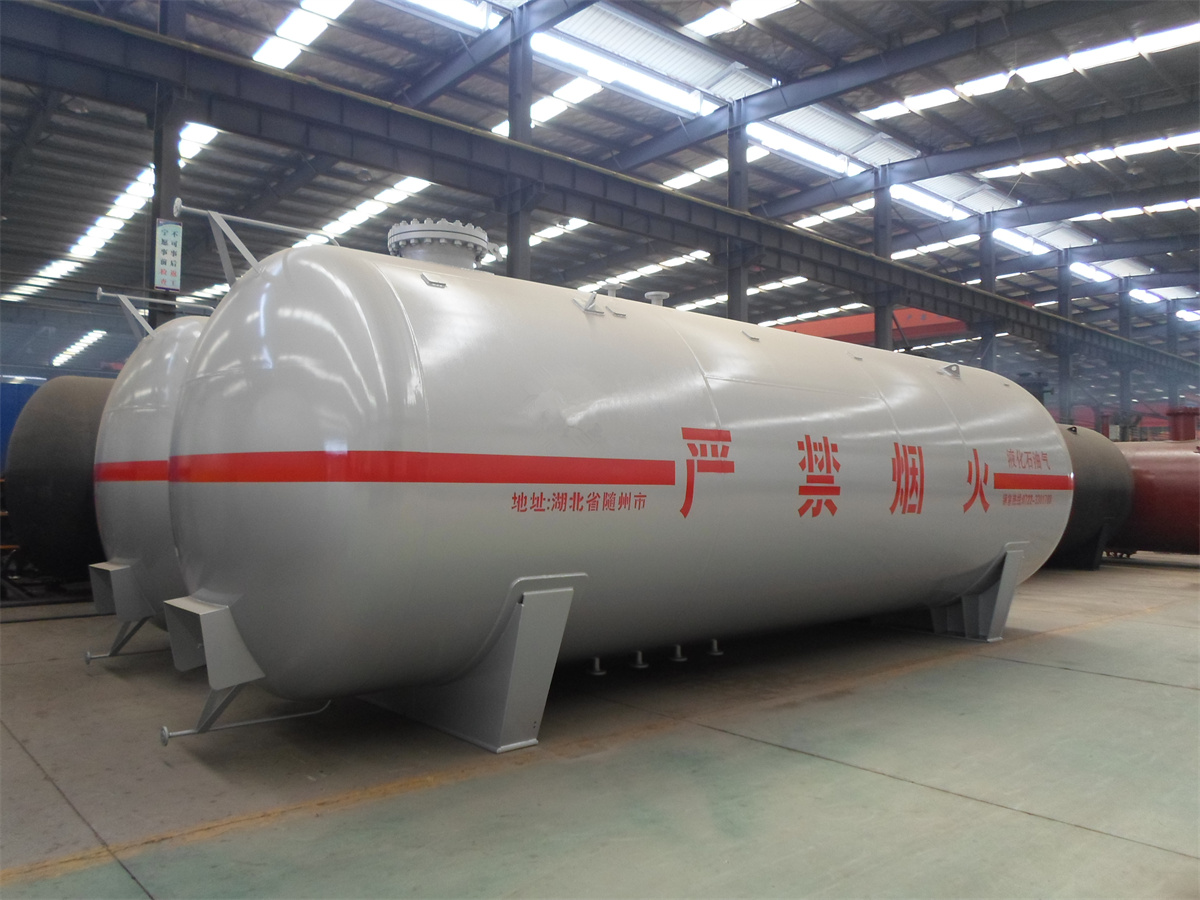

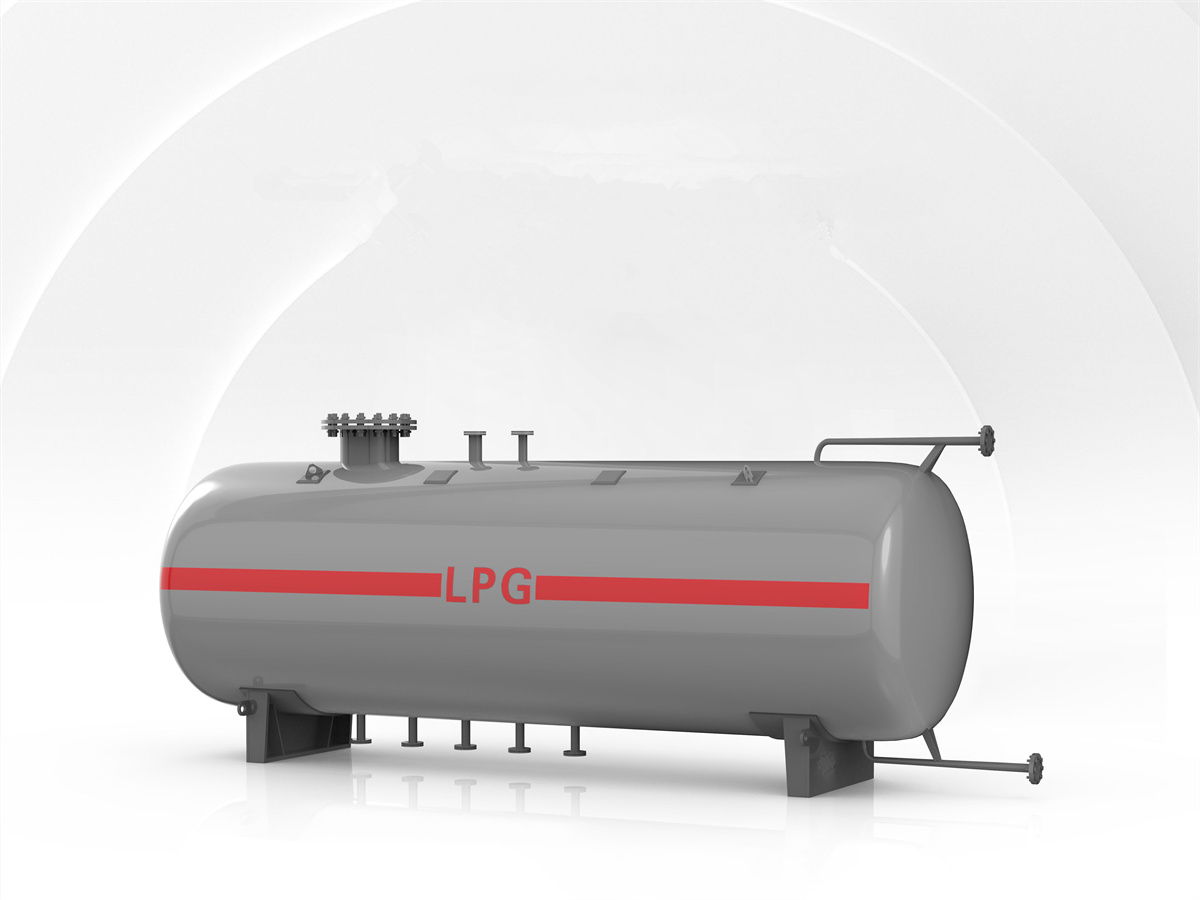

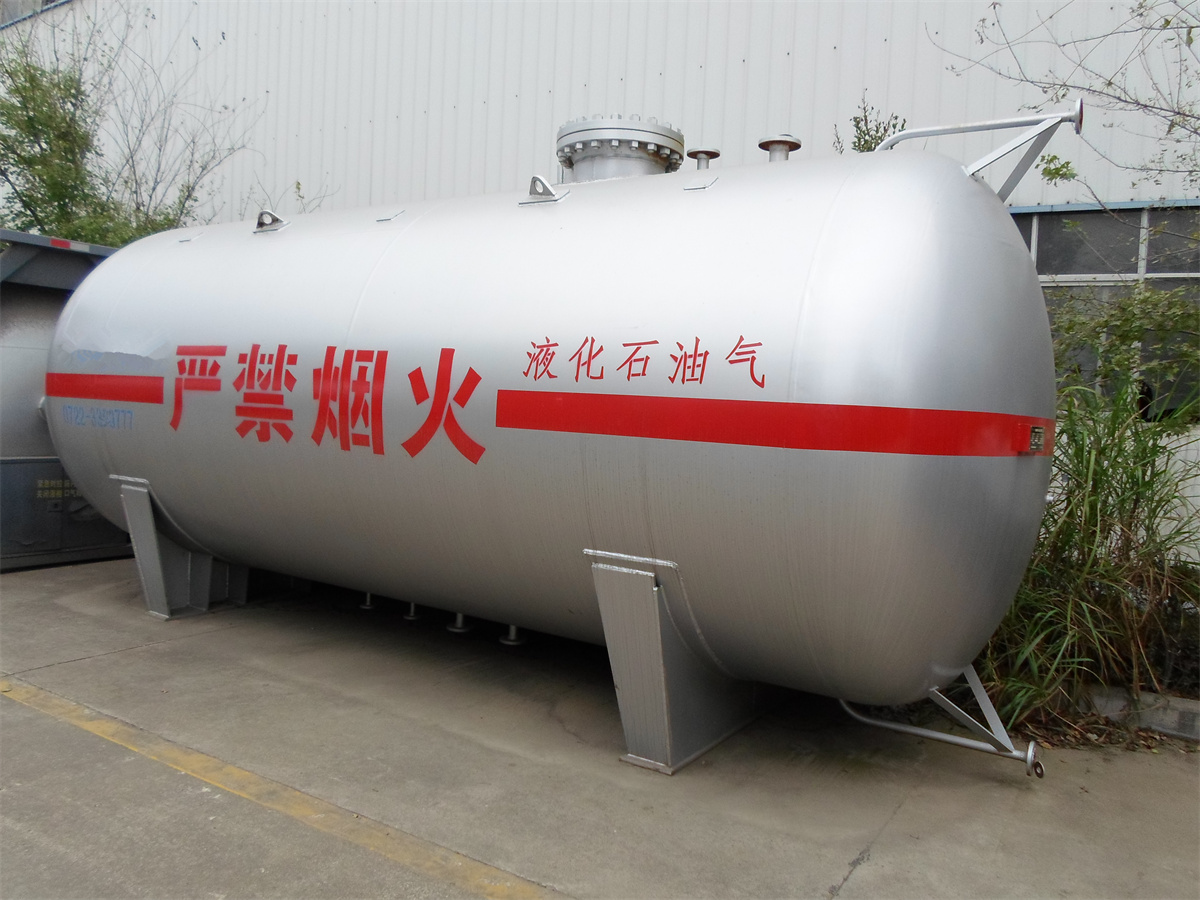

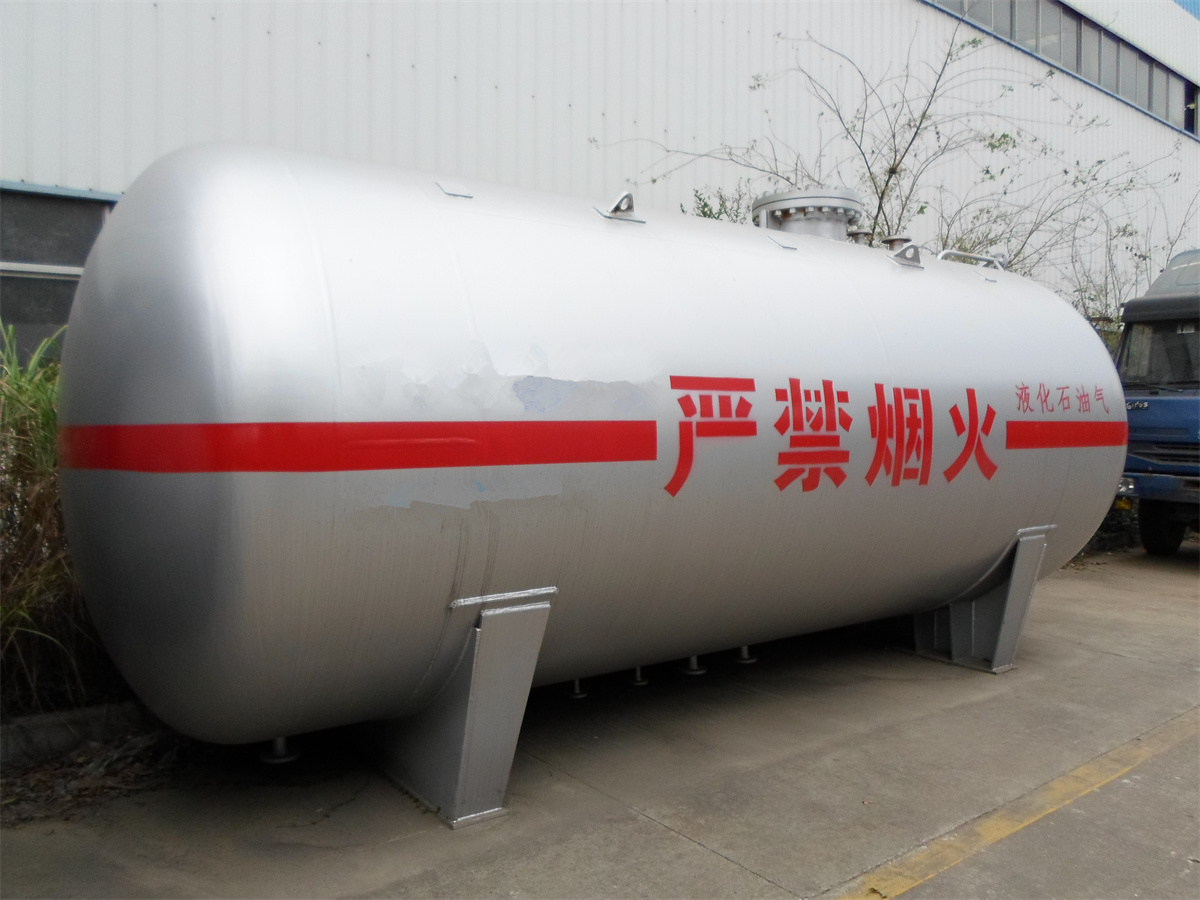

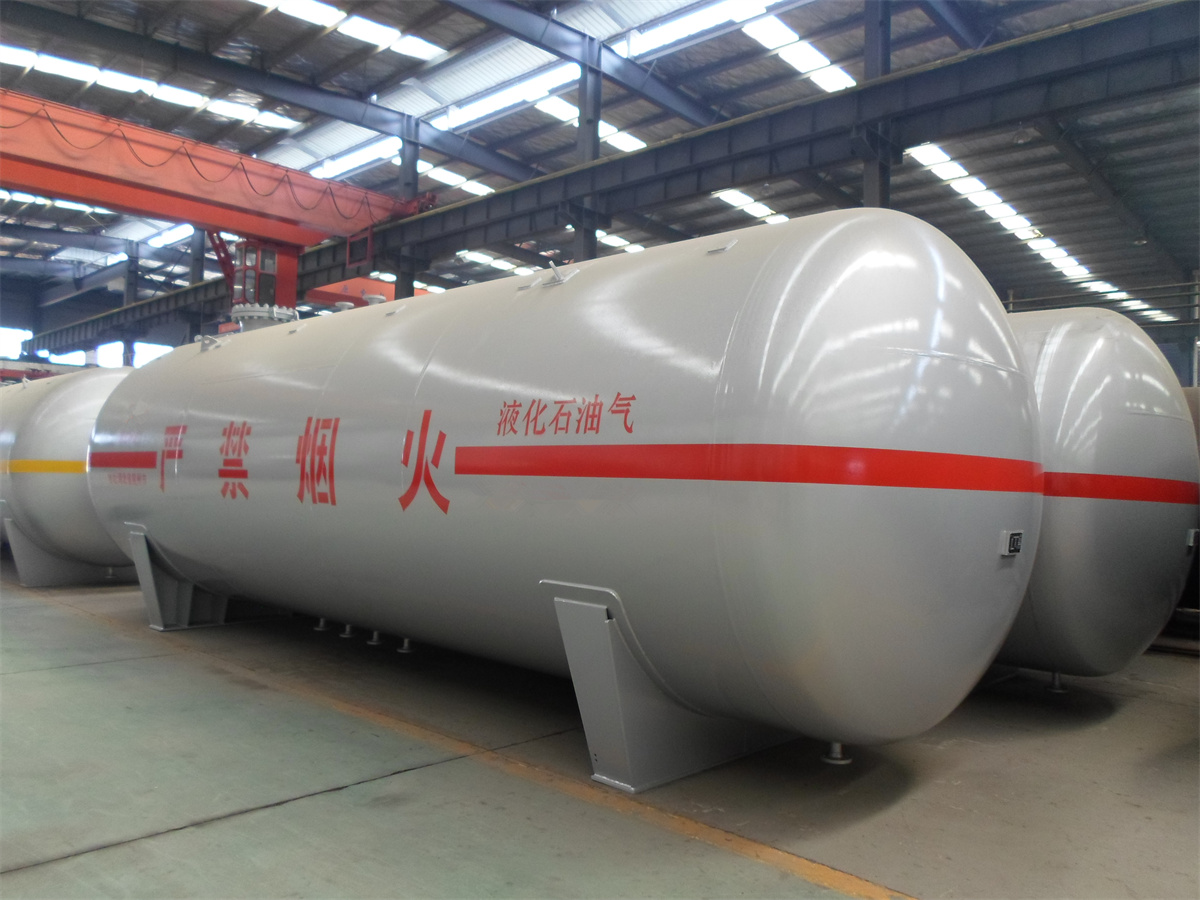

LPG Storage Tank 20CBM

Overall Dimensions

6724*2024*2614 mm

Transport/Storage materials

LPG（Propane）

Capacity

20000L

Main tank materials

Q345R

Tare Weight （Kgs）

5050

Max Fluid Weight（Kgs）

10080

Total Mass（Kgs）

15130

Shell body thickness

12mm

Head thickness

12mm

Tank shape

Round

Shell Finish

Carbon steel tank: with 1 anti-rust, 1 base coat and 1 finishing coat. The color can be customized

Design Temp

-20℃~＋50℃

Design Pressure

1.8 MPa

Water press test

2.34MPa

Fluid Density

420-500Kg/ m³

Air-leak test

1.8MPa

Manhole Cover

φ450mm, on top of the tank

Safety valve

1×DN80

Emergency cutoff valve

2 piece, 1×DN25 ball valve for vapor inlet, 1×DN50 ball valve for liquid inlet
