ZZ1317N466GB1R

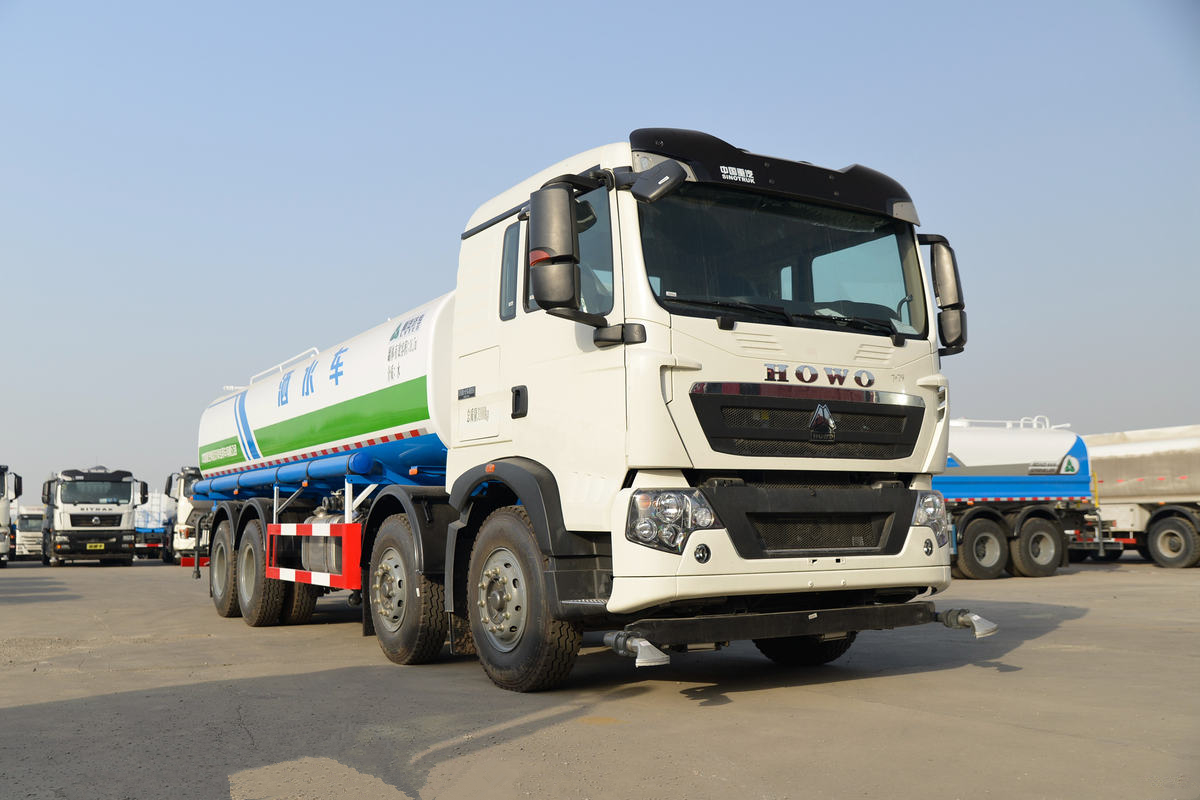

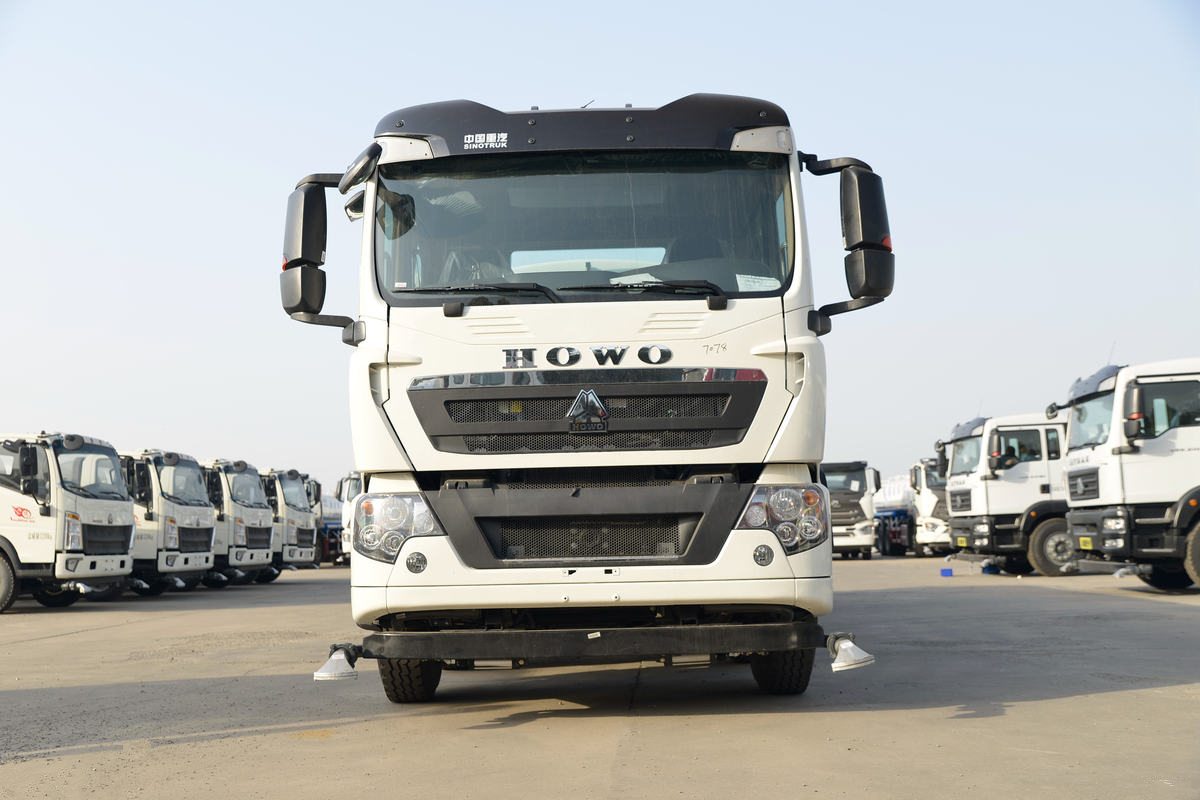

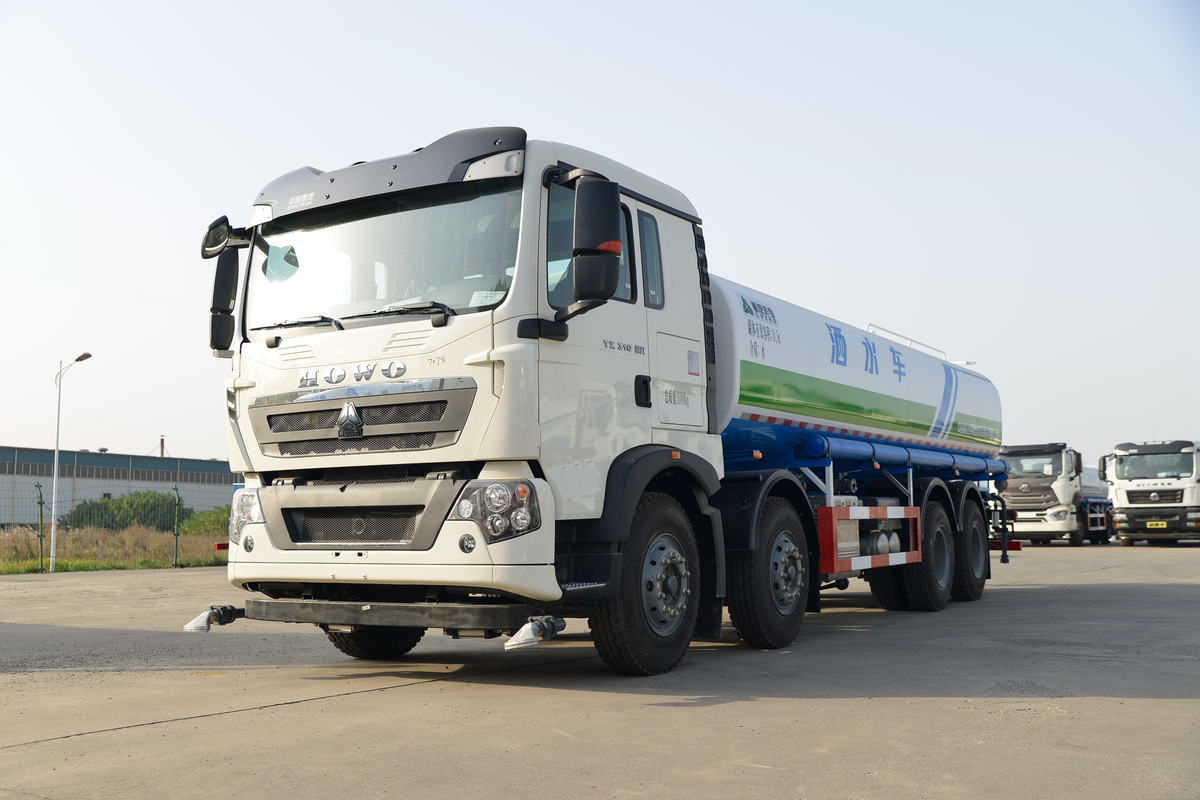

HOWO TX
8705909990

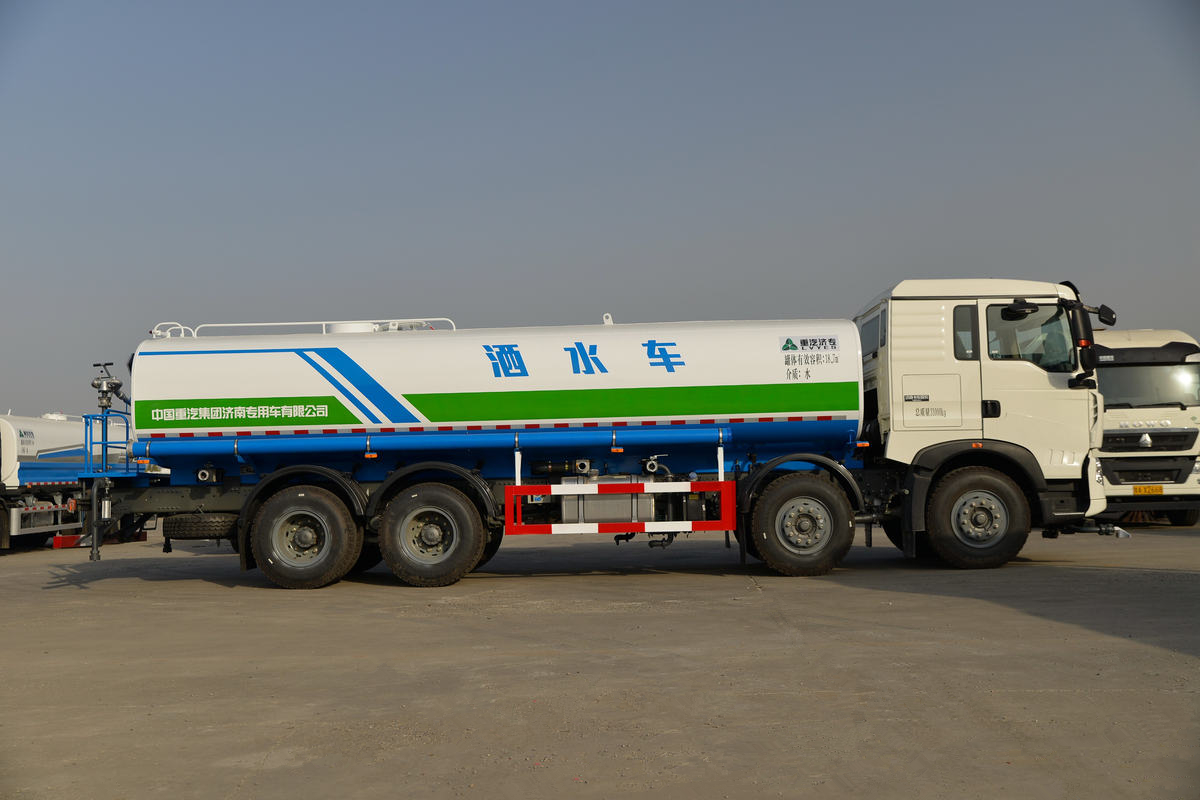

Complete vehicle | ||
Chassis model | ZZ1317N466GB1R | |
Drive type | 8X4 | |
Wheel base(mm) | 1800+4600+1350 | |
Overall dimension(mm) | 12000×2550×3450 | |
Curb weight(Kg) | 13000 | |

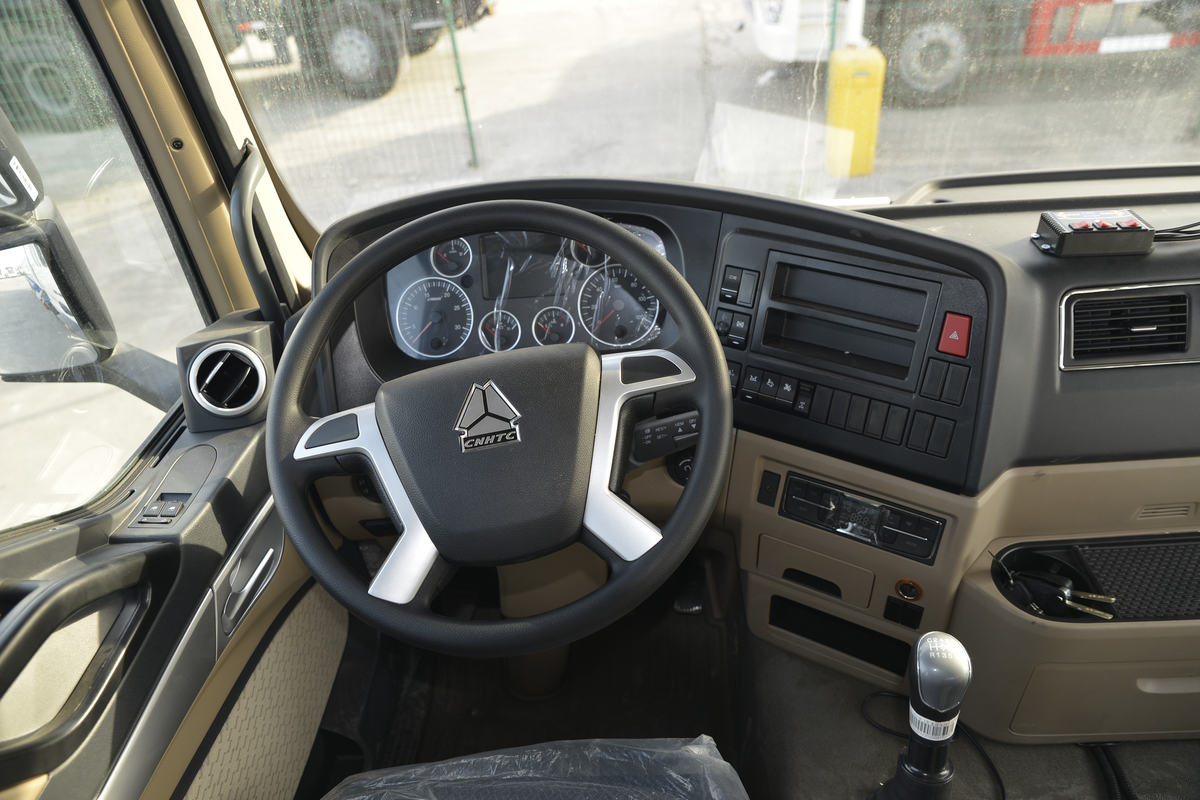

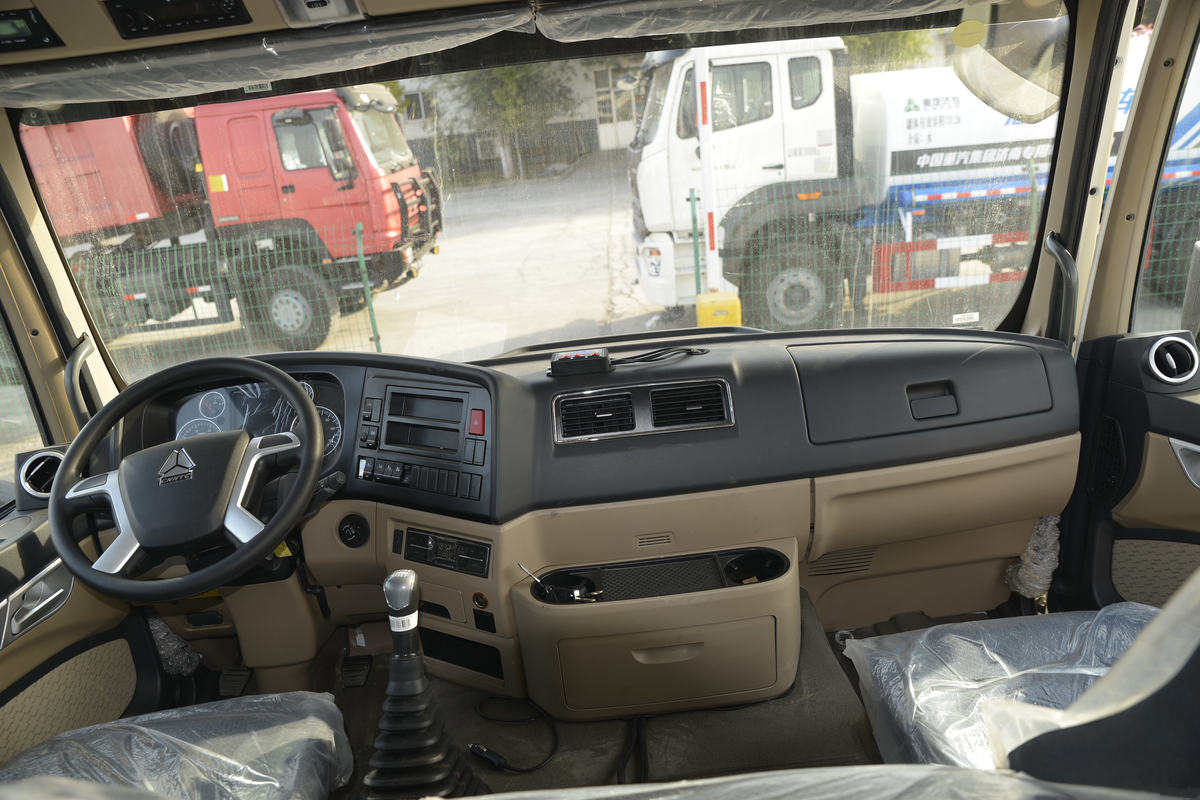

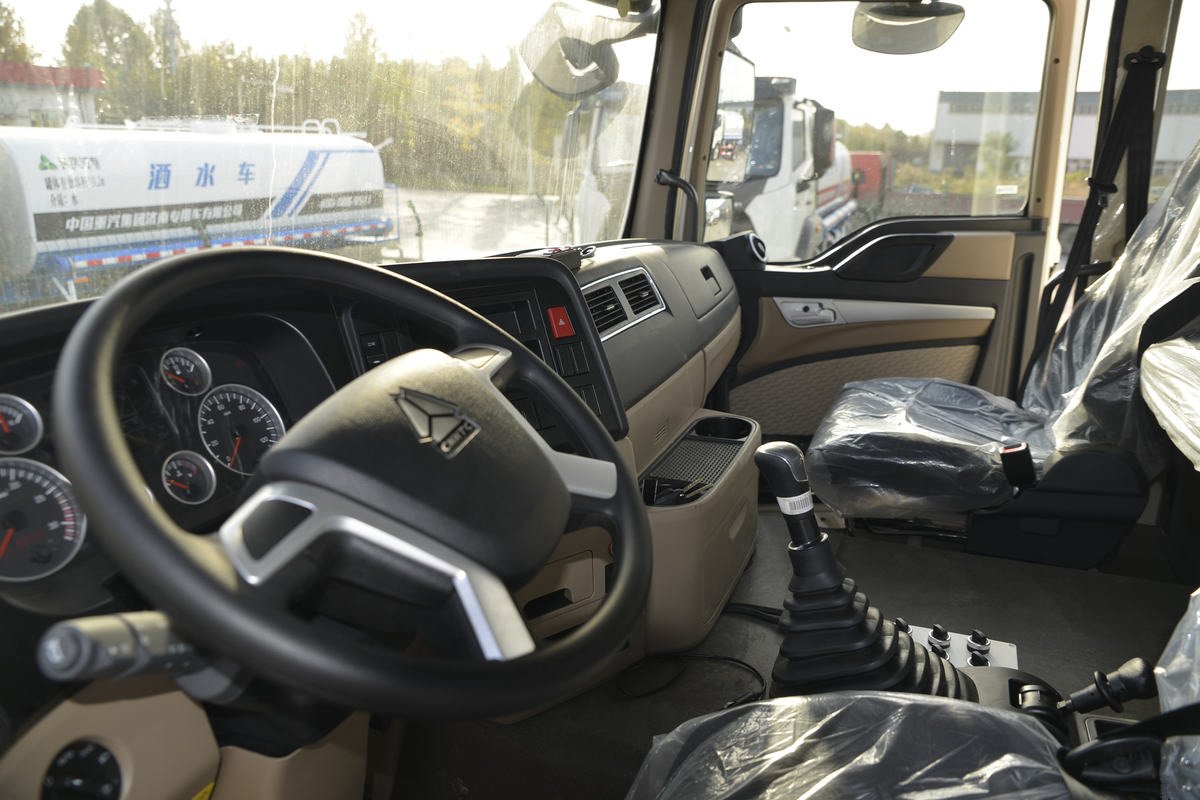

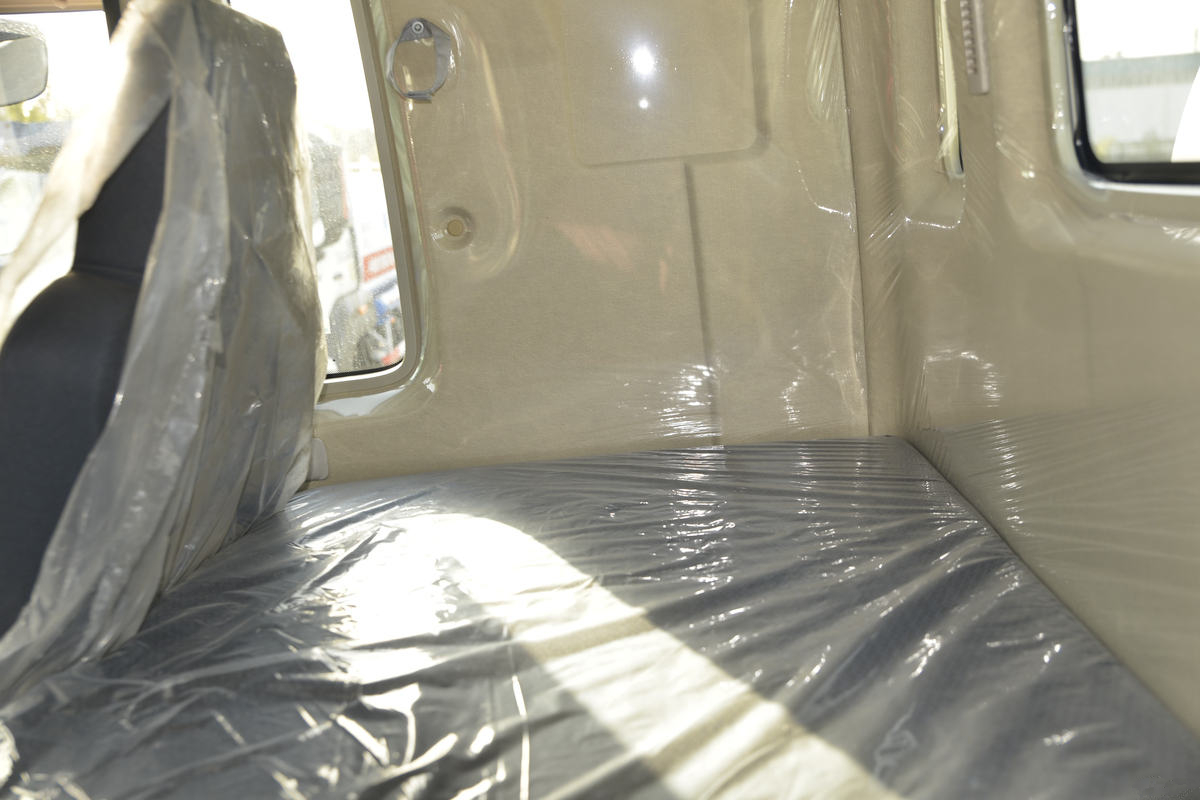

Cab | TX-F cabin,flat roof,one and half rows cabin,single sleeper,luxury configuration,A/C,central lock,electric windows,reverse buzzer | |
Engine | Model | WD615.47 |
Max.output (kw/HP) | 273/371 | |
Max.torque (N•m) | 1500 @1100～1600 rpm | |
Displacement (ml) | 9726 | |
Emission standard | Euro 2 | |
Gear box | HW19710,manual,10 forward gears ＆ 2 reverse gears | |

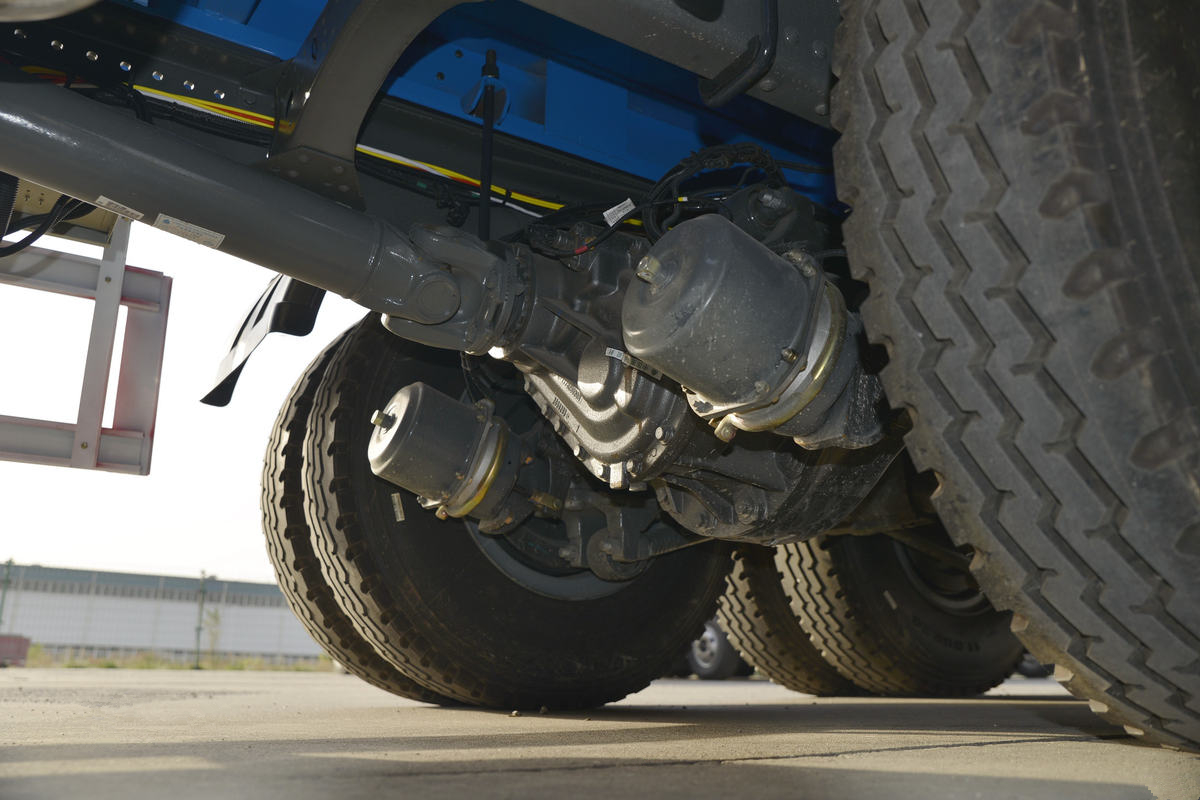

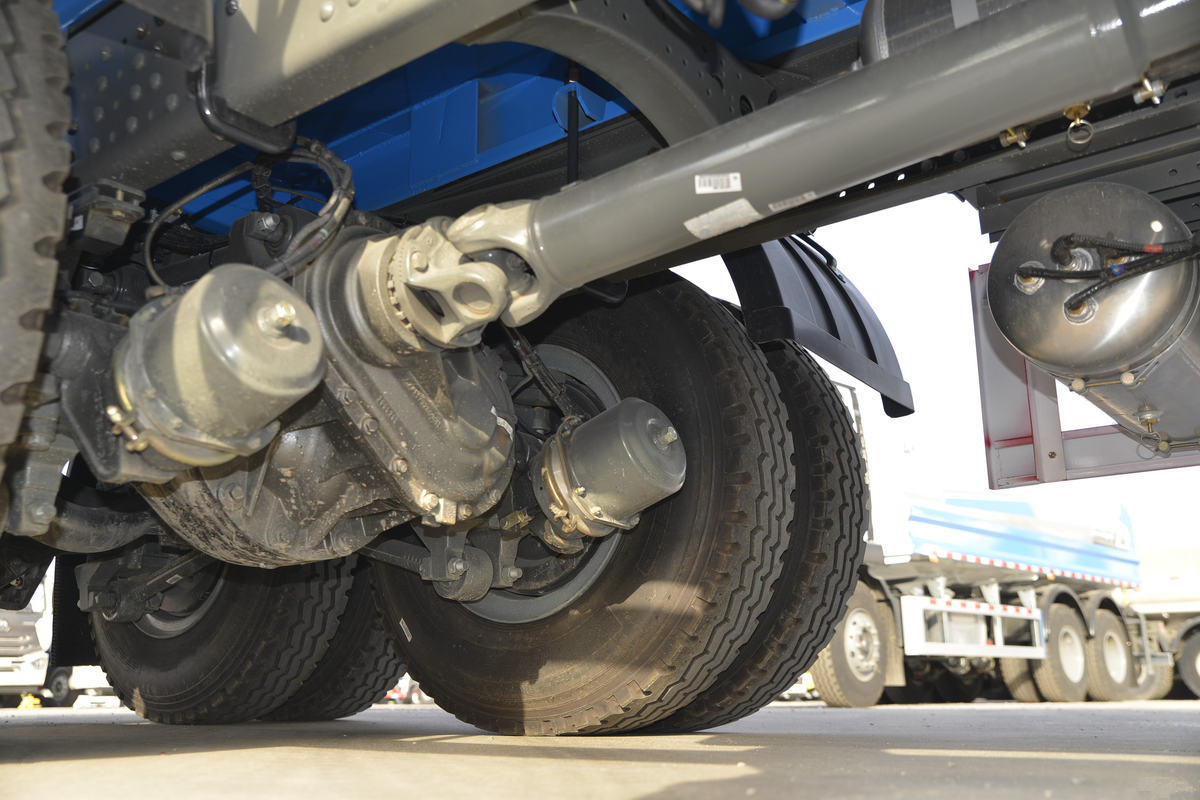

Driving axle | MCX16ZG(Tandem),load capacity 16000KGS *2 | |
Front axle | VGD95,load capacity 9500KGS *2 | |
Steering gear | Right/Left hand drive,power steering | |

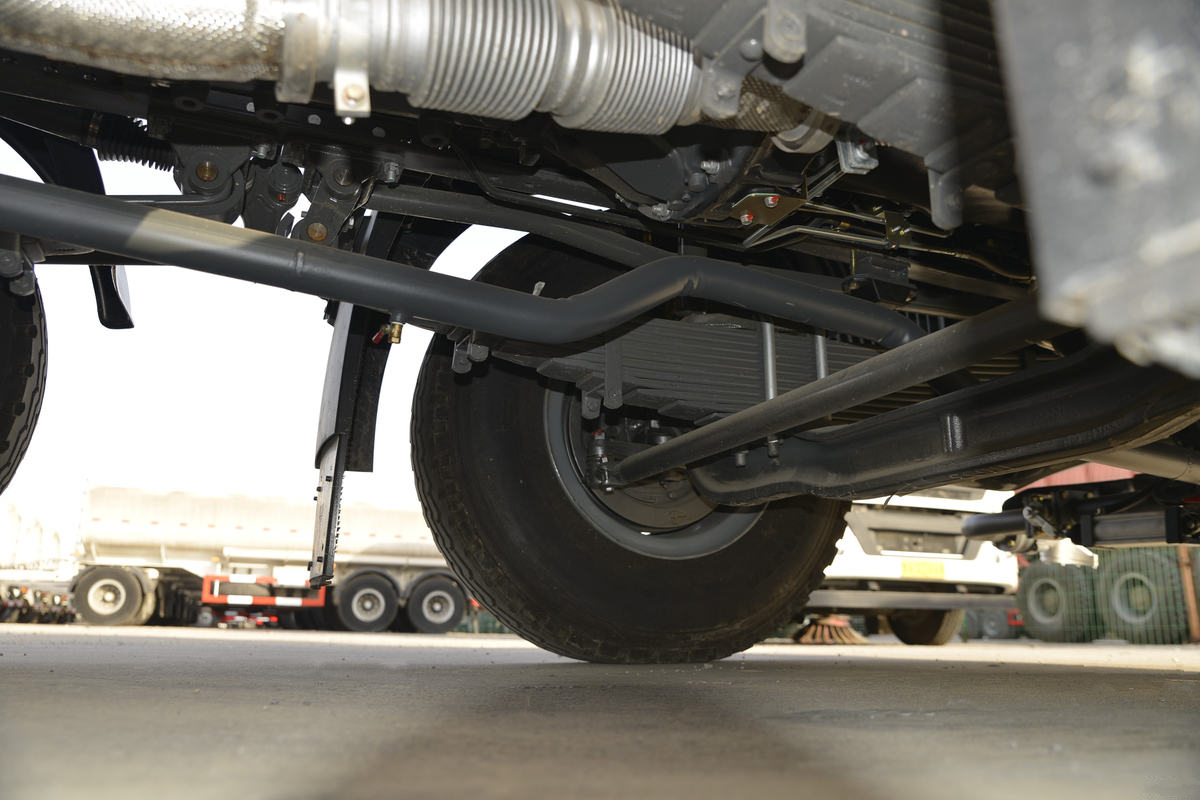

Chassis suspension | New stabilizing suspension | |
F/R leaf spring quantity | 11/11/12 | |
Air intake system | Engineering version intake system (Oil Filter)+Common air filter | |
Inner trimming | ||
Standard configuration | Mechanical suspension seat | |
Lumbar support to the driver | ||
Electrical system | ||
Standard configuration | CAN bus intellectual electronic control system | |
New battery box | ||
Start/stop device under the vehicle | ||
Safety | ||
Standard configuration | Three points safety belt | |
Pneumatic drum brake with ABS | ||
Comfortable accessories | ||
Cab four points full floating suspension | Front and rear coil spring | |
Standard configuration | Cab anti-rolling stabilizing device | |
Hand accelerator | ||
Adjustable steering wheel | ||
Others | ||
Fuel tank | Square-400L | |
Standard configuration | Big tool box | |
Reinforced rim | ||
Three in one lock (ignition switch, door and fuel tank) | ||

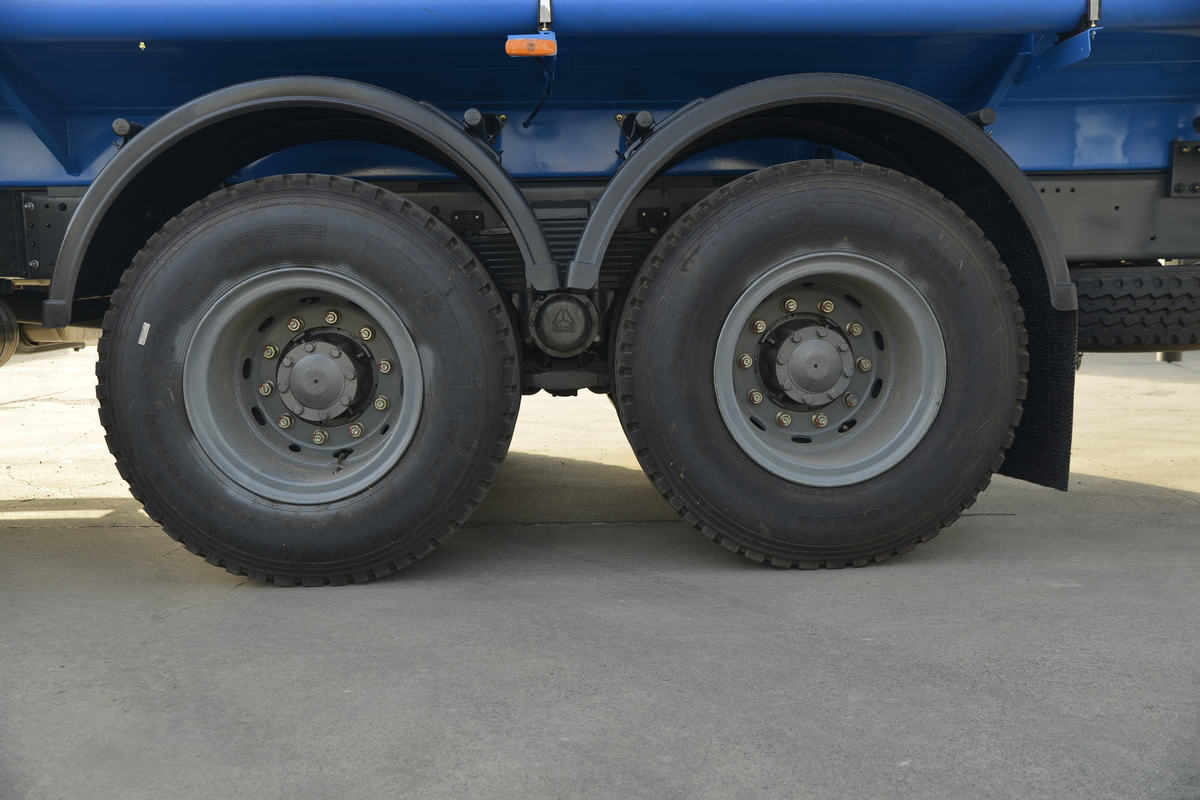

Type specification | 12.00R20 | |
Number of tires | 12+1 | |

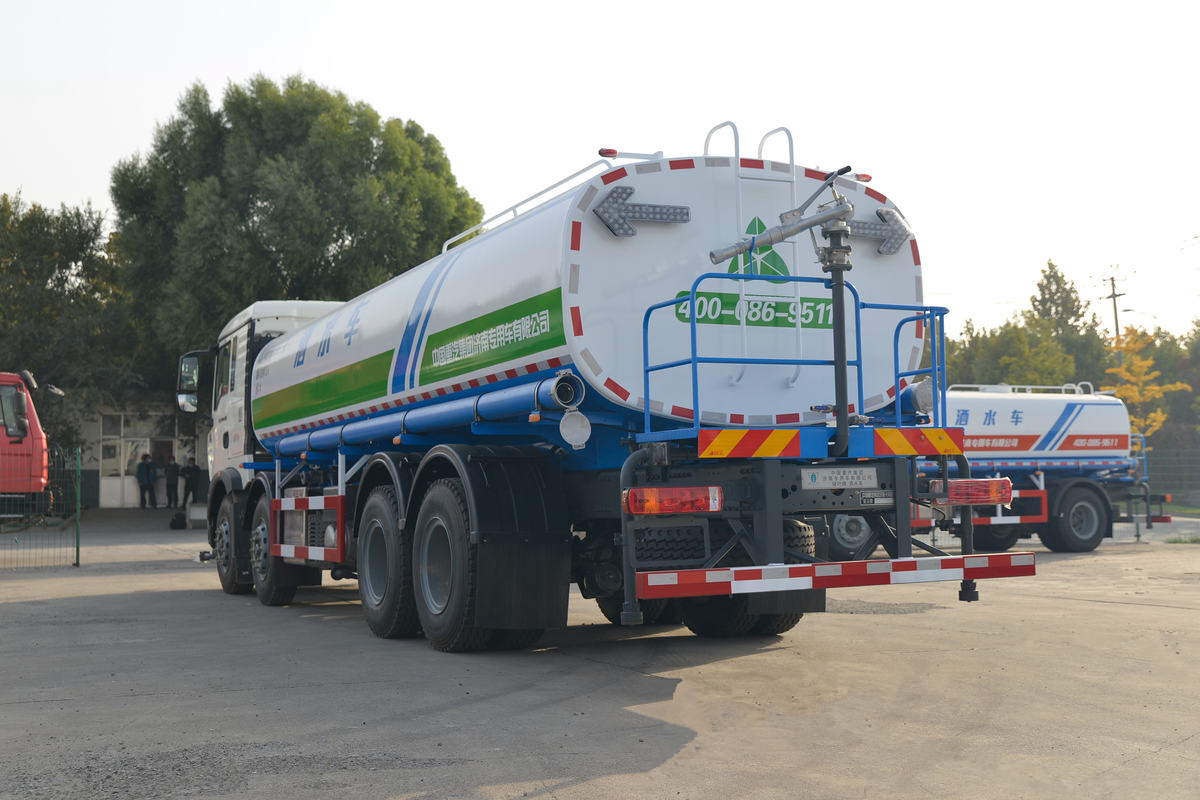

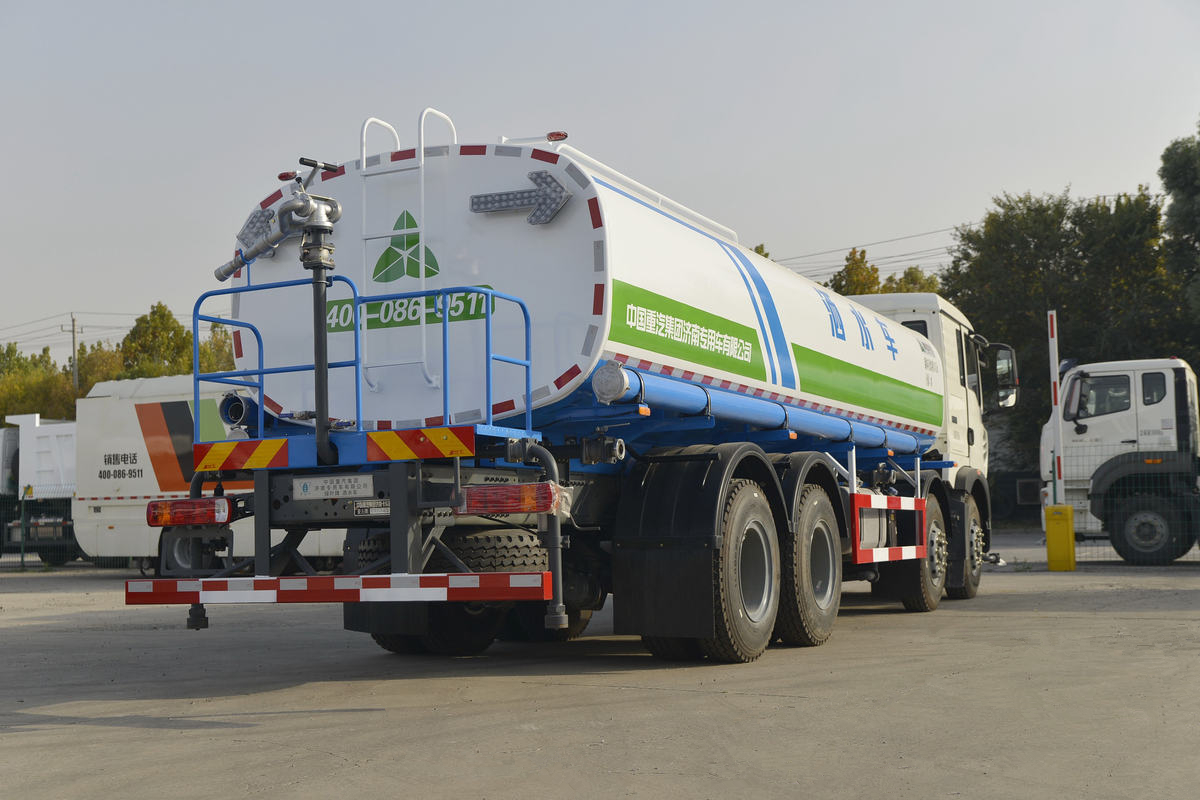

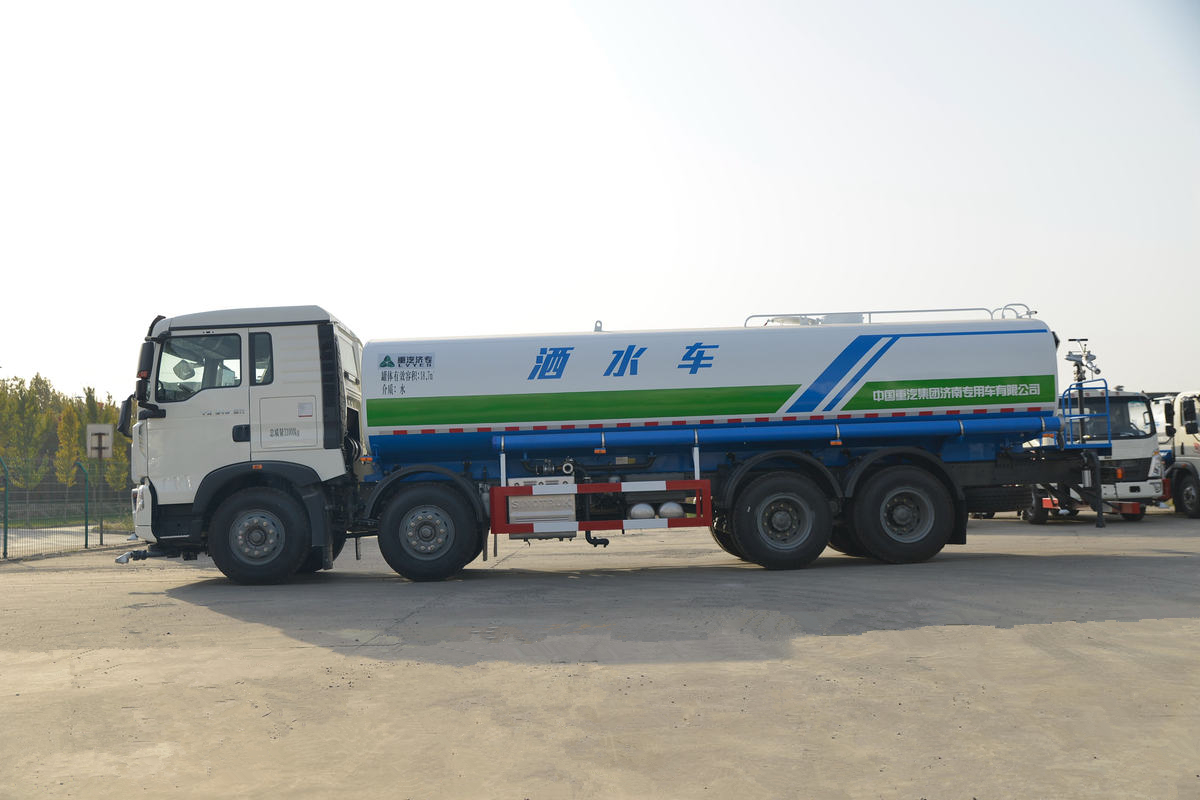

Water tank | ||
Capacity | 25000Liters | |
Material and thickness | Carbon steel Q235B,tank body 4mm,end dish 5mm | |

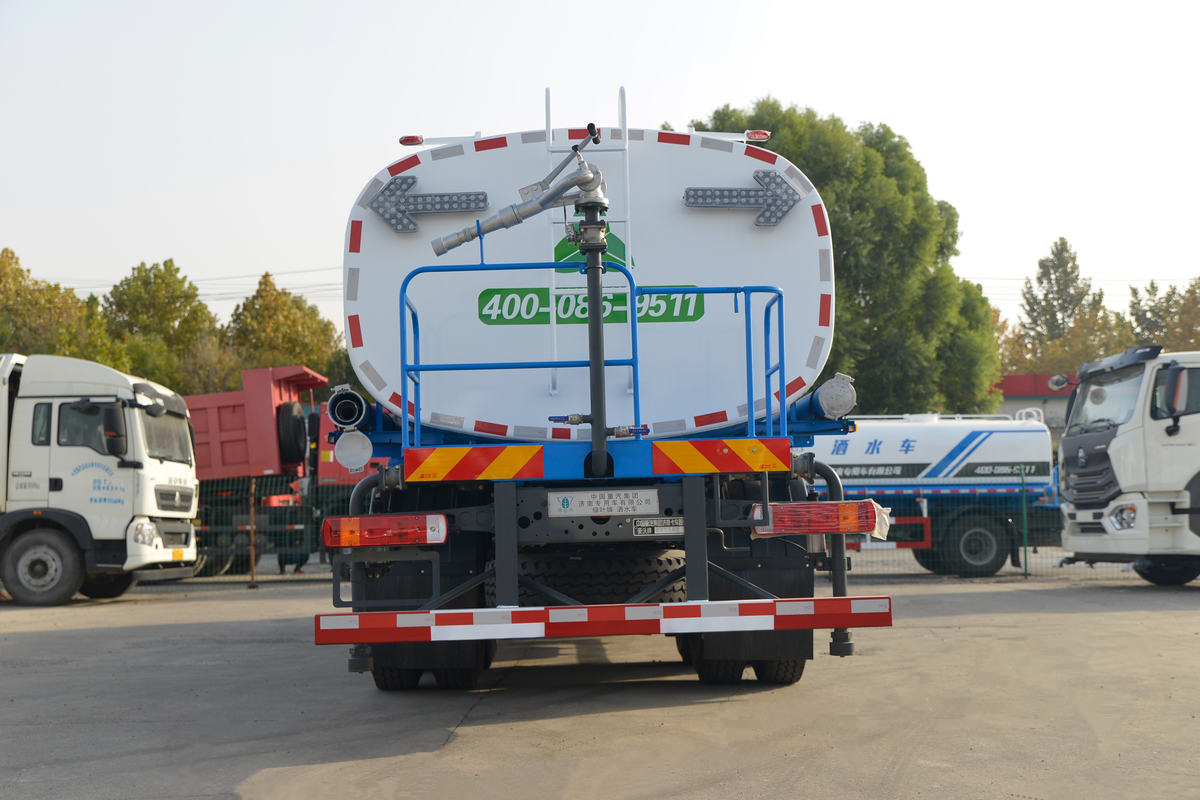

Standard configuration | Water pump powered by PTO,front flush,rear sprinkle, side spray,rear work platform,water cannon,water level metre,fire fighting pipe interface,2 pcs of suction pipe (3m) | |
